Overview
The TeraFlex 1204800 is a rear upper shock bar pin eliminator kit, installed in place of the bar pin and supplied with mounts and hardware. It fits Jeep Cherokee XJ, Wrangler LJ and Wrangler TJ vehicles in the trims shown below, and offers rear upper shock options without a bar pin.
With the bar pin eliminated, a broken pin no longer needs replacing at this location. The kit can change shock length by up to one inch, so verify shock length before fitting new shocks.
Key features
- Rear upper position
- Installs in place of the bar pin
- Mounts and hardware included
- Removes the need for a replacement bar pin at this position
- Can change shock length by up to one inch
Choosing rear upper shocks
Rear upper shocks control how the axle moves over bumps and help keep the suspension steady under load. When the bar pin is eliminated, the shock mount carries more of that job, so it needs to be snug, square and free of cracks before a shock is bolted in. Off the road, the mount takes repeated hits from rocks and ruts, which makes it the first place to look after a trail day.
Before buying replacement shocks, measure the current unit at full compression and full extension and compare those lengths with the new one. A change in mounting geometry can alter how much travel the shock has, so a shock that worked before may bind or bottom out. Check the eye style and bushing size as well, since adapters add parts and may need their own fasteners.
- Measure the current shock before ordering replacements
- Inspect the rear upper mount for cracks and bending
- Re-torque mount hardware after the first few trail runs
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 1204800 |
| UPC | 843885020271 |
| Position | Rear upper |
| Included | Mounts and hardware |
| Shock length effect | Up to one inch change |
| Installation | In place of bar pin |
Vehicle fitment
It fits the 1997–2001 Jeep Cherokee (XJ) in Classic, Country, Limited, SE and Sport trims, the 2004–2006 Jeep Wrangler (LJ) Unlimited and Unlimited Rubicon, and the 1997–2006 Jeep Wrangler (TJ) in 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X trims.
Grand Cherokee ZJ is not covered, and later Wrangler generations do not fit. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
Installation replaces the bar pin position at the rear upper mount, using the included hardware. Support the rear axle on stands before working around the shock mounts.

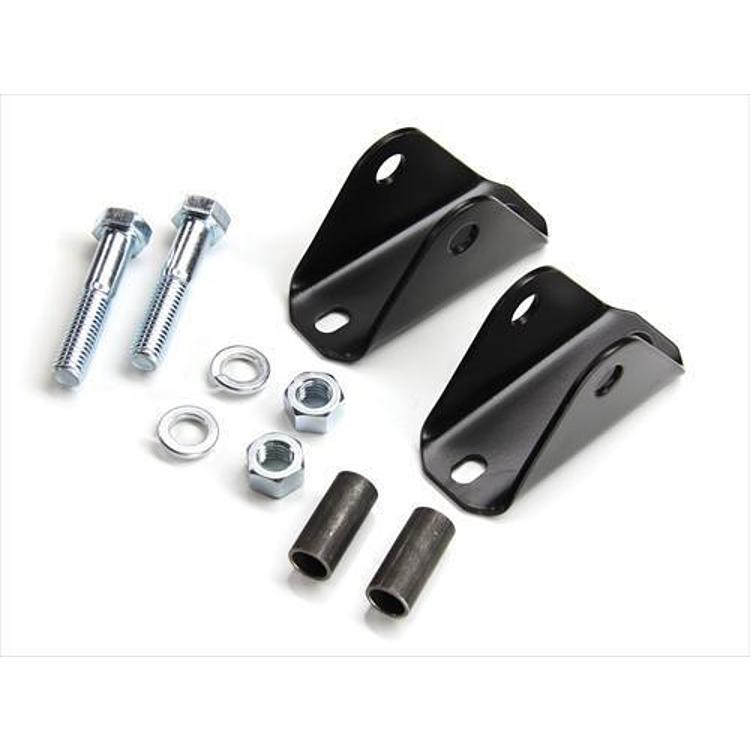

What’s included
Mounts and hardware for the rear upper bar pin position are included.
Not included: the shocks themselves.
