Poison Spyder Upper Coil Over Mounts – 14-51-110

Poison Spyder Customs

Shop Poison Spyder Customs Shock Mounts on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear upper coilover mounts in bare steel for builder projects, designed for Daddy Longlegs
  • Made from 3/16-inch plate steel for shocks with a 2-inch diameter body
  • Upper tabs hold the shock bolt in double shear; welding required
  • Builder component with no installation instructions; UPC 614901736335

Description

Overview

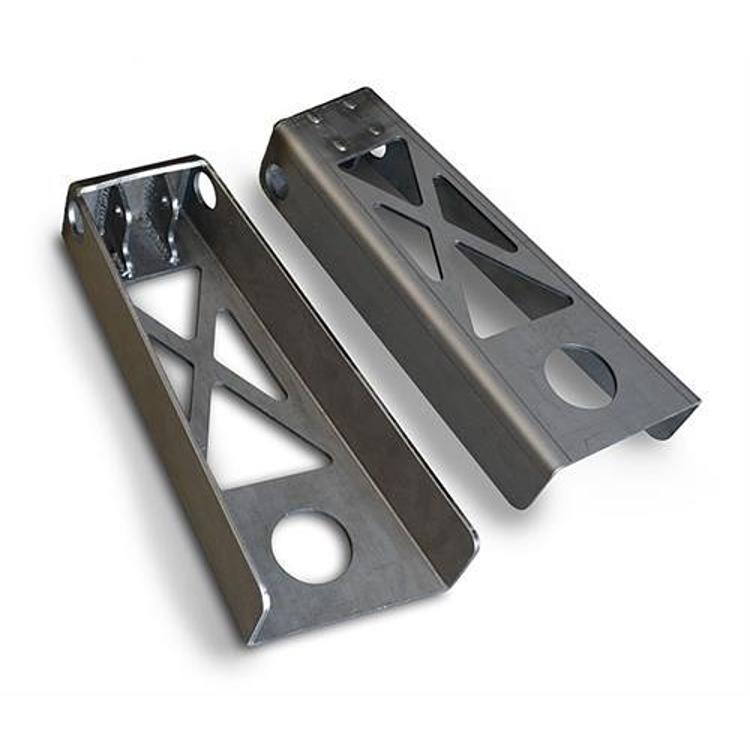

The 14-51-110 is a set of rear upper coilover mounts in bare steel. It was originally designed for the Daddy Longlegs build and has been used on several other TJ and LJ builds. The mounts are CNC laser cut and brake-formed from 3/16-inch plate steel, and they accept coilover shocks with a 2-inch diameter shock body.

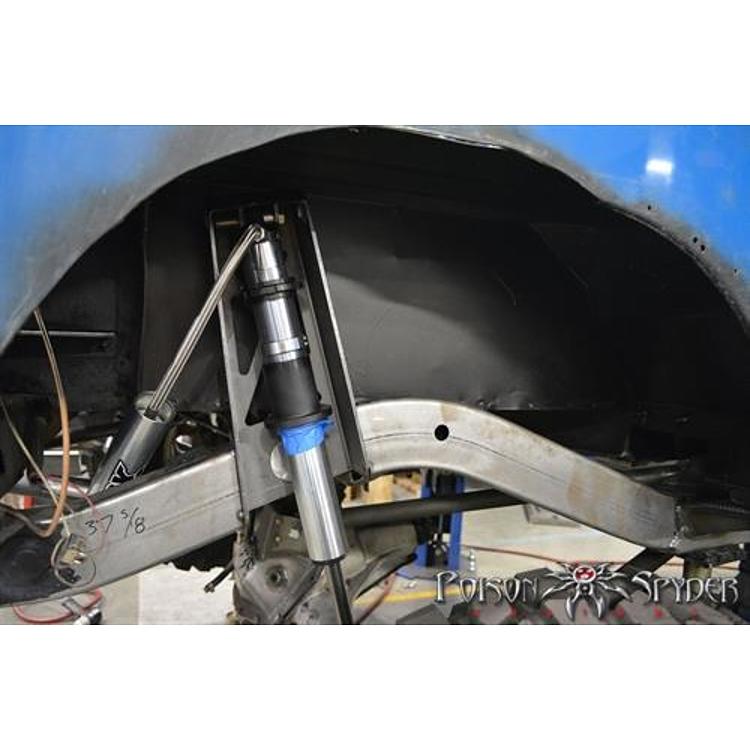

The upper tabs hold the shock bolt in double shear. Welding is required. These are builder components rather than a bolt-on kit, and no installation instructions are included. They are intended for owners who can design and fabricate their own coilover conversion.

The mounts are not a complete coilover system. The lower coilover mounts on the axle and the suspension link mounts must be designed and built by the owner. Poison Spyder recommends the project only to those who are comfortable observing, measuring and fabricating and who understand how frame and suspension parts fit together.

These are builder parts for a coilover conversion, so check the frame, axle and shock geometry for your own vehicle before welding.

Key features

  • Rear upper mount for coilover shocks with a 2-inch diameter body
  • CNC laser cut and brake-formed 3/16-inch plate steel
  • Upper tabs hold the shock bolt in double shear
  • Bare steel, welding required
  • Builder component with no installation instructions

Planning a coilover conversion

A rear upper mount is only one link in a coilover conversion. The shock must line up with the mount, the lower mount on the axle and the suspension links, so the whole geometry should be sketched before any metal is cut. Measure the shock length at full extension and full compression, and check that the mount does not hit the body or the spare tire area.

Welding steel mounts on a frame changes how the chassis carries load, so the weld quality matters. Clean the surfaces to bare metal, use the right filler, and let the parts cool without stressing them. After the weld is complete, check the alignment again before the shock is installed.

  • Sketch the full shock geometry before cutting
  • Clean weld areas to bare metal
  • Check alignment again after welding

Specifications

Brand Poison Spyder Customs
Part number 14-51-110
UPC 614901736335
Position Rear upper mount
Material 3/16-inch plate steel
Shock body 2-inch diameter
Finish Bare steel
Installation type Welding required
Instructions None included

Vehicle fitment

They are builder components and are not fitted to a specific model or year. Check the frame and axle for your Jeep before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

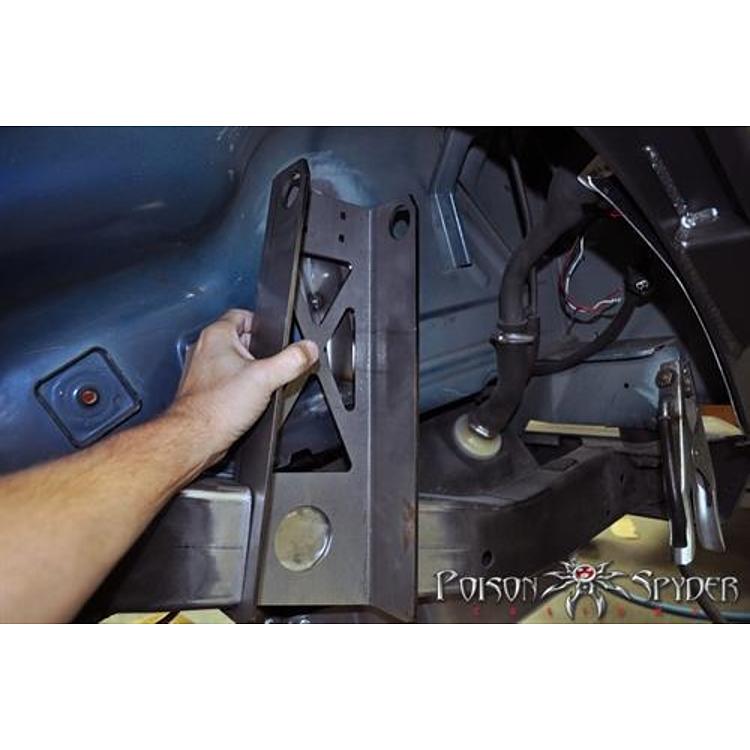

The mounts require welding. No installation instructions are included, so the installer must design the mounting location, the lower coilover mounts on the axle and the suspension link mounts. Poison Spyder recommends this only for experienced fabricators, because frame and suspension parts must line up correctly.

What’s included

One rear upper coilover mount in bare steel.

Not included: the lower coilover mounts on the axle, the suspension link mounts, the shocks, the springs and any instructions.

SKU: PSC14-51-110 Category:

Specification

Shipping weight 18.00 lbs
Package dimensions 16.00 × 12.00 × 4.00 in
brands

Questions & Answers

Is the 14-51-110 a bolt-on coilover kit?

No. It is a builder component that requires welding. Poison Spyder says no installation instructions are included, and the owner must design the lower coilover mounts and the suspension link mounts.

What shock size does the mount accept?

The mount accepts coilover shocks with a 2-inch diameter shock body. The upper tabs hold the shock bolt in double shear.

Do the mounts fit a TJ or LJ?

The mounts have been used on several TJ and LJ builds. Because they are builder components, check the frame and axle for your Jeep before welding.

What material are the mounts made from?

They are CNC laser cut and brake-formed from 3/16-inch plate steel and ship bare, so the owner must finish them after welding.

What else does a coilover conversion need besides the upper mounts?

A complete setup also needs lower coilover mounts on the axle, suspension link mounts, shocks and springs. Plan the geometry of all parts together, since the upper mount position depends on where the lower mounts and links end up.
