Overview

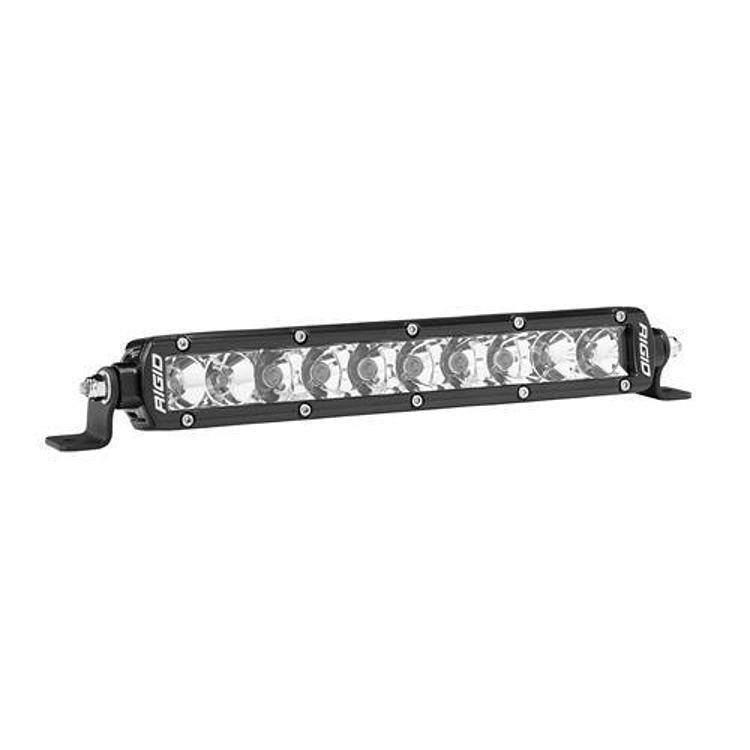

The SR-Series Single Row 10 Deg. Spot/20 Deg. Flood Combo LED Light is a 10-inch single-row light bar with a combination beam. The hybrid optics give a 10-degree spot for distance and a 20-degree flood for the area close to the vehicle, and the patented optics project almost 1000 feet of light.
The bar uses 10 white LEDs and runs on a 7 to 36 VDC input. It is an ultra low power design with a 50,000-hour life, compared with about 1,000 hours for halogen and 5,000 hours for xenon. It starts instantly, produces no hot spots and has no bouncing beams. It is rated IP68.
The kit comes as two pieces, with the bar, a plug-and-play wiring harness and switch, and a cast bracket. The bar mounts on the bracket, and the unbreakable polycarbonate and durable polyester powder-coat finish are part of the build.
Key features
- 10-degree spot and 20-degree flood combo beam
- Patented hybrid optics
- 10 white LEDs in a 10-inch bar
- Input from 7 to 36 VDC
- IP68 rating
- Plug-and-play harness, switch and cast bracket
Keeping the bar secure
A light bar adds weight and wind load to the bumper or roof, so the bracket needs to be solid and the fasteners checked after the first few drives. Look for play in the bracket and loose nuts, since vibration on rough ground can work them free over time. Route the cable so it cannot rub on sharp edges or swing into moving parts.
Water and dust are the main concerns for a bar used off road. Keep the connections dry, and wipe the bar after muddy trips so grit does not build up around the seals. A relay close to the battery keeps the switch from carrying the full load and helps the wiring stay cooler.
- Check bracket fasteners after the first drives
- Route cable away from sharp edges
- Keep connectors dry and clean
Specifications
| Brand | Rigid Industries |
|---|---|
| UPC | 849774029813 |
| Series | SR-Series Single Row |
| Light type | LED light bar, sold as a 2-piece kit |
| Size | 10 inch |
| LED count | 10 white LEDs |
| Beam pattern | Combo: 10-degree spot, 20-degree flood |
| Input voltage | 7 to 36 VDC |
| Rated life | 50,000 hours |
| Ingress rating | IP68 |
| Mounting | Bracket |
| Finish | Black, polyester powder coat |
Vehicle fitment
The combo bar is designed as a universal fit rather than for one specific vehicle. The cast bracket and harness let the owner set the 10-inch bar where it suits each vehicle.
Installation notes
Secure the cast bracket before wiring, then connect the included harness and switch. Keep the cable clear of moving parts and heat, and check local rules on driving lights before using the bar on a road vehicle.
What’s included
The 2-piece kit includes the 10-inch bar, the plug-and-play wiring harness and switch, and the cast bracket.
