Overview

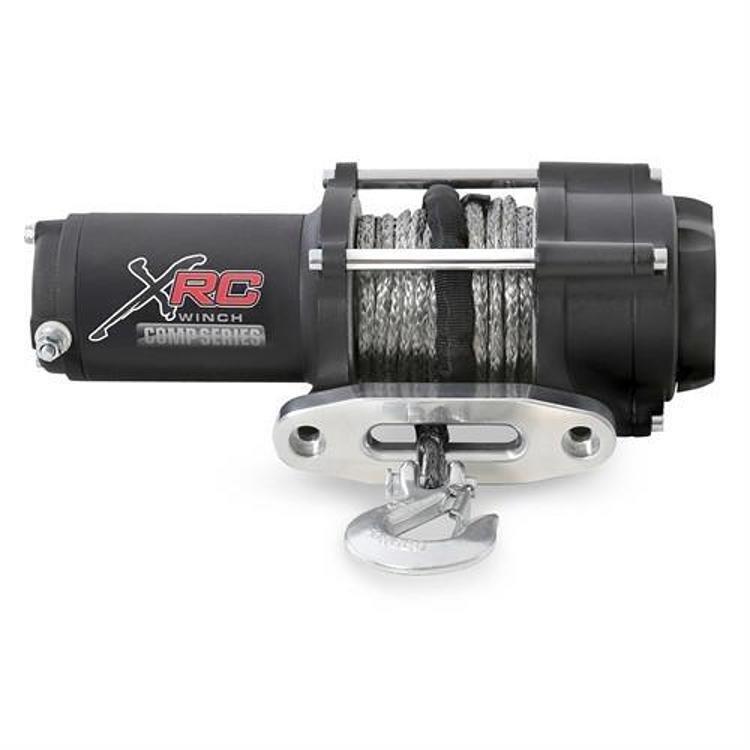

The Smittybilt 98204 is the XRC4 Comp winch, rated for 4000 lb line pull and supplied with 30 ft. of synthetic DSK-75 rope. Smittybilt built it for ATV and UTV recovery, and the synthetic rope weighs about one-seventh as much as steel cable of the same length. The 4000 lb rating makes it the heavier-duty of the two XRC Comp models, and it suits machines that need more pulling capacity than a smaller winch provides.
The winch has a 2-stage planetary gear train with a 198:1 gear reduction and a self-locking brake. Its hawse fairlead suits synthetic line, and the remote switch has a 12 ft. lead.
Key features
- 4000 lb rated line pull
- 30 ft. of synthetic DSK-75 rope
- 2-stage planetary gear train with a 198:1 ratio
- Self-locking brake
- Hawse fairlead
- Remote switch with a 12 ft. lead
Synthetic line on ATVs and UTVs
Synthetic rope is a practical choice for smaller machines because it is light to carry and easy to handle in the cold. On an ATV or UTV, the winch is usually mounted to a front rack or bumper, so the load path runs through a smaller frame than a full-size truck uses. Pulls should be slow and steady to keep the strain on the mount and the rope predictable.
A 2-stage planetary gear train with a self-locking brake holds the load when the motor stops, which helps when you need to pause a pull on a slope. Still, the brake is not a substitute for a secure anchor point. Set the machine so the pull is roughly straight and the rope does not rub against the frame.
Keep the rope clean and dry after use, and inspect the hawse fairlead for burrs that could cut the line. Store the remote in a spot where the lead will not be pinched when the machine is loaded.
- Use slow, steady pulls on small machines
- Keep the rope from rubbing against the frame
- Inspect the hawse fairlead for burrs
Specifications
| Brand | Smittybilt |
|---|---|
| Part number | 98204 |
| UPC | 631410102505 |
| Rated line pull | 4000 lb |
| Motor | 4.19 hp |
| Control | Remote switch, 12 ft. lead |
| Gear train | 2-stage planetary |
| Gear reduction ratio | 198:1 |
| Braking action | Self-locking |
| Drum size | 1.97 in. |
| Cable | 30 ft. synthetic DSK-75 rope, about 1/7 the weight of steel |
| Fairlead | Hawse |
Vehicle fitment
The winch is a universal-fit model, so the bumper or mounting plate on your ATV or UTV decides whether it will attach. Check the fit for your machine before installing.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
The 30 ft. synthetic rope and the remote switch are included. Mounting hardware isn’t itemized, so confirm it with Smittybilt before ordering.
