Overview

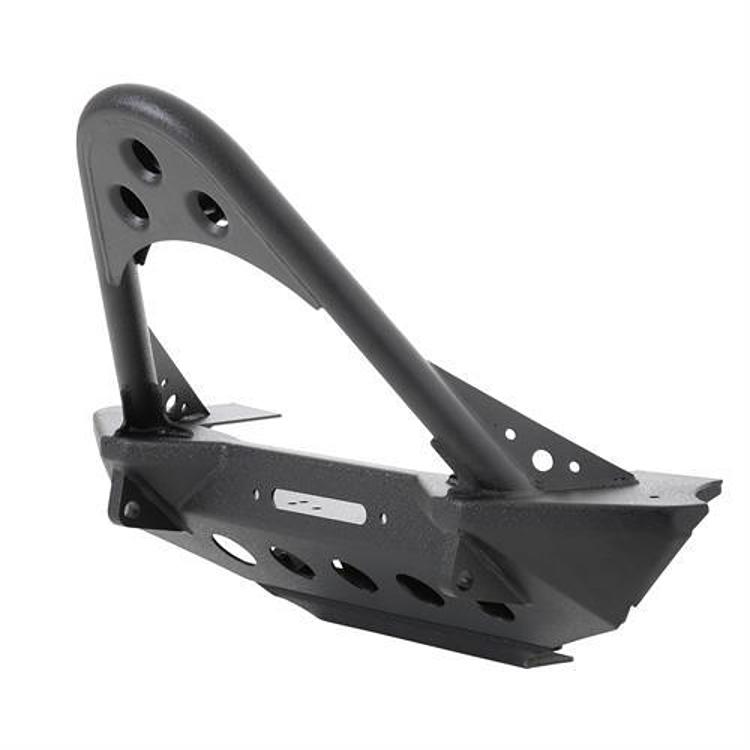

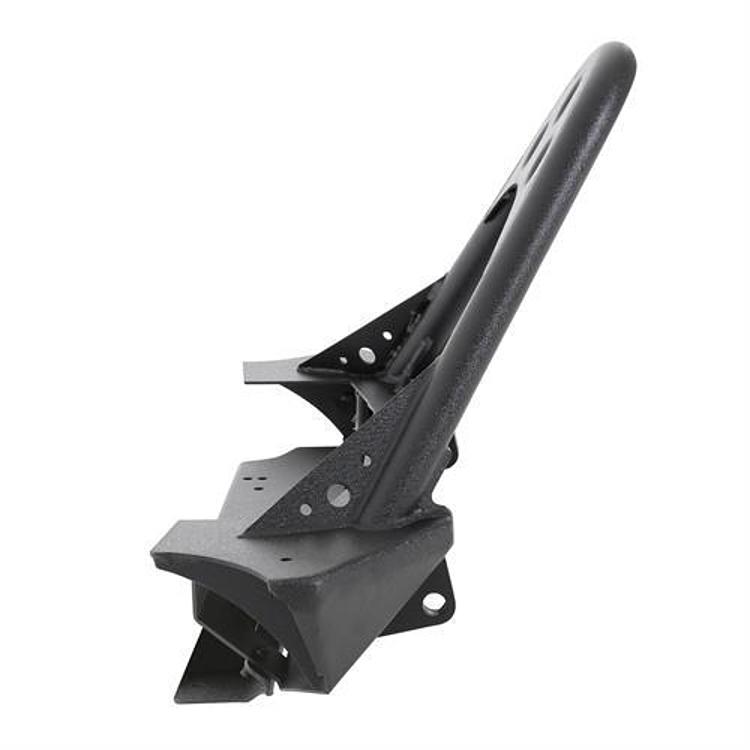

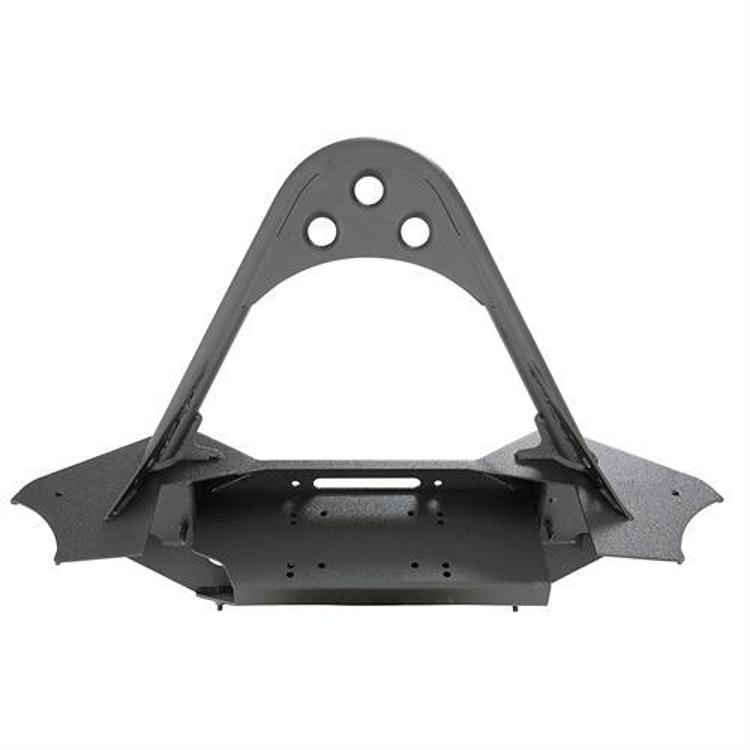

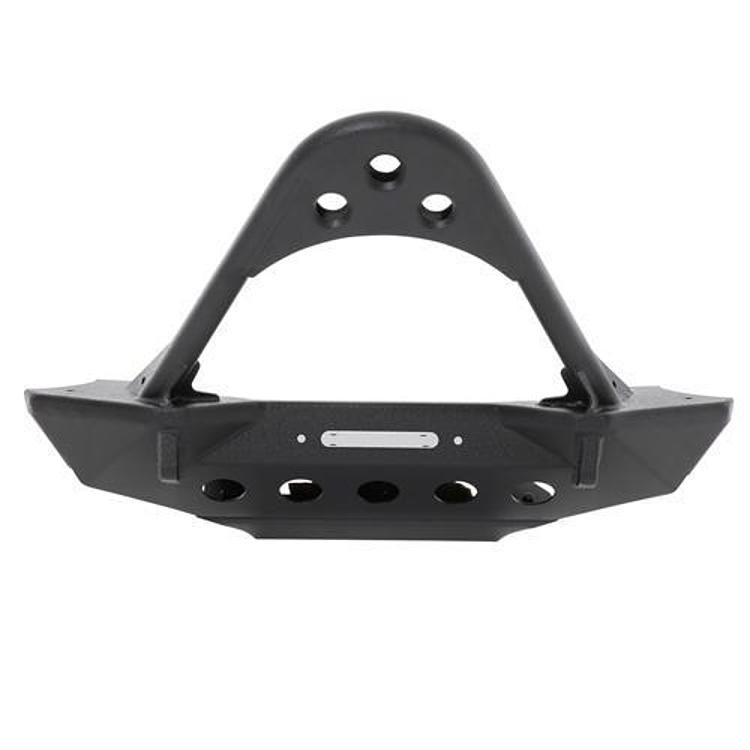

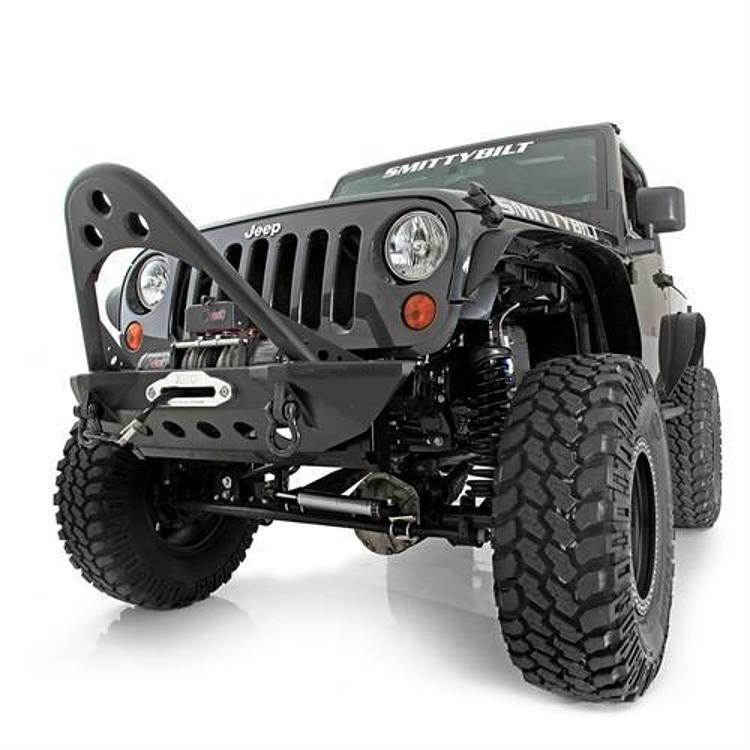

The Smittybilt JK SRC front stinger, part number 76524, is a stubby-width steel stinger for the 2007-2018 Jeep Wrangler JK, both 2-door and 4-door models. It is made from 2 inch DOM tubing and 3/16 inch cold rolled steel, finished in textured matte black.
The stinger is designed to leave clearance for approach and departure angles. D-ring mounts are welded inside and out, and the kit includes light mounts and a winch mount, so a winch and auxiliary lights can be fitted right away. It comes with a 5-year limited warranty.
Key features
- Fits 2-door and 4-door Wrangler JK

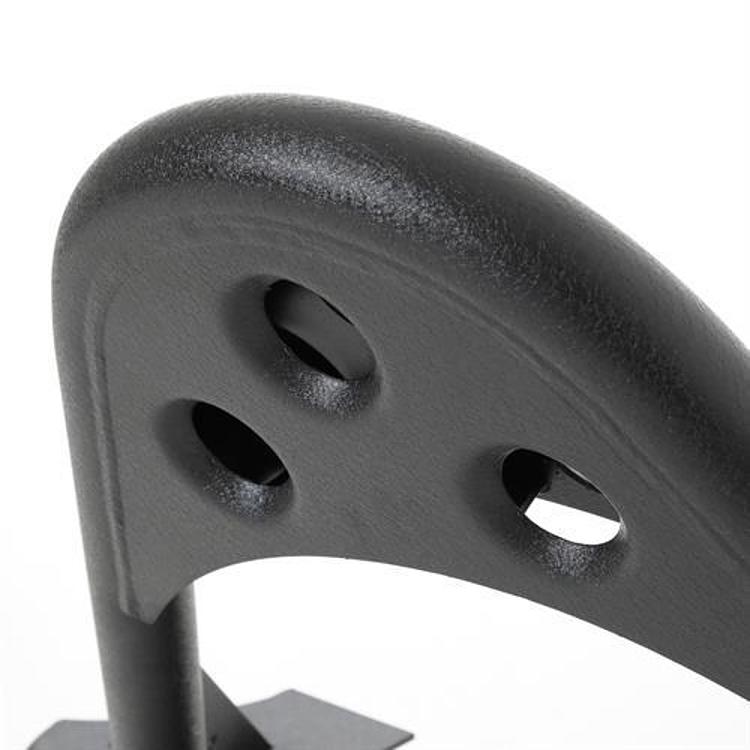

- 2 inch DOM steel tubing

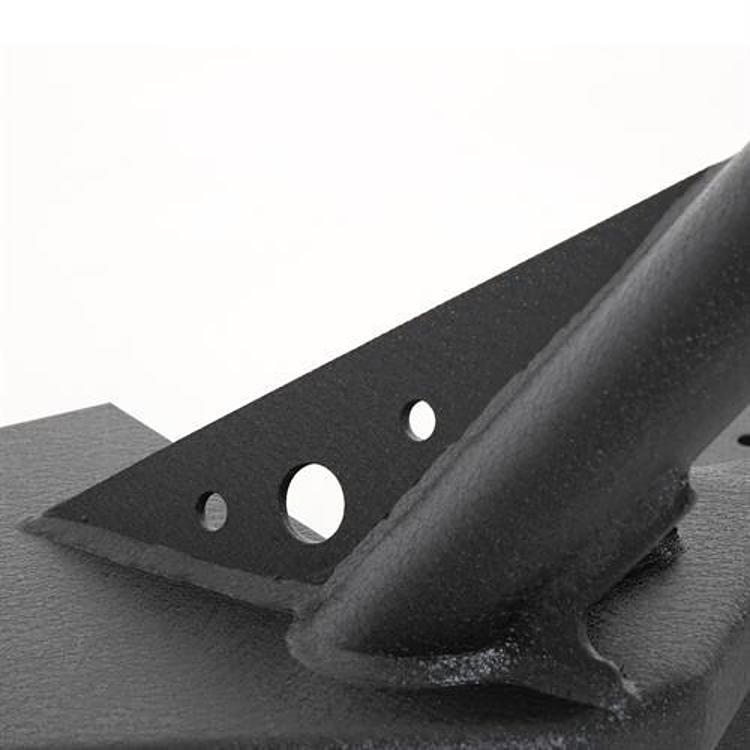

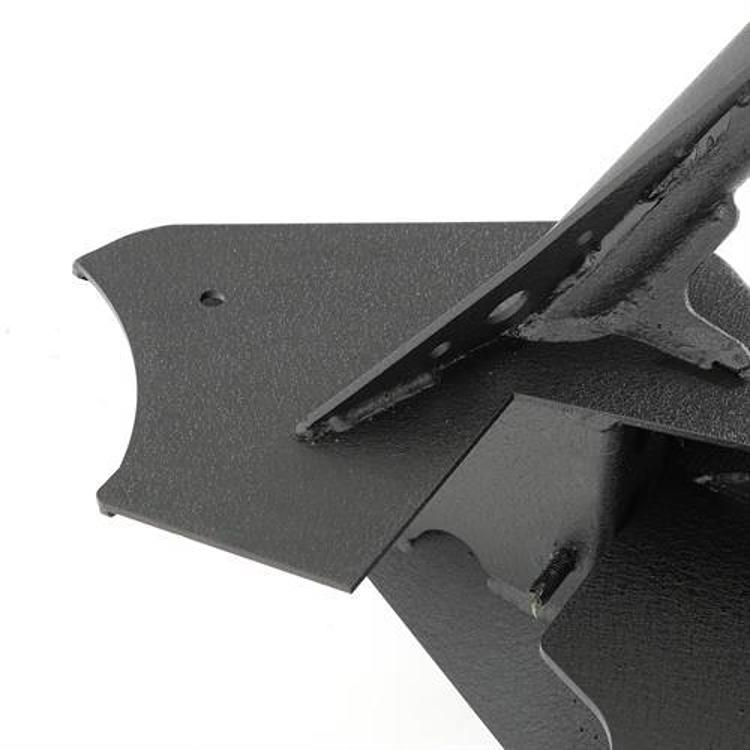

- Base made from 3/16 inch cold rolled steel with reinforced gussets
- D-ring mounts welded on the inside and out
- Textured black finish
- Light mounts and winch mount included
- 5-year limited warranty
Setting up a winch stinger
A stinger with a winch mount gives the front end a lot of work to do, so the setup matters. The winch needs a clean path to the fairlead, and the cable should not rub on the tubing or the mounts. Check the winch weight and height against the stinger before the first pull, and make sure the mounting bolts are torqued to spec for the hardware in use.
Auxiliary lights need their own planning. Wiring should run through a fused relay, and the lights should be aimed so they do not blind oncoming drivers. Keep the wiring clear of the winch cable and secure it so vibration does not chafe the insulation over time.
- Match the winch weight to the stinger and plate
- Route the winch cable away from sharp edges
- Recheck bolts after the first off-road trips
Specifications
| Brand | Smittybilt |
|---|---|
| Part number | 76524 |
| UPC | 631410109436 |
| Product type | Front stinger, SRC series |
| Position | Front |
| Width | Stubby |
| Material | Steel: 2 inch DOM 1020 tubing, 3/16 inch cold rolled base |
| Finish | Powder coat, textured matte black |
| D-ring mounts | Included |
| Light mounts | Included |
| Winch mount | Included |
| Warranty | 5-year limited |
| Fit type | Direct fit |
Vehicle fitment

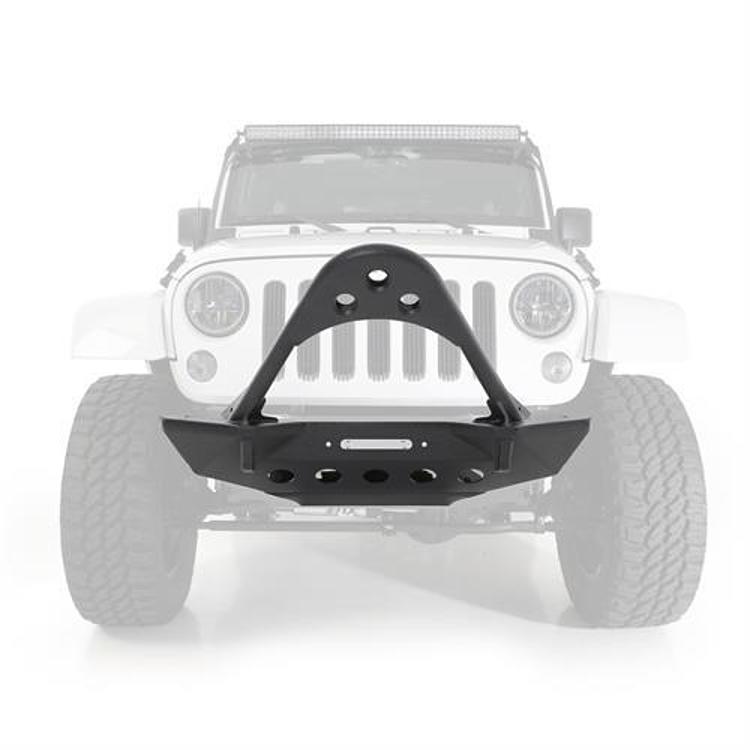

The manufacturer fitment list for 76524 covers the 2007-2018 Jeep Wrangler (JK), and Smittybilt’s notes say 07-Current Wrangler JK, 2 and 4 door.
The 2018 and later Wrangler JL, and the TJ, LJ and YJ models, are not covered by this stinger. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The stinger arrives with its own winch mount, so it is set up for a winch from the start. The light mounts let you add auxiliary lights, which should be wired through a fused relay and used in line with local road-use rules.
What’s included
- JK SRC front stinger in textured matte black
- D-ring mounts
- Light mounts
- Winch mount
