Overview

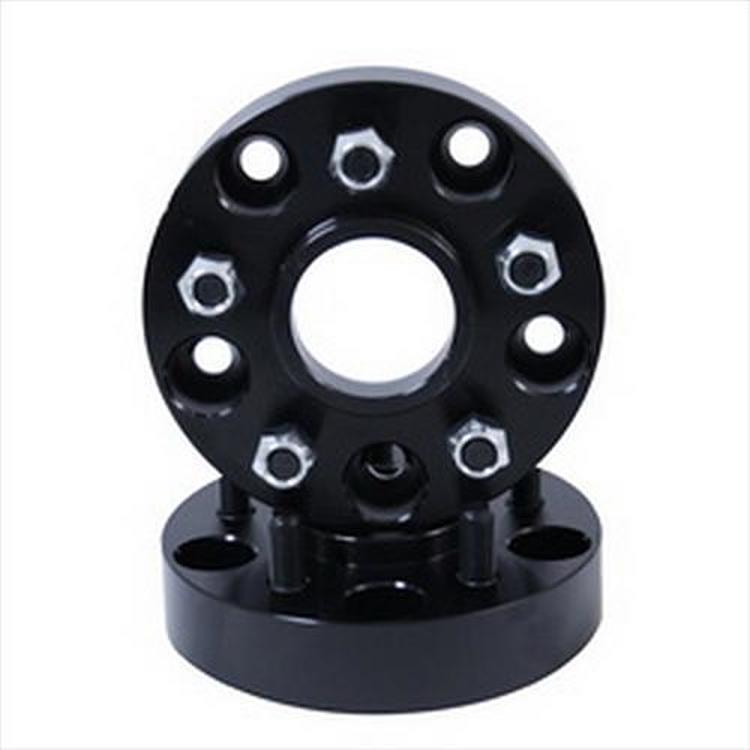

The 15201.06 is a black, hub centric 1.375 inch wheel spacer pair for a bolt pattern range of 5 on 5 to 5 on 4.5 inch. Hub centric design means the hub, not just the lug studs, locates the wheel.
The spacers are double anodized, extra thick 6061T6 aluminum with grade-8 hardware. The pair comes with ten pre-installed grade-8 wheel studs, ten lug nuts and thread locker.
Key features
- Hub centric design
- 1.375 inch thickness
- Bolt pattern range of 5 on 5 to 5 on 4.5 inch
- Double anodized, extra thick 6061T6 aluminum
- Grade-8 hardware
Hub centric fit and checks
Hub centric spacers carry the wheel on the hub bore, so a snug bore fit matters more than on a standard spacer. A spacer that is loose on the hub can cause vibration, while one that is too tight can be hard to remove. Check the fit by test mounting before tightening the nuts fully.
Spacers with a bolt pattern range need extra care, since the fit depends on the wheel and hub pattern being matched. Measure the wheels and hub before installing, and recheck the torque after the first drives. Keep the aluminum faces clean, and inspect for cracks and corrosion each time the wheels are removed.
- Test fit the spacer before final torque
- Clean the bore and mounting face before mounting
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | 15201.06 |
| UPC | 804314123406 |
| Thickness | 1.375 inch |
| Material | Aluminum 6061T6, double anodized |
| Color | Black |
| Bolt pattern | 5 on 5 to 5 on 4.5 inch |
| Centering | Hub centric |
| Hardware | Grade-8 |
| Fitment | Universal Fit |
Vehicle fitment
These spacers are marked universal fit and name no vehicle years, models or trims. Because the bolt pattern range covers 5 on 5 and 5 on 4.5 inch, measure your own wheels and hub to confirm the match.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
The set includes a spacer pair, ten pre-installed grade-8 wheel studs, ten lug nuts and a thread locker.
