Overview

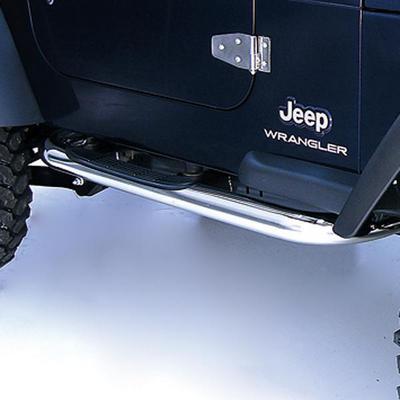

The Rugged Ridge RUG11593.04 is a set of tubular side steps, also called side bars or nerf bars, for the 2004–2006 Jeep Wrangler LJ and 1997–2006 Jeep Wrangler TJ. It is a direct fit, with installation brackets of 3/16 inch powder coated steel.
Side steps give a foothold for getting into the cab. The tubing comes in 3-inch round, 4-inch round and 4.25-inch oval diameters. The 4.25-inch oval and 4-inch round tubes look cleaner next to oversized tires and body styling.
Key features
- Tubular side steps with a deep polished mirror finish
- E-coated steel tube with a powder coated finish for chip resistance
- E-coat undercoat gives double rust protection
- Preinstalled UV treated no-slip step pads with 5 mounting pins, so no exposed metal sits on top of the tube
- Installation brackets of 3/16 inch powder coated steel for long life and flex-free use
- Rated for a 300lb maximum weight limit
Fit checks for LJ and TJ
LJ and TJ Wranglers have different body lines and frame layouts, so a bracket that sits well on one may need a closer look on the other. Measure from the rocker to the bottom of the tube and compare that to the tire at full turn. Doors and fender flares can also interact with the step, especially on trucks with aftermarket flares.
Side steps are often replaced with other parts at the same time, including rocker protection and fender-mounted accessories. Inspect the frame area where the brackets attach for rust, and recheck the fasteners after the first few trips. Clean the tube regularly to keep the e-coat and powder coat in good shape.
- Measure rocker-to-tube height on both sides
- Check door swing and fender flare clearance
- Recheck bracket fasteners after the first trips
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | RUG11593.04 |
| Product type | Tubular side steps (side bars) |
| Material | E-coated steel tube |
| Tube finish | Polished mirror finish, powder coated |
| Tube diameter options | 3-Inch round, 4-Inch round, 4.25-Inch oval |
| Tube wall thickness | .07 inch |
| Bracket material | 3/16 inch powder coated steel |
| Weight limit | 300lb max |
| Step pads | UV treated no-slip, 5 mounting pins |
| Length | Wheel to wheel |
| Fitment type | Direct fit |
Vehicle fitment
This fits the 2004–2006 Jeep Wrangler LJ, including Unlimited and Unlimited Rubicon, and the 1997–2006 Jeep Wrangler TJ, including 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X. It is a direct fit for those models.
The 2007–2018 Jeep Wrangler JK, 2018–2022 Jeep Wrangler JL, Jeep Liberty and Cherokee are not covered. Match your year, model and trim to the fitment before ordering.
Installation notes
The steps use custom-fit installation brackets. Check the bracket and mounting hardware against your installation before starting, and confirm the steps clear your tires and exhaust at full steering lock.
What’s included
The kit uses custom-fit installation brackets and step pads preinstalled on the tube with 5 mounting pins. Check the contents on arrival.
