Overview

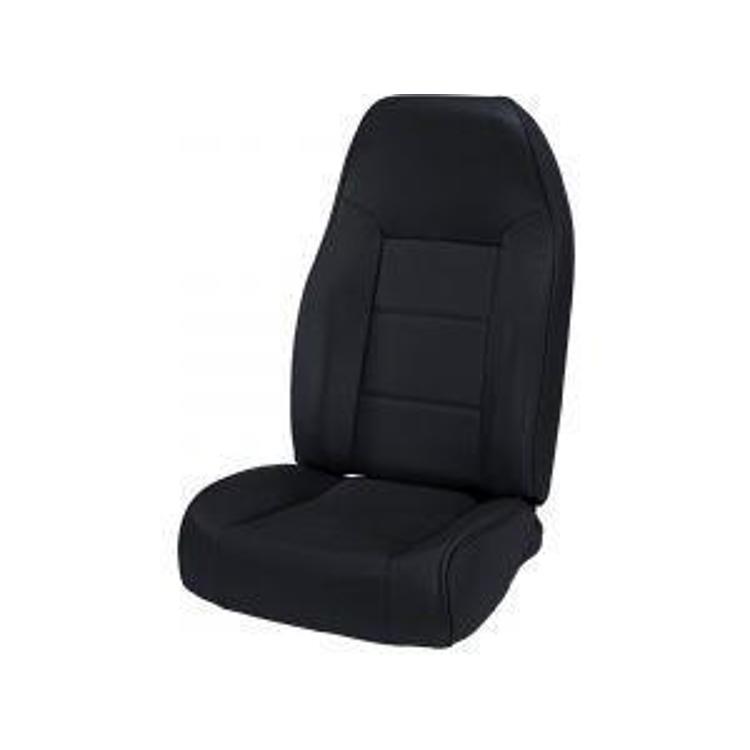

The Rugged Ridge standard front bucket seat in black (part number 13401.01) is a vinyl replacement seat for earlier Jeep restoration projects. Rugged Ridge says 1997 to 2002 TJ Wranglers require seat adapters RUG13201.11 and RUG13201.12 to use it.
The style follows the original Jeep look, with an integrated headrest, horizontal stitching and a non-reclining fixed back. It uses the original mounting hardware and bolts from factory seats, in automotive grade black vinyl designed to match the interior.
Key features
- Automotive grade black vinyl upholstery
- Integrated headrest
- Horizontal stitching in the original Jeep style
- Non-reclining fixed back
- Uses the original mounting hardware and bolts
- Seat adapters required for 1997 to 2002 TJ Wranglers
Planning a bucket seat swap
A bucket seat changes more than the look of the front cabin. Seat height, seat belt routing and the position of the shifter and console all affect how comfortable the driver sits. Before removing the old seats, sit in a similar setup if you can, and note how far the seat travels on its rails. This helps avoid surprises once the new seat is bolted in.
On an older TJ, the seat adapters do much of the work of matching the new seat to the factory mounts. Because they are needed for 1997 to 2002 Wranglers, plan for them early so the install does not stall. Inspect the floor brackets and the seat belt buckles at the same time, since they are commonly replaced during a swap.
- Confirm seat height against your steering wheel
- Check seat belt buckle position
- Inspect floor brackets for rust
- Keep the original seat bolts for reference
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | 13401.01 |
| UPC | 804314120184 |
| Seat location | Front |
| Color | Black |
| Material | Automotive grade vinyl |
| Seat type | Stationary highback, non-reclining |
| Headrest | Integrated |
| Seat adapters | RUG13201.11 (left side) and RUG13201.12 (right side), required for 1997 to 2002 TJ Wranglers |

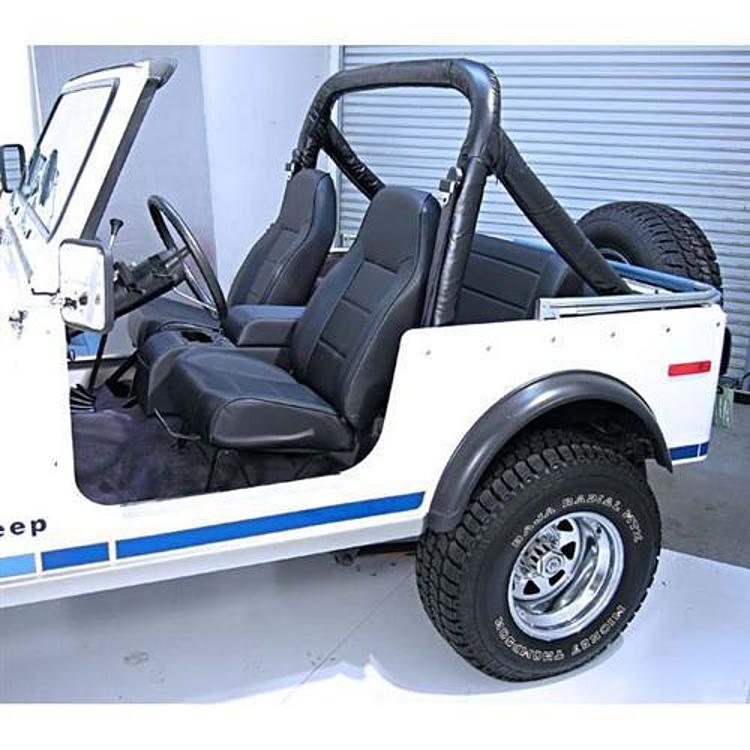

Vehicle fitment
This seat is designed for 1997 to 2002 Jeep Wrangler TJ models when used with seat adapters RUG13201.11 and RUG13201.12. Confirm fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
For 1997 to 2002 TJ Wranglers, have both seat adapters RUG13201.11 and RUG13201.12 on hand before starting, since they are required. The seat uses the original mounting hardware and bolts from factory seats.
What’s included
One black front bucket seat. Check the package contents against your installation before starting.
Not included: Seat adapters RUG13201.11 (left side) and RUG13201.12 (right side), which are required for 1997 to 2002 TJ Wranglers.
