Overview
The Rugged Ridge Spartacus Heavy Duty 8 (part RUG15100.21) is a winch for recovery work. It has a 6.6 HP series wound motor and a three stage planetary gear box with a 265:1 gear ratio, and the listed line pull rating is 12500.
A series wound motor is a common winch choice, and the planetary gear box multiplies the motor’s torque so the drum can pull a heavy load slowly. The winch is designed for long service life and added pulling power.
The winch has an automatic load holding brake in the drum brake system, which holds the load when the motor stops. The body uses stainless hardware to resist rust.

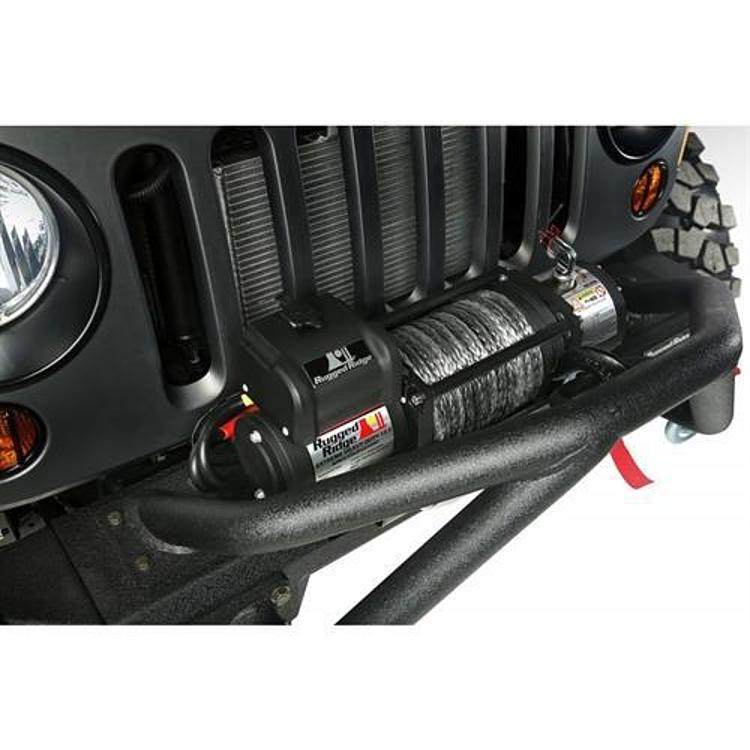

The winch accepts most winch bumpers, including the Rugged Ridge XHD Bumper System. Its 12 foot all weather cable remote solenoid box can be mounted in several positions and angles, either over the cable or over the motor.
Key features
- 6.6 HP series wound motor for long life and pulling power
- Three stage planetary gear box with a 265:1 gear ratio

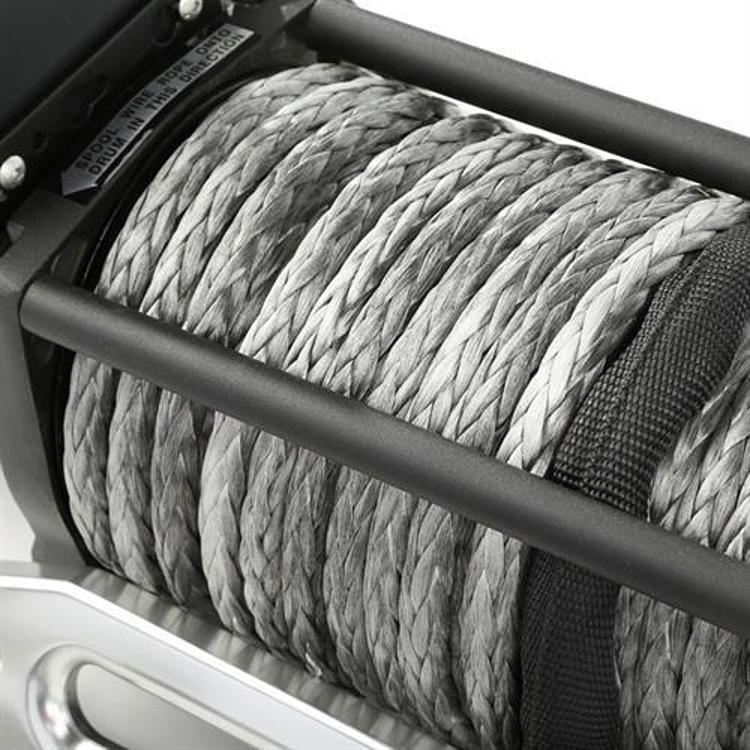

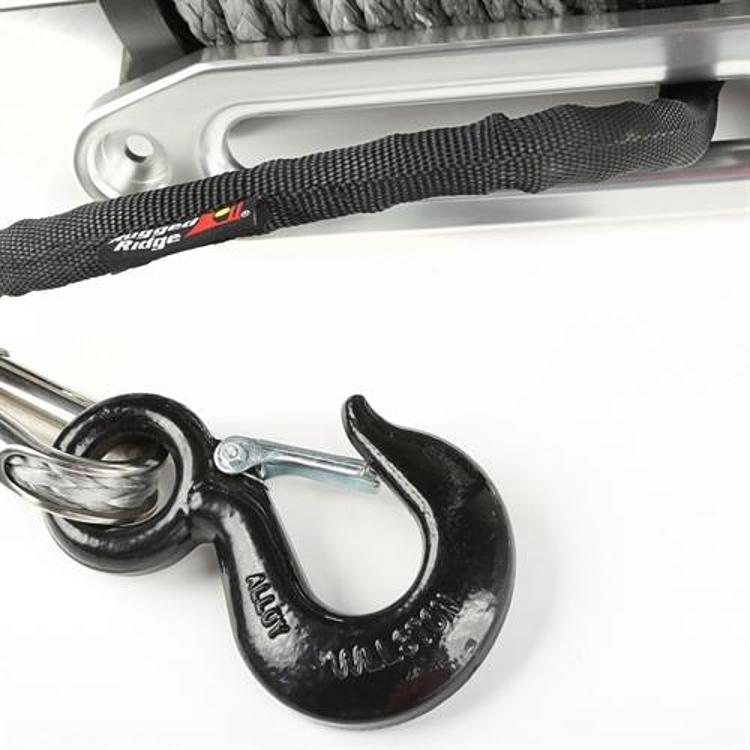

- 100 feet of 7/16 inch diameter synthetic rope with a latched hook
- Automatic load holding brake in the drum brake system
- Aluminum hawse fairlead
- Stainless steel hardware on the body to resist rust
- 12 foot all weather cable remote solenoid box, mountable over the cable or the motor
Choosing a bumper and mount
A winch’s rated pull depends on the bumper, mounting plate and anchor points as much as the winch itself. Check that the bumper is rated for the winch’s load and that the mounting plate bolts to the frame correctly. Position the winch so the fairlead lines up with the cable path, since a crooked pull can wear the rope and damage the drum.
A winch used for recovery should be tested under a light load before a real recovery. Run the winch with the cable spooling evenly, then check that the brake holds when the motor stops. Keep the solenoid box dry and the remote connections clean to prevent corrosion and misfires.
- Confirm bumper rating against winch load
- Align the fairlead with the cable path
- Test the brake under light load first
- Keep remote connections clean and dry
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | RUG15100.21 |
| UPC | 804314269913 |
| Motor | 6.6 HP series wound |
| Gear ratio | 265:1, three stage planetary gear box |
| Line pull rating | 12500 |
| Line | 100 feet of 7/16 inch synthetic rope with latched hook |
| Fairlead | Aluminum hawse |
| Remote | 12 foot all weather cable remote solenoid box |
| Fitment type | Universal fit |
Vehicle fitment
The winch is universal fit, so no year, make or model is attached to it. It accepts most winch bumpers, including the Rugged Ridge XHD Bumper System.
Because the winch is not built for one vehicle, check its line pull and mounting against your vehicle and bumper before ordering.
Installation notes
Position the solenoid box where the cable and controls can be reached, since it mounts over the cable or over the motor at several angles. A winch of this size needs a bumper or mount rated for its load, so check the bumper’s rating before fitting.

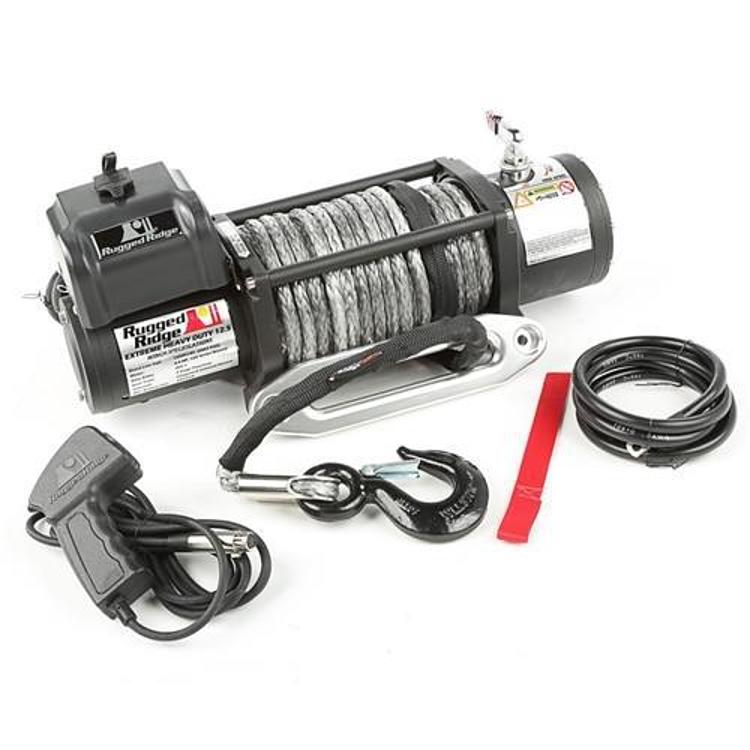

What’s included
The winch includes 100 feet of 7/16 inch diameter synthetic rope with a latched hook, an aluminum hawse fairlead and a 12 foot all weather cable remote solenoid box.
