Overview

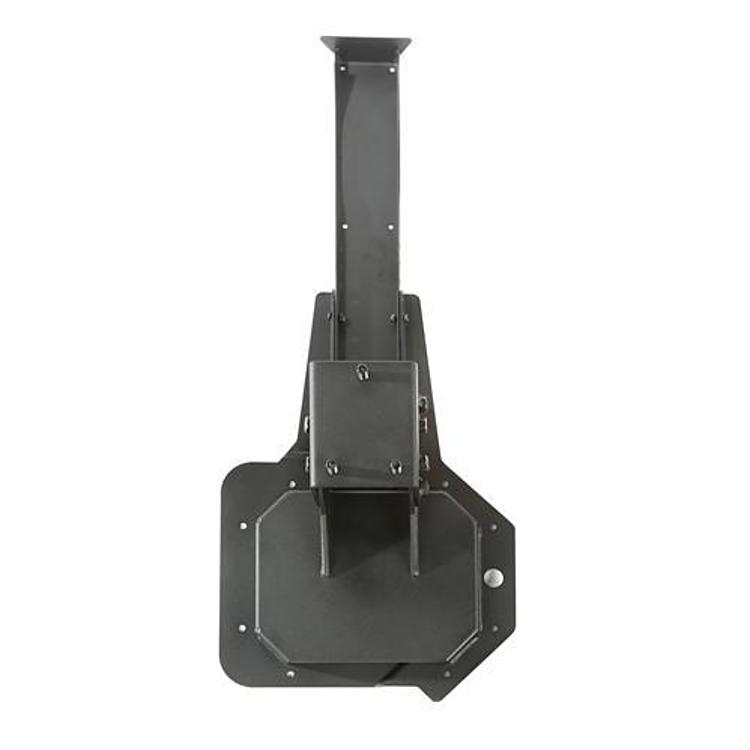

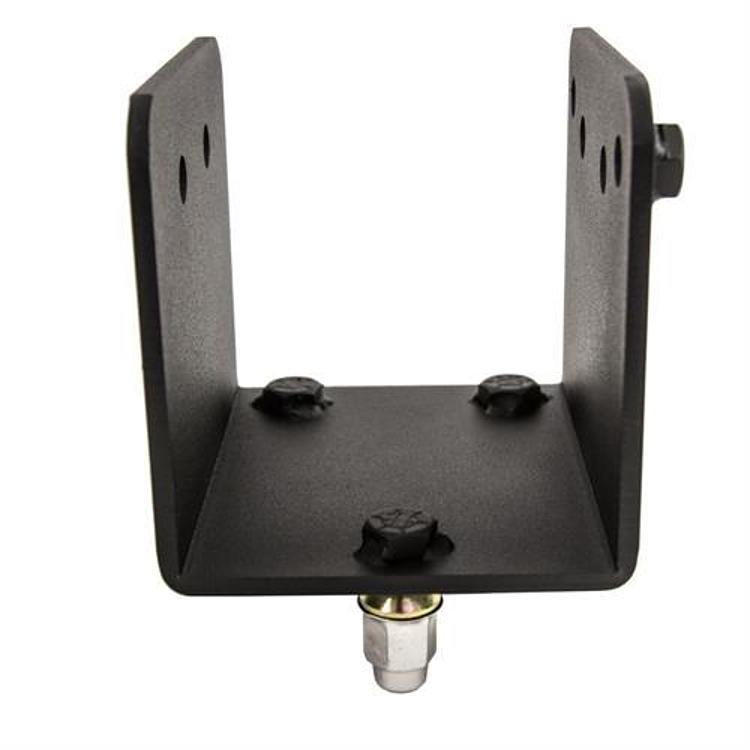

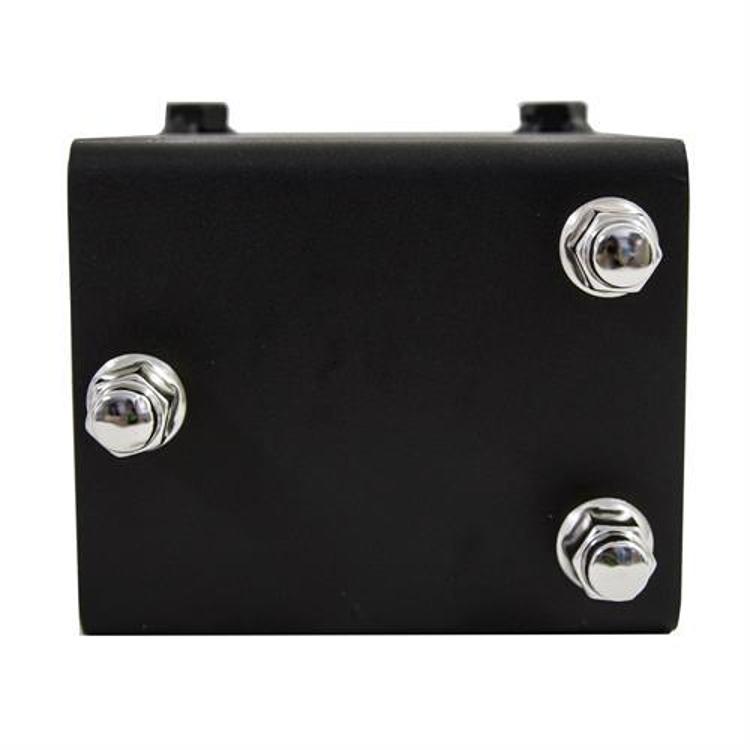

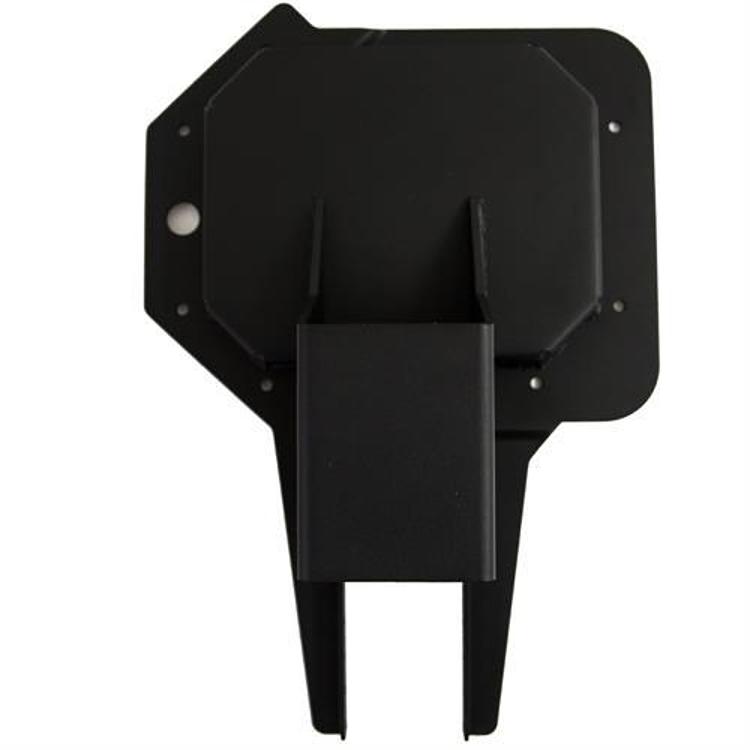

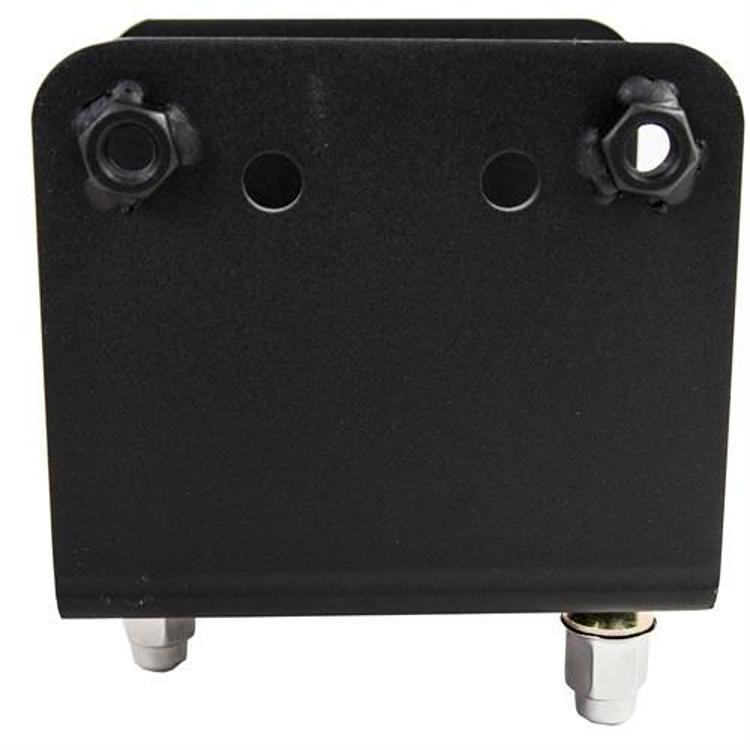

The Rugged Ridge 11546.52 is a heavy-duty tire carrier wheel mount for oversized wheels and tires. It lifts the mounting position and adds depth and tilt adjustability for large diameter and wide tire options.
The mount is compatible with OE and most aftermarket rear bumpers and requires no drilling. Rugged Ridge recommends pairing it with the HD tire carrier hinge casting, part number 11546.51, for carrying up to and including a 37 inch wheel and tire.
Key features
- Depth and tilt adjustment for large diameter and wide tires
- Lifted mounting position for oversized wheels

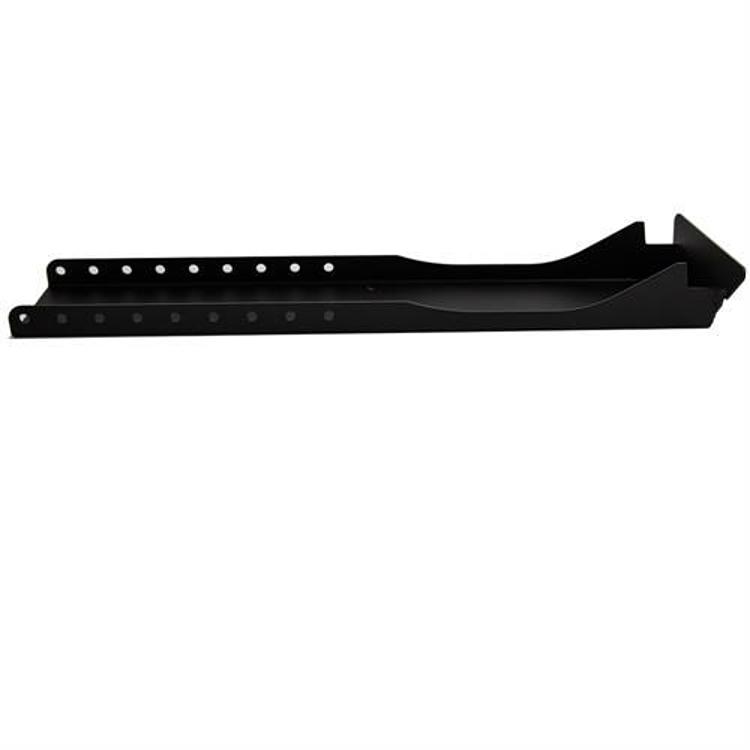

- Adjustable third brake light bracket included
- No drilling required
- Compatible with OE and most aftermarket rear bumpers
- Recommended pairing with hinge 11546.51 for up to 37 inch wheel and tire

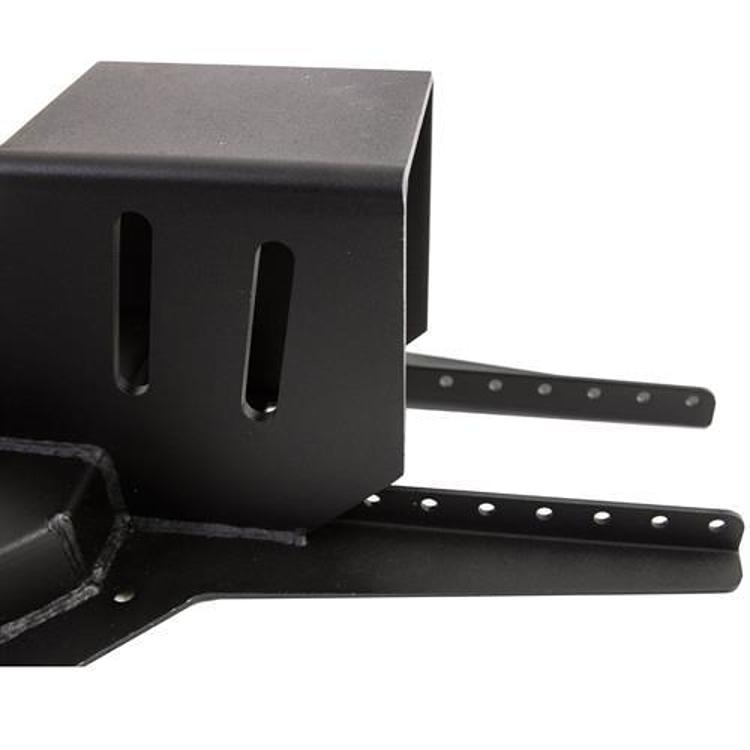

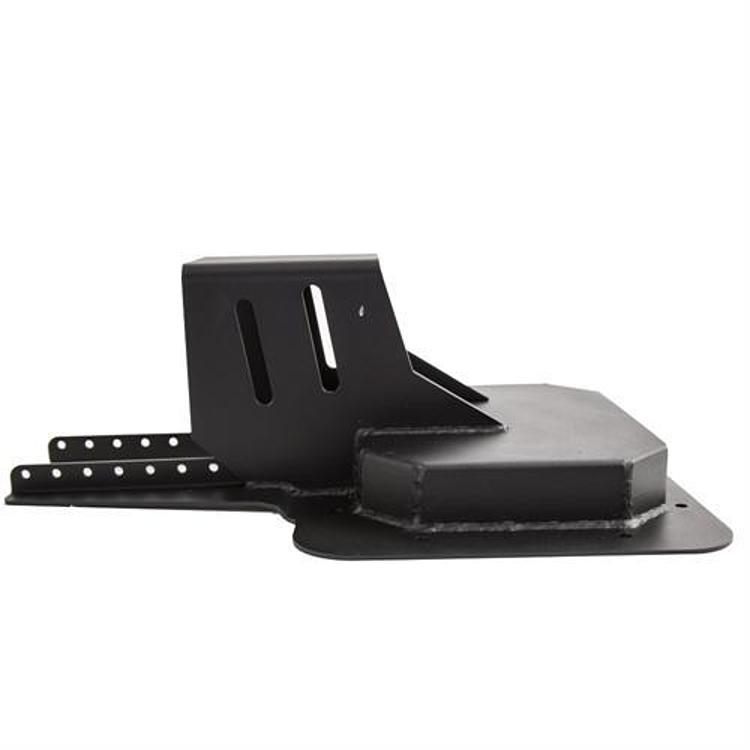

Setting depth and tilt
Depth and tilt adjustment lets the carrier sit clear of the body and the tire clear of the rear door when it swings. Larger wheels move the center of weight further from the vehicle, so small changes in depth can make a noticeable difference to clearance and to how the carrier feels on the bumper. Set the position with the spare fitted, then check the swing path by hand before driving.
After setting the mount, re-check the tilt and bolts after the first few drives. Vibration on rough tracks can slowly shift an adjustment that was set tight. Keep the adjustment points clean and lightly protected so they move freely when you need to change the setup again.
- Set depth so the tire clears the rear door swing
- Re-check tilt after the first few drives
- Inspect the bracket and fasteners after rough trips
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | 11546.52 |
| UPC | 804314269210 |
| Adjustment | Depth and tilt |
| Recommended pairing | Hinge casting 11546.51 |
| Maximum wheel and tire with pairing | Up to and including 37 inch |
| Drilling | Not required |
| Mounting location | Body mount |
Vehicle fitment
It is a direct fit for the mount point and suits OE and most aftermarket rear bumpers. Confirm the rear bumper and carrier match your vehicle’s year, model and trim before ordering.
Installation notes
No drilling is required. For the 37 inch capacity Rugged Ridge gives, pair the mount with hinge 11546.51 as recommended. The third brake light bracket is adjustable, so check its position against your vehicle’s brake light.
What’s included
An adjustable third brake light bracket. Check any other hardware in the box against your installation before starting.
Not included: hinge casting 11546.51, which is recommended as a pairing.
