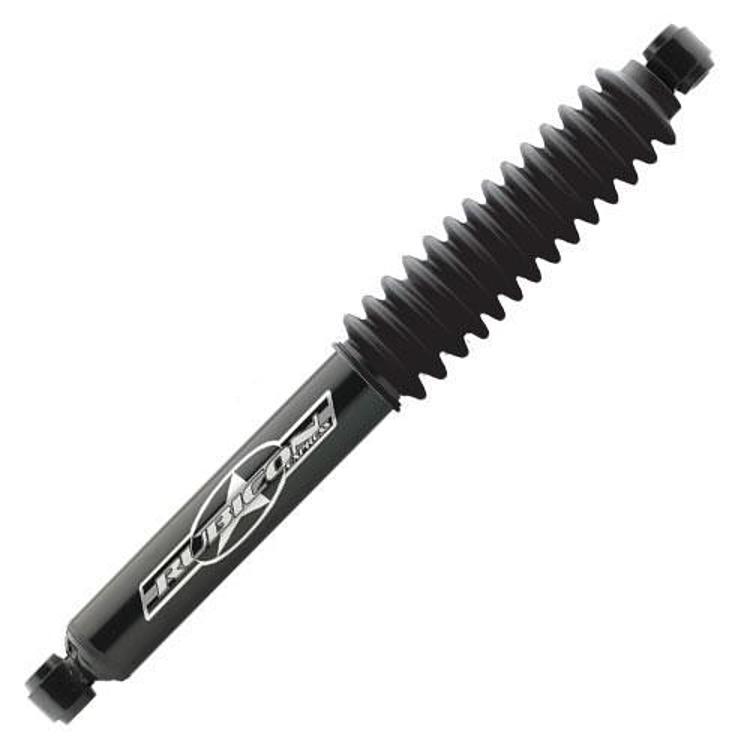

Rubicon Express RXT Twin-Tube Shock Absorber – RXT2610B

Rubicon Express

Shop Rubicon Express Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rubicon RXT twin tube shock, 26.5 inches extended, 15.5 inches collapsed
  • 11-inch stroke, 1.625-inch piston and 11/16-inch chrome shaft
  • Eyelet mounts at both ends, gas charged
  • Direct fit style; check vehicle fit before ordering

Description

Overview

The Rubicon Express RXT Twin-Tube Shock Absorber, part number RXT2610B, is a gas charged twin tube shock with a 26.5-inch extended length, a 15.5-inch collapsed length and an 11-inch stroke. It has eyelet mounts at both ends.

It has a 1.625-inch piston for control and an 11/16-inch chrome shaft for strength. The oversized body holds more fluid, and double welded rings add durability for on and off road use.

Key features

  • 1.625-inch piston
  • 11/16-inch chrome shaft
  • Oversized shock body with added fluid capacity
  • Double welded rings
  • Eyelet mounts at both ends

Choosing a replacement shock

A twin tube shock controls how quickly the suspension compresses and rebounds, so it shapes ride comfort, body control and tire contact on rough roads. On the trail, a shock that keeps the tire planted helps the vehicle hold traction over ledges and ruts. On pavement, the same damping keeps the body from wallowing through corners and under braking. Because each shock works with its spring and the rest of the suspension, replacing one shock at a time can leave the two sides feeling uneven.

When choosing a replacement, start with the mounted length and stroke of the old shock, since the new unit must fit the available space at both ends. Gas charged designs help keep damping consistent when the oil heats up during long descents. Shocks are often replaced in pairs on the same axle so the damping matches side to side.

  • Measure the old shock eye to eye before ordering
  • Replace in pairs on the same axle
  • Check bushings and mounting hardware for wear

Specifications

Brand Rubicon Express
Part number RXT2610B
UPC 614901453669
Series RXT twin tube
Extended length 26.5 inches
Collapsed length 15.5 inches
Stroke 11 inches
Piston 1.625 inches
Shaft 11/16-inch chrome
Mounts Eyelet at both ends
Gas charged Yes
Fitment type Direct fit

Vehicle fitment

No vehicle, year or chassis code is named for this shock, so confirm fit for your vehicle’s year, model and trim before ordering.

Match the 26.5-inch extended and 15.5-inch collapsed lengths to the measurements of the shock being replaced.

SKU: R/ERXT2610B Category:

Specification

Shipping weight 7.00 lbs
Package dimensions 24.00 × 3.00 × 3.00 in
brands

Questions & Answers

How much stroke does the RXT2610B have?

The stroke is 11 inches, the difference between the 15.5-inch collapsed length and the 26.5-inch extended length. The shock is a gas charged twin tube design with eyelet mounts at both ends.

What size piston is in this shock?

It has a 1.625-inch piston, which Rubicon Express says gives maximum control. The shaft is 11/16-inch chrome, which the manufacturer chose for maximum strength.

Is the shock gas charged?

Yes. It is a gas charged twin tube design with a direct fit style and eyelet mounts at both ends. The oversized body holds more fluid.

How can I tell a shock needs replacing?

Look for oil seeping down the body, a bouncy or floating ride, cupped tire wear, or a clunk over bumps. Test by pushing down hard on a corner and letting go; a worn shock tends to rebound more than once.
