Overview

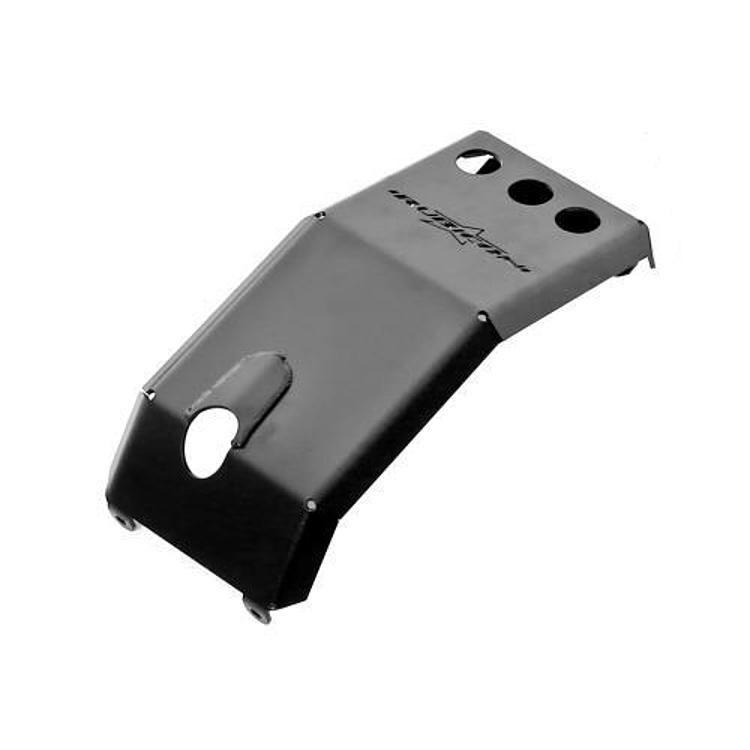

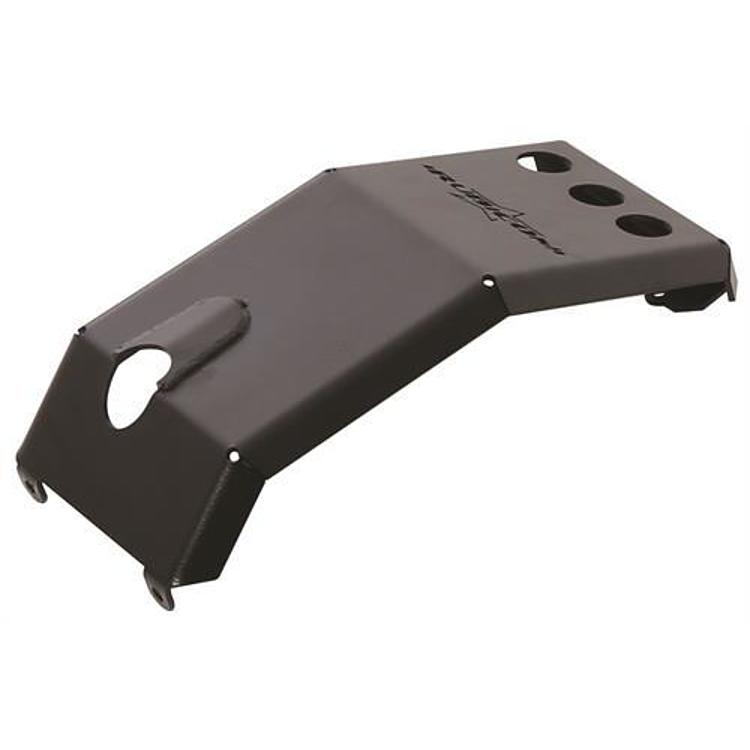

The Rubicon Express REA1011 is a black powder-coated oil pan skid plate for the 2012-2015 Jeep Wrangler JK with the 3.6L engine, in both 2-door and 4-door models. It is cut from 3/16 inch steel and protects the engine oil pan on the trail.
Rubicon Express says its skid plate system covers the engine oil pan, transfer case and fuel tank, and that every plate is CNC laser cut from 3/16-inch steel and mounts up tight to the drivetrain to maximize ground clearance. The oil pan skid is designed to reduce obstacle hang-ups and help the vehicle slide over terrain. It installs with no cutting or drilling and uses the existing hardware and fasteners.
Rubicon Express designed the plates as a modular protection system, so additional skid plates can be added later without compatibility concerns, and the line is designed to work with all Rubicon Express suspension systems.
Key features
- Oil pan skid plate for the engine oil pan
- Black powder coat finish
- 3/16 inch steel construction
- Precision CNC laser cut and formed
- High, tight mounting to protect the oil pan without affecting ground clearance
- No cutting or modification of existing components, and no drilling required
- Uses the existing hardware and fasteners
- Designed to work with all Rubicon Express suspension systems
Skid plates on the trail
An oil pan skid plate takes the hits that would otherwise dent the pan or damage the drain plug area. It sits low under the engine, so it also changes how the underside clears rocks and ledges. A plate that stays tight to the drivetrain keeps the lowest point predictable, which helps when you pick a line over obstacles.
Skid plates are often used with transfer case and fuel tank plates, so they can be planned as a set. After any strike, check the oil level, look for leaks and inspect the welds and mounting points for cracks. Plates that are bent should be straightened or replaced before they hold their shape on rough terrain.
- Check oil level after a hard strike
- Look for leaks at the drain plug and pan
- Inspect the plate’s edges and mounting points
- Keep fasteners tight after rough trails
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | REA1011 |
| UPC | 614901148886 |
| Product type | Oil pan skid plate |
| Material | 3/16 inch steel |
| Finish | Black powder coat |
| Manufacturing | Precision CNC laser cut and formed |
| Body styles | 2-door and 4-door models |
| Fitment type | Direct fit |
| Installation | No cutting or drilling required; uses existing hardware and fasteners |
Vehicle fitment
It is for the 2012-2015 Jeep Wrangler JK with the 3.6L engine, in 2-door and 4-door models.
It fits the 12-15 Wrangler JK with the 3.6L engine. Confirm fit for your vehicle’s year, model, engine and trim before ordering.
Installation notes
Suspension and axle components are safety-critical, so professional installation is recommended. Follow the installation steps closely and torque every fastener to its specified value. Skid plates carry impact loads, so make sure every bolt is fully tightened.
- Support the vehicle on rated jack stands on level ground; never work under a vehicle held only by a jack.
- Inspect nearby bushings, mounts and hardware while the area is open, and replace anything worn.
- Re-check fastener torque after the first miles of driving, and again at regular service intervals.
- Have the alignment checked after any suspension or steering work.
- Confirm tire, brake line and wiring clearance through the full range of suspension travel before driving normally.
What’s included
The oil pan skid plate. It uses the vehicle’s existing hardware and fasteners.
Not included: Transfer case and fuel tank skid plates are separate products.
