Rubicon Express 4.5 Inch Extreme-Duty Long Arm Lift Kit with Rear Tri-Link and Twin Tube Shocks – RE7524T

Rubicon Express

Shop Jeep Wrangler LJ Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 2004–2006 Jeep Wrangler Unlimited (LJ), including the Unlimited Rubicon
  • 4.5-inch Extreme-Duty long arm suspension system with shocks included
  • 4130 chromoly control arms (2-inch, .250-inch wall) with Super-Flex joints and PT-Meg Super-Ride bushings
  • Rear Tri-Link replaces the rear track bar; Builder Ball joint with up to 32° of misalignment
  • Three-piece belly pan for transfer case and transmission access
  • Bolts on to factory Dana 35 and Dana 44 rear axles; tuned lift springs included

Description

Overview

The Rubicon Express RE7524T is a 4.5-inch Extreme-Duty long arm lift kit for the 2004–2006 Jeep Wrangler Unlimited (LJ). It replaces the factory suspension with longer front and rear control arms, which flatten the arm angles on a lifted Jeep. Compared with a short-arm lift, the longer arms give a more stable ride on and off road, less torque roll under power, and better traction on the trail.

At the rear, the Tri-Link design replaces the factory track bar. Without the track bar, the axle moves straight up and down through its travel instead of shifting side to side, and the geometry adds anti-squat for steep climbs. The kit includes tuned lift springs and twin-tube shocks.

Key features

  • 4.5-inch lift (lift height range 3 to 4.99 inches)
  • Long arm front and rear suspension: improved lifted geometry, stability and traction
  • Control arms made from 2-inch, .250-inch wall 4130 chromoly tubing
  • Adjustable control arms with serviceable Super-Flex spherical ball joints
  • PT-Meg Super-Ride bushings, designed for both on-road and off-road use
  • Rear Tri-Link system eliminates the rear track bar and adds anti-squat
  • Builder Ball misalignment joint: up to 32 degrees of misalignment in a 3-inch OD housing
  • Three-piece belly pan for easier transfer case and transmission access
  • Tuned lift springs and twin-tube shocks included
  • Bolt-on for factory Dana 35 and Dana 44 rear axles

Driveline and rear axle checks

A 4.5-inch long arm build changes the angles of the driveshafts, so the driveline should be measured after installation. Rear driveshaft angle, transfer case output and the front axle joints all shift with ride height. Owners often add a slip-yoke eliminator and a CV driveshaft to keep the angles within a workable range, and the need depends on the existing drivetrain.

The rear axle is the other area to check. Because this kit is bolt-on for factory Dana 35 and Dana 44 axles, the existing axle housing and brackets stay in place. Inspect the axle mounts for cracks and confirm that brake lines have enough length at full droop. A rear differential vent hose can also need extending at higher ride heights.

  • Measure driveshaft angles at ride height
  • Check brake line length at full droop
  • Inspect axle mounts and bolts after the first trail run

Specifications

Brand Rubicon Express
Part number RE7524T
UPC 614901453256
System Extreme-Duty long arm suspension
Lift height 4.5 inches (range 3 to 4.99 inches)
Rear suspension Tri-Link (3-link); rear track bar eliminated
Control arm material 4130 chromoly, 2-inch OD, .250-inch wall
Joints and bushings Super-Flex spherical joints, PT-Meg Super-Ride bushings, Builder Ball (up to 32° misalignment, 3-inch OD housing)
Springs Tuned lift springs included
Shocks Twin-tube shocks included
Belly pan Three-piece, included
Rear axle compatibility Factory Dana 35 and Dana 44 (bolt-on)
Fitment 2004–2006 Jeep Wrangler Unlimited (LJ)

Vehicle fitment

It is made for the long-wheelbase Wrangler Unlimited (LJ):

  • 2004 Jeep Wrangler (LJ) Unlimited
  • 2005–2006 Jeep Wrangler (LJ) Unlimited and Unlimited Rubicon

This system is built for the LJ’s longer wheelbase and covers the 2004–2006 Wrangler Unlimited and Unlimited Rubicon. The TJ has its own long arm kits, and the JK and JL are different platforms. Confirm your Jeep’s model and year before ordering.

Installation notes

A long arm system replaces the whole suspension, from the control arms and their mounts to the springs and shocks, so it is a bigger job than a short-arm lift. Professional installation by a shop experienced with long arm Jeep suspensions is recommended. Plan for the following:

  • Follow the included instructions and torque values. Set the control arm lengths as the instructions describe before final tightening, and tighten bushing bolts with the Jeep at ride height.
  • Have the front end aligned after installation, and re-check all fasteners after the first few hundred miles and after the first trail run.
  • A 4.5-inch lift changes driveline angles. Many LJ owners address rear driveshaft angle with a slip-yoke eliminator and a CV driveshaft; check whether your setup needs them.
  • Lifting also affects brake line length, steering geometry and bump stop spacing. Check clearances at full articulation, especially with larger tires.
  • Lift height and tire size rules vary by state; check your local regulations.

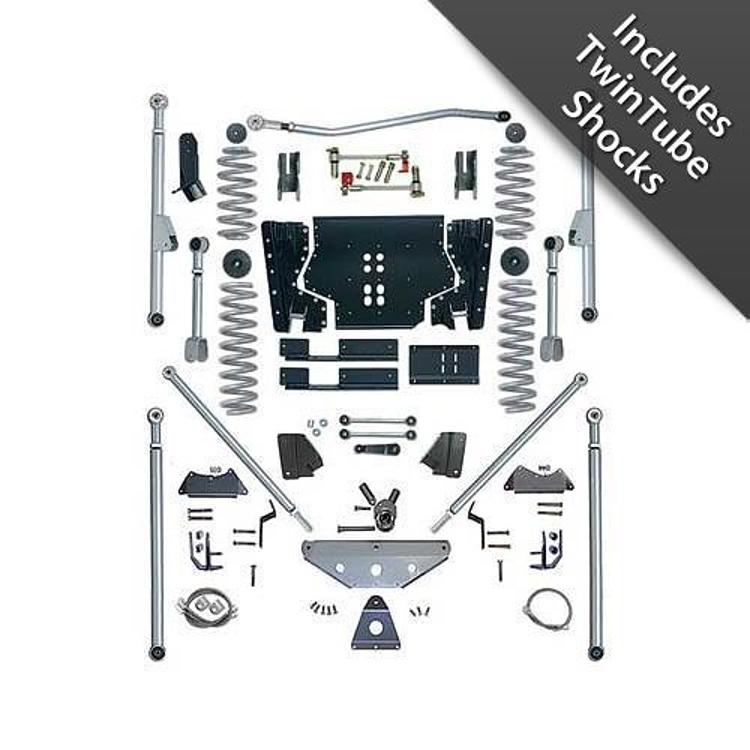

What’s included

  • Front and rear long control arms (4130 chromoly) with Super-Flex joints and PT-Meg Super-Ride bushings
  • Rear Tri-Link system with Builder Ball misalignment joint
  • Tuned lift springs
  • Twin-tube shocks
  • Three-piece belly pan

Check before ordering: Driveline parts such as a slip-yoke eliminator and CV driveshaft, extended brake lines and steering upgrades are not part of this kit. Plan for them separately if they are needed.

SKU: R/ERE7524T Category:

Specification

Shipping weight 434.65 lbs
Package dimensions 48.00 × 24.00 × 24.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ)2004–2006Unlimited, Unlimited Rubicon

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the RE7524T fit a Jeep Wrangler TJ?

No. This kit is built for the longer-wheelbase Wrangler Unlimited (LJ), for 2004–2006 models. Long arm systems for the short-wheelbase TJ are separate kits, so choose the kit made for your model.

What is the advantage of a long arm lift over a short arm lift?

Longer control arms keep the arm angles flatter when the Jeep is lifted. That generally gives a more stable ride, less torque roll and better traction, and it smooths out suspension movement on and off road compared with short-arm kits of similar height.

Does this kit remove the rear track bar?

Yes. The rear Tri-Link system locates the axle without a rear track bar, so the axle travels straight up and down. The Builder Ball joint allows up to 32 degrees of misalignment.

Are shocks and springs included?

Yes. The kit includes Rubicon Express tuned lift springs and twin-tube shocks, along with the control arms, Tri-Link and a three-piece belly pan.

Will it work with my rear axle?

The system is bolt-on for the factory Dana 35 and Dana 44 rear axles used in the Wrangler LJ. Aftermarket or swapped axles may need different brackets; check with Rubicon Express.

How do I know if my driveline needs a CV driveshaft?

Look at the angles at both ends of the rear driveshaft after installation and check for vibration at highway speed. Angles outside the normal range or vibration under load suggest the driveline needs work. A qualified shop can measure the angles.

Does a long arm kit change how the vehicle handles?

Yes, it changes steering and braking feel, so have the alignment checked after installation. Tire size and brake line length also affect how the lifted vehicle drives, so recheck them after the first trail runs.
