Rubicon Express 4.5 Inch Extreme Duty 4-Link Front/Rear Radius Long Arm Lift Kit – No Shocks – JK4R44

Rubicon Express

Shop Jeep Wrangler JK Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 4.5-inch extreme-duty 4-link front and radius rear long arm lift, no shocks
  • Adjustable chromoly upper and lower control arms with Super-Flex spherical ball joints
  • PT-Meg Super-Ride bushings and a full-width transmission crossmember
  • Designed for installation without welding
  • Fits 2007-2018 Jeep Wrangler (JK) models

Description

Overview

The Rubicon Express JK4R44 is a 4.5-inch extreme-duty long arm lift kit with a 4-link front and radius rear, sold without shocks. It fits the 2007-2018 Jeep Wrangler (JK) and is part of Rubicon Express’s JK suspension line. The adjustable chromoly upper and lower control arms use Super-Flex spherical ball joints and PT-Meg Super-Ride bushings.

The system keeps control and performance while leaving articulation unlimited. The full-width transmission crossmember adds durability and frame rigidity. The kit installs without welding, which keeps the install simpler than many long arm kits. Optional monotube shocks are offered for the system in 3.5-, 4.5- and 5.5-inch heights, and the lift range is 3 to 4.99 inches.

Key features

  • 4.5-inch lift height, within the 3 to 4.99-inch range
  • Extreme-duty 4-link front and radius rear layout
  • Adjustable chromoly upper and lower control arms
  • Super-Flex spherical ball joints
  • PT-Meg Super-Ride bushings
  • Full-width transmission crossmember
  • Designed for installation without welding
  • Optional monotube shocks and belly pan upgrades

Steering and brake clearance

Raising the body on long arms changes the angles that steering and braking components work through. Tie rods, drag links and brake hoses were set for stock geometry, so their length and clearance should be checked during the install. A quick look at steering play before and after the job helps catch problems early.

Once the arms are in, steering feel can change, especially at low speed and when turning from a stop. Ball joints and steering linkages that were already worn tend to show it first. Replacing aging steering parts while the vehicle is apart can save a second round of work later.

  • Check brake hose length at full suspension travel
  • Inspect tie rod ends and drag link for play
  • Look for steering wander after the first drive

Specifications

Brand Rubicon Express
Part number JK4R44
UPC 70000651253
System type Extreme-duty 4-link front and radius rear long arm
Lift height 4.5 inches (chart range 3 to 4.99 inches)
Rear lift method Radius arm
Control arms Chromoly upper and lower, adjustable
Joints Super-Flex spherical ball joints
Shocks Not included

Vehicle fitment

The kit fits the Unlimited and 4-door versions of the 2007-2018 Jeep Wrangler (JK).

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Moving to a radius rear and 4-link front changes control arm angles and pinion geometry, so the alignment and driveline angles should be checked once the kit is installed.

What’s included

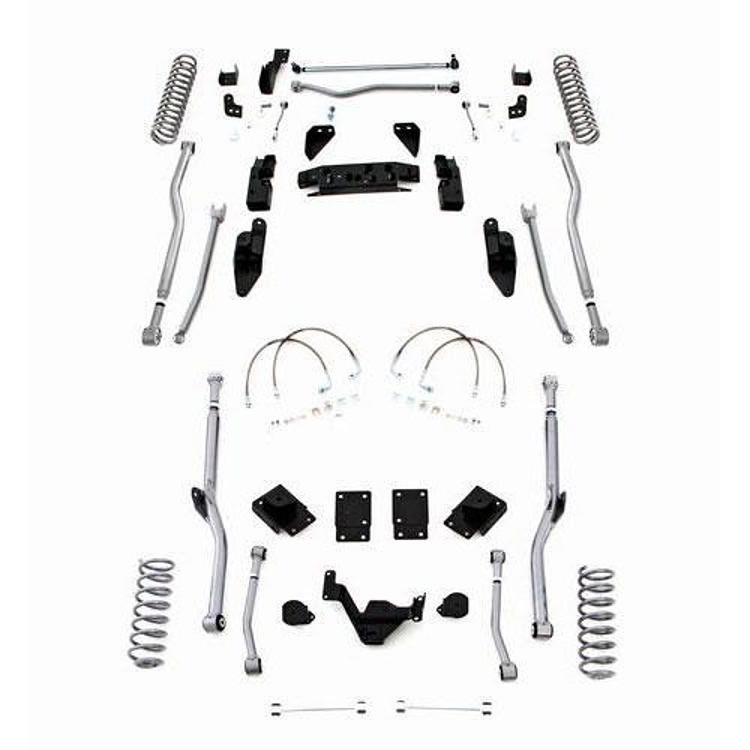

The kit’s core parts are the adjustable chromoly control arms, Super-Flex spherical ball joints, PT-Meg Super-Ride bushings and full-width transmission crossmember.

Not included: shock absorbers.

Optional high-performance monotube shocks are offered for this system, so a shock choice can be made after the arm set is chosen. The adjustable chromoly control arms, Super-Flex spherical ball joints and PT-Meg Super-Ride bushings form the core of the kit, and the full-width transmission crossmember adds rigidity to the drivetrain mounts.

SKU: R/EJK4R44 Category:

Specification

Shipping weight 296.30 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–2018Unlimited 70th Anniversary, Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S, Unlimited X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the JK4R44 include shocks?

No. The fitment details list shocks as not included, so existing shocks or a separate set will be needed for the 4.5-inch height. The fitment details list shocks as not included, so a separate set is needed.

What lift height is the JK4R44?

It gives 4.5 inches of lift, which is within the 3 to 4.99-inch range. Keep that height in mind when choosing shocks and other components.

Which years does the JK4R44 fit?

The fitment is for the 2007-2018 Jeep Wrangler (JK) only, with no other generation covered. Check that your year, model and trim match the kit before ordering.

Does this kit require welding?

No. The kit installs without welding, and the full-width transmission crossmember is part of the design that allows it. Plan for alignment checks afterward, since the arm geometry changes.

How can I tell if the steering parts need replacing?

Look for play at the wheel, clunking over bumps, or steering that wanders on the highway. Check tie rod ends and the drag link by hand with the vehicle safely supported. Replace any part that shows looseness or torn boots.

Is an alignment needed after the install?

Yes. The radius rear and 4-link front change caster and toe, so the vehicle should be aligned before regular driving. Ask for the driveline angles to be measured at the same visit.
