Overview
The Rock Hard 4×4 Parts Ultimate Sports Cage, part number RH-1001, is an unpainted bare steel cage that covers everything from the factory bar forward to the dash. It fits hard tops or soft tops and is a complete bolt-in cage that needs no drilling or welding.
The Sports Cage is built from 1-3/4 x .120 wall tubing and connects to the factory bars with clamping collars. It does not affect the factory windshield mounting, sun visors or top latches, and the windshield can still be folded down.
Key features
- Complete bolt-in design with no drilling or welding
- Covers the factory bar forward to the dash
- Top T-section, windshield side bars with handles and a bar across the dash
- Center bars joined by a 14 Gauge plate, which the brand says adds strength and room for a CB radio or dome light
- Handles do not block vision.
Before you install a bolt-in cage
A bolt-in cage relies on clamping collars and fasteners rather than welds, so the quality of each connection depends on how it is tightened. Before starting, lay out every collar, bracket and screw and confirm the parts match the factory bars and dash. Work through the connections in a logical order so no bracket is left loose while others are tightened.
Bare steel left unpainted will show surface rust in damp conditions. After installation, clean the metal, dry it fully and touch up any scratches from the collars with a suitable paint. Check the connections after the first few drives and again at each service interval, since vibration can slowly loosen fasteners.
- Tighten fasteners evenly and recheck after first drives
- Keep dash brackets clear of wiring and switches
- Keep spare fasteners together during installation
Specifications
| Brand | Rock Hard 4×4 Parts |
|---|---|
| Part number | RH-1001 |
| UPC | 70000364017 |
| Finish | Unpainted bare steel |
| Tubing | 1-3/4 x .120 wall |

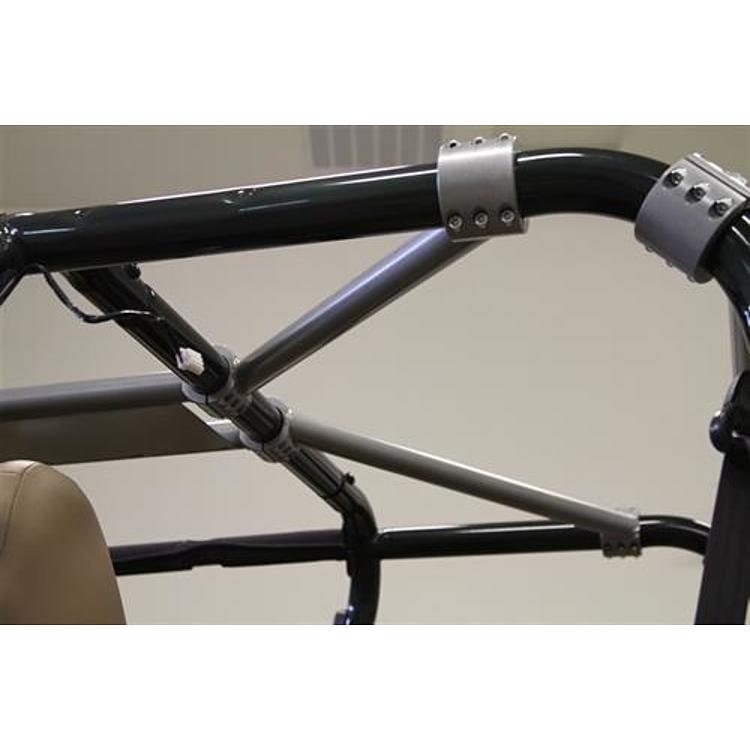

| Connection collars | 1/2″ thick CNC machined clamping collars |
| Hardware | Six 5/16 x 1″ grade 8 socket head cap screws |
| Center plate | 14 Gauge plate between the front top bar and the two center bars |
| Roof compatibility | Fits hard tops and soft tops |
| Installation | Bolt in, no drilling or welding |
| Origin | Made in the USA |
Vehicle fitment
Compare the cage with your roof type and factory bar layout before ordering. Confirm fit for your vehicle’s year, model and trim.
Confirm the model, year and trim of your vehicle before ordering.
Installation notes

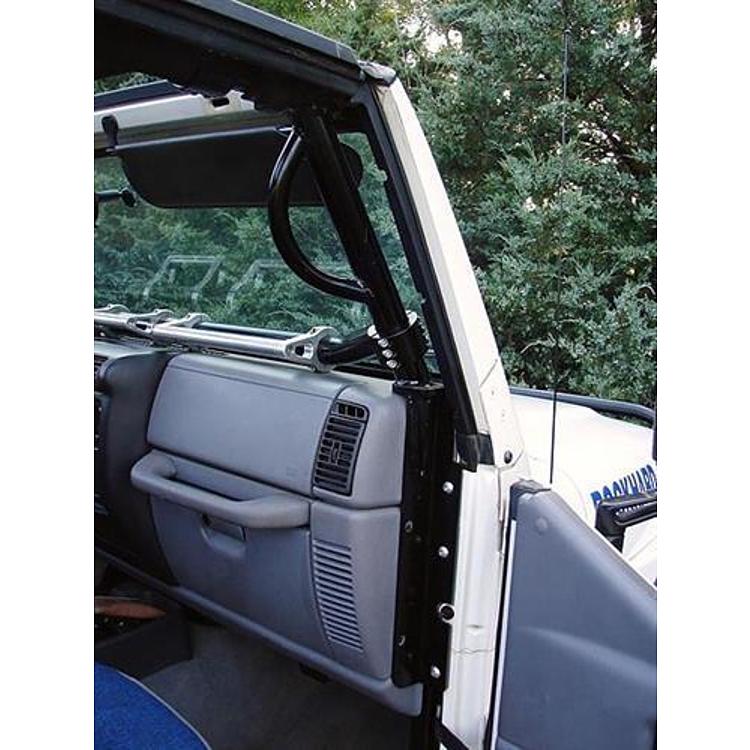

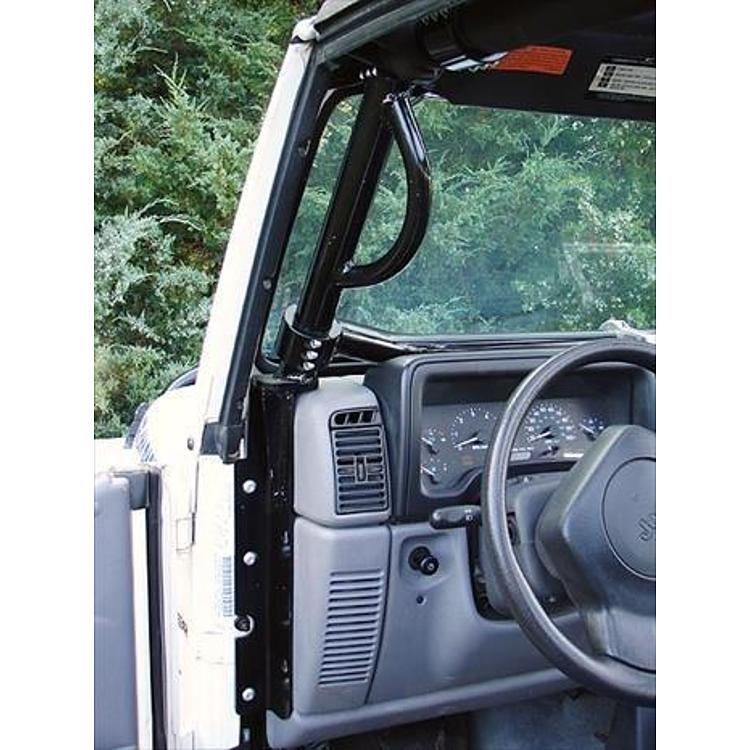

The cage installs without removing any of the factory sport cage. Dash brackets mount to the bolt below the dome light switch and the two bolts above the switch. Every connection to the factory bars uses the 1/2 inch thick clamping collars and six 5/16 x 1 inch grade 8 socket head cap screws, and all hardware is included.
Because the cage ties into the factory bars and sits close to the windshield, have a qualified installer confirm every connection before the vehicle is used off road.
What’s included

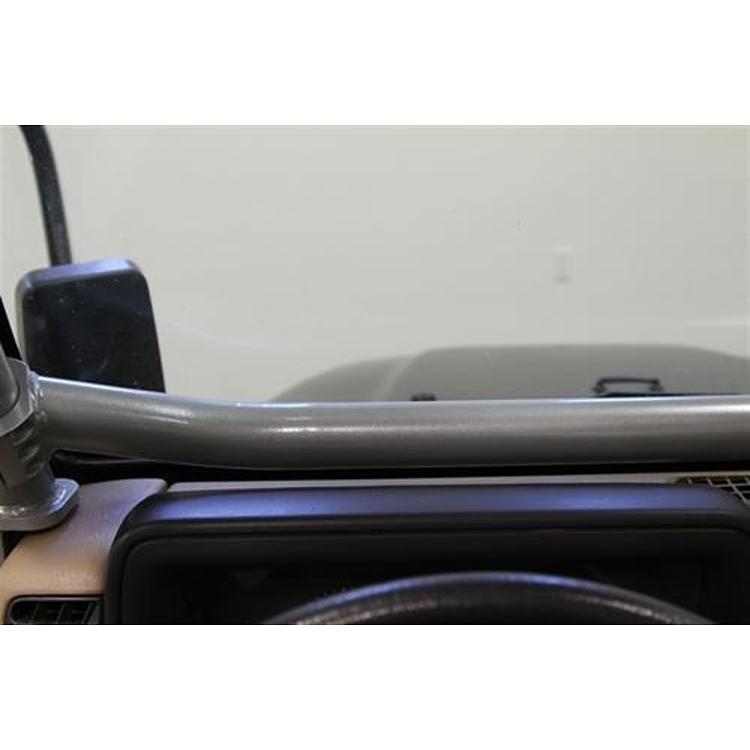

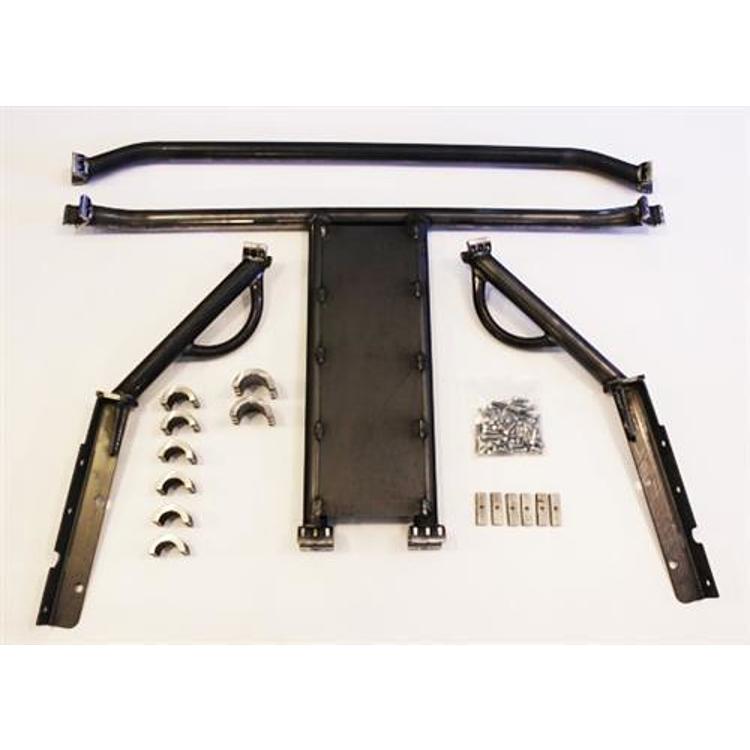

The kit includes the top T-section, windshield side bars with handles, and the bar across the dash, along with all hardware. Parts come unpainted.
Not included: rear cross bars behind the factory roll bar. Optional billet handles are not included.
