Overview
The Rock Hard 4×4 Parts Main Sport Cage, part number RH-1030-1L, is the main front section of a roll cage for 2011–2014 Jeep Wrangler (JK) models. It covers everything from the factory bar forward to the dash and fits hard tops or soft tops.
The kit includes the top front T-section, windshield side bars with handles, the bar across the dash and dash brackets, along with all hardware. The cage is supplied unpainted. It is a complete bolt-in design, but drilling is required, so plan for that step before starting.
Key features
- Covers everything from the factory bar forward to the dash
- Fits hard tops or soft tops
- Complete bolt-in design per the maker

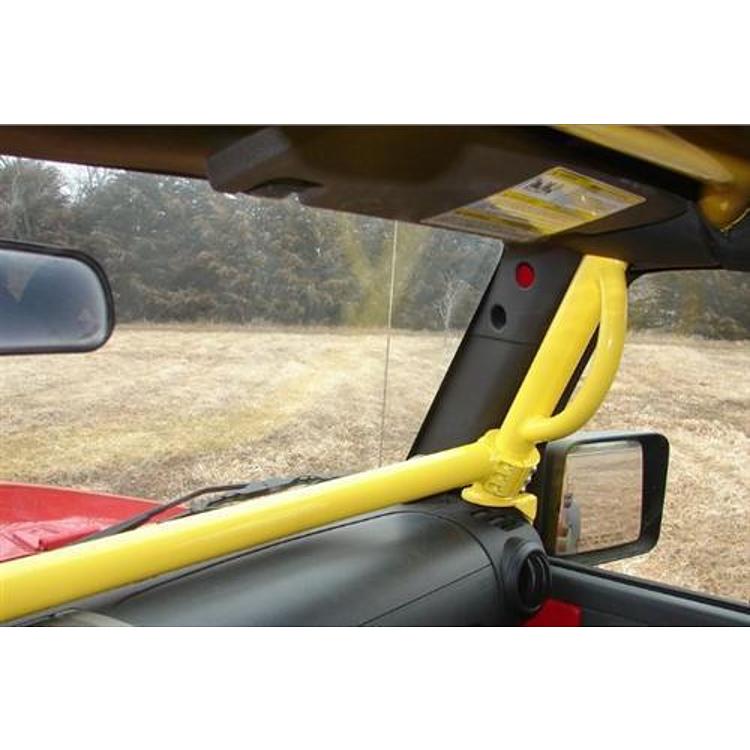

- Top front T-section, windshield side bars with handles and dash bar included
- Unpainted finish with all hardware included
- Made in the U.S.A.
Before the first trail run
A bolt-in front cage relies on many fasteners working together, so the first trail run is a useful checkpoint. Re-check every bolt, collar and bracket once the vehicle has been driven a short distance, since new hardware can settle. Pay attention to the dash brackets and center section, which carry the most load in a rollover.
Drilling for mounting points should be done carefully, with holes aligned and deburred before fasteners go in. Protect bare steel from moisture by sealing any drilled areas and touching up scratches. Inspect the windshield side bars for movement, and check that the top stays clear of the cage during normal use.
- Retighten fasteners after the first drive
- Deburr drilled holes before installing hardware
- Seal bare metal near drilled areas
Specifications
| Brand | Rock Hard 4×4 Parts |
|---|---|
| Part number | RH-1030-1L |
| UPC | 70000577174 |
| Coverage | Factory bar forward to the dash |
| Door configuration | 2-door and 4-door models |
| Dash brackets | Mount to the door frame along the dash panel with three bolts |
| Center section attachment | Bolts to main factory center and rear cross bars, 2 bolts on each end |
| Finish | Unpainted |
| Drilling | Required |
| Installation type | Bolt in |
| Origin | Made in the U.S.A. |
Vehicle fitment
It fits the 2011–2014 Jeep Wrangler (JK) in the 70th Anniversary, Rubicon, Sahara and Sport trims, and in the Unlimited 70th Anniversary, Unlimited Rubicon, Unlimited Sahara and Unlimited Sport trims.
Other Wrangler JK years, the Wrangler JL, and earlier Wrangler TJ and LJ models are not in this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes

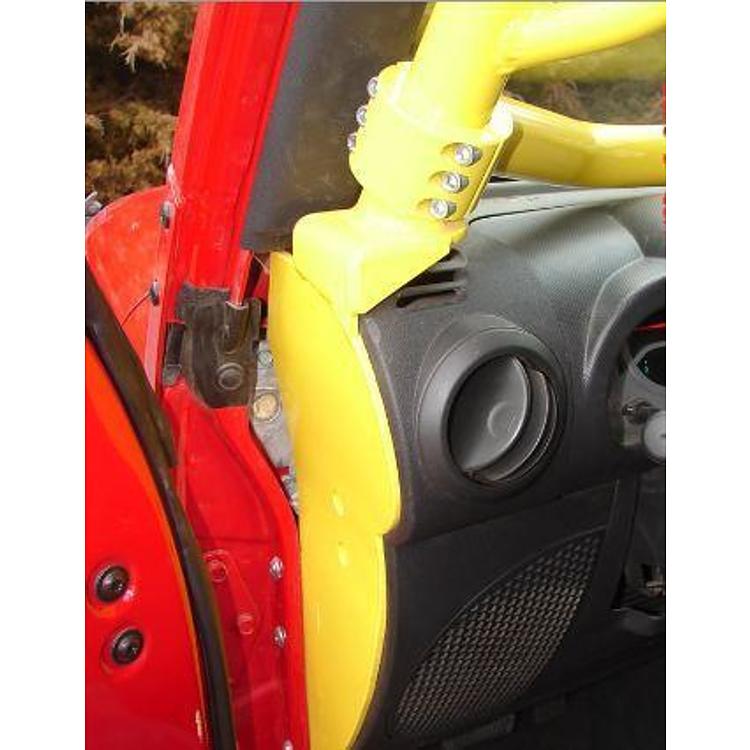

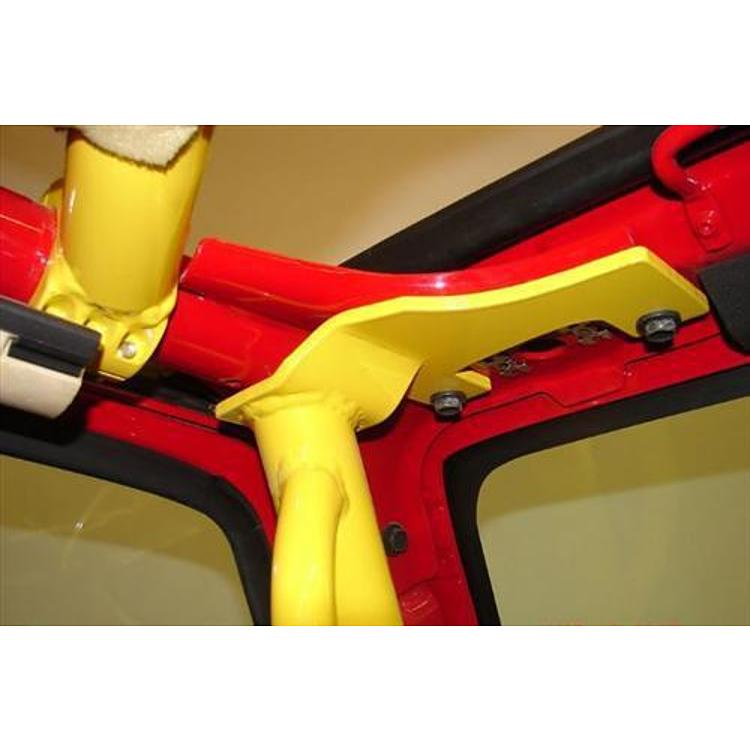

The dash brackets bolt to the door frame along the dash panel with three bolts. The center sections bolt to the main factory center and rear cross bars with two bolts on each end, and drilling is required. A roll cage protects occupants only when every bolt is fully tightened, so check each connection before driving.

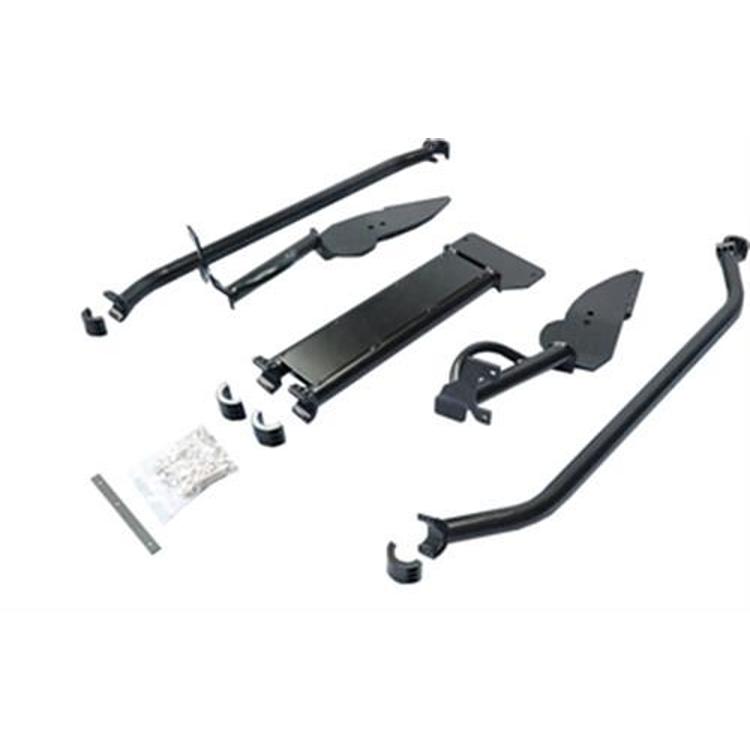

What’s included
Top front T-section, windshield side bars with handles, bar across the dash, dash brackets and all hardware, supplied unpainted.
