Rock Hard 4X4 Parts Ultimate Sports Cage – RH1002

Rock Hard 4x4 Parts

Shop Rock Hard 4X4 Parts Roll Cage on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rock Hard 4×4 Parts Ultimate Sports Cage, part number RH-1002, a complete bolt-in cage section from the factory bar forward to the dash
  • Fits with hardtops or soft tops; confirm model year before ordering
  • Tubing is 1-3/4 x .120 wall, unpainted
  • No drilling and no welding required
  • Includes top T-section, windshield side bars with handles, dash bar and all hardware

Description

Overview

The Rock Hard 4×4 Parts Ultimate Sports Cage, part number RH-1002, is a complete bolt-in roll cage section that runs from the factory bar forward to the dash. It fits with hardtops or soft tops.

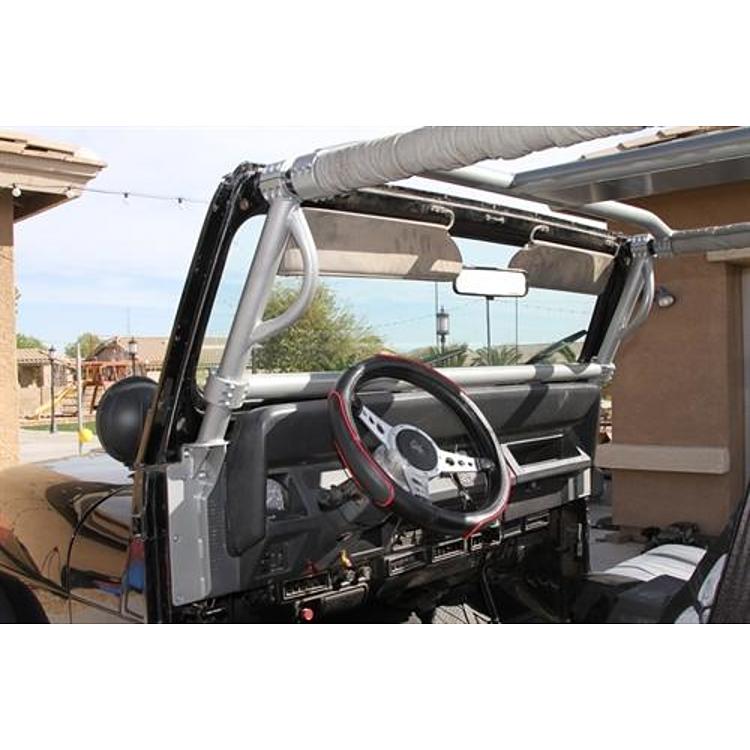

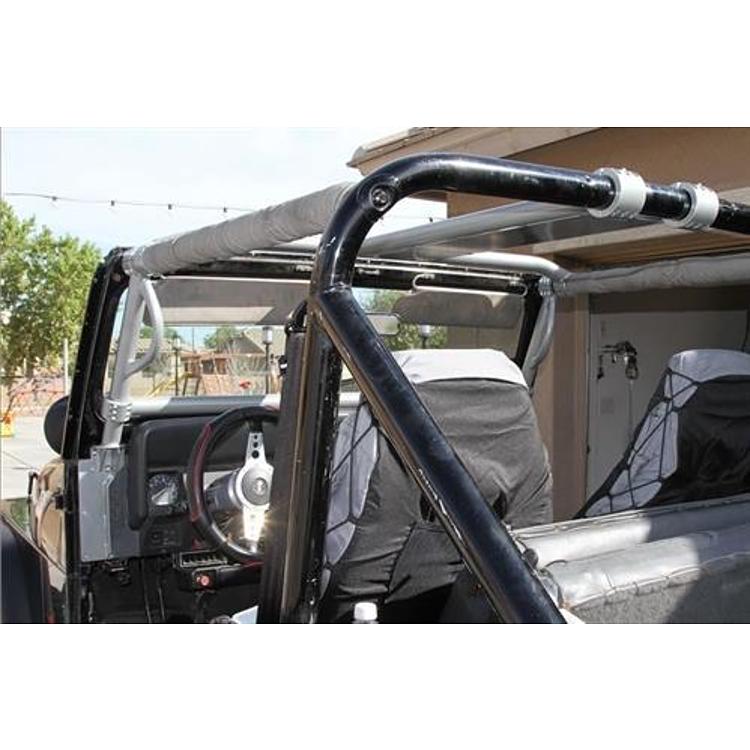

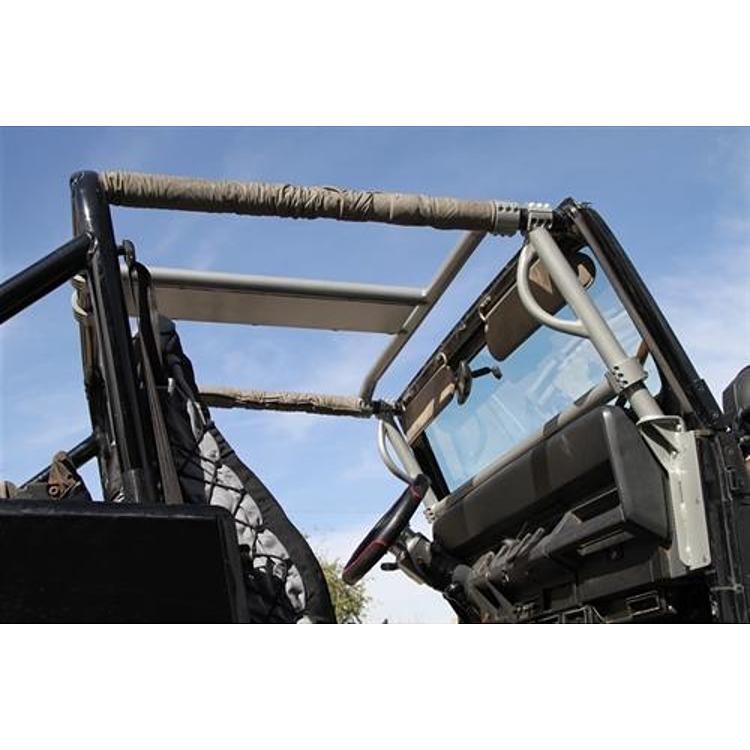

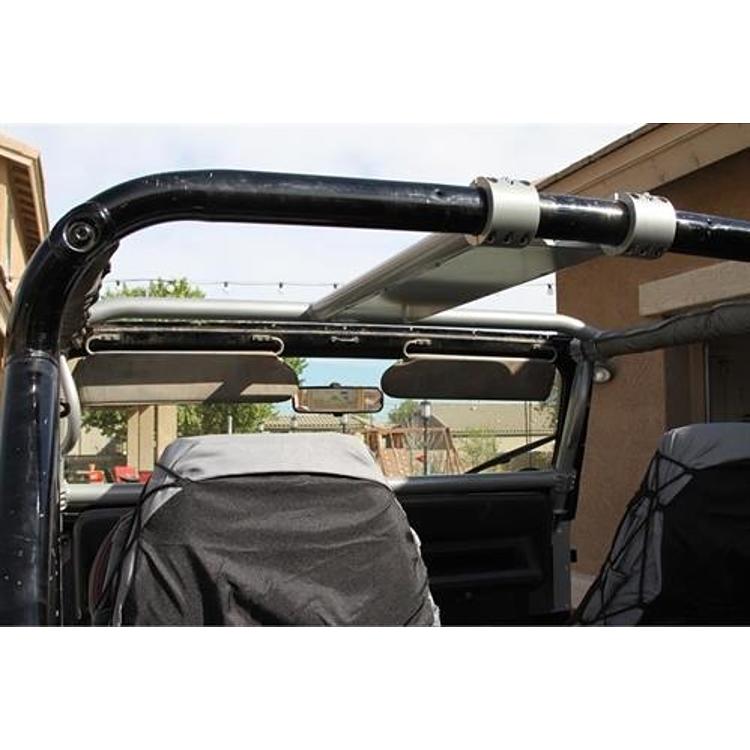

The cage connects to the factory bars through 1/2 inch thick CNC machined clamping collars, so the factory sport cage stays in place during installation. The kit uses a top T-section, windshield side bars with handles and a bar across the dash, with all hardware included.

Key features

  • Covers everything from the factory bar forward to the dash
  • Complete bolt-in design with no removal of the factory sport cage
  • No drilling and no welding required
  • Connections use 1/2 inch thick CNC machined clamping collars
  • Fits with hardtops or soft tops
  • Unpainted, with all hardware included
  • Made in the USA

Hardtop and soft top use

A roll cage is only as strong as its connections. Partial sections like a forward cage rely on clamping collars and brackets to share loads with the factory bars, so every fastener should be snug and evenly seated before the Jeep is used. Working through the connections in a set order, then rechecking them after the first few drives, helps the parts settle correctly.

Whether the Jeep runs a hardtop or soft top affects how the cage sits and how much clearance is available around the windshield and dash. A soft top may flex more at the roof, so pay attention to how the windshield side bars and dash bar move during use. Keep the top, doors and seats clear of the bars as you set the cage.

Over time, vibration and trail impacts can loosen collars and bolts. Check the collars, bracket bolts and tubing for scratches, dents or cracks after rough runs. Unpainted tubing can surface-rust in damp conditions, so wipe it down and keep an eye on joints where moisture collects.

  • Recheck collar bolts after the first trips
  • Inspect dash brackets for movement
  • Look for dents or cracks at bends
  • Keep hardware stored with the kit until installed

Specifications

Brand Rock Hard 4×4 Parts
Part number RH-1002
UPC 70000364028
Tubing 1-3/4 x .120 wall
Clamping collars 1/2 inch thick, CNC machined
Collar fasteners Six 5/16 x 1 grade 8 socket head cap screws
Finish Unpainted
Installation type Bolt in
Fitment type Direct fit
Origin Made in the USA

Vehicle fitment

The cage fits with hardtops or soft tops. Check your year, model and trim against the hardtop or soft top fit before you order.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

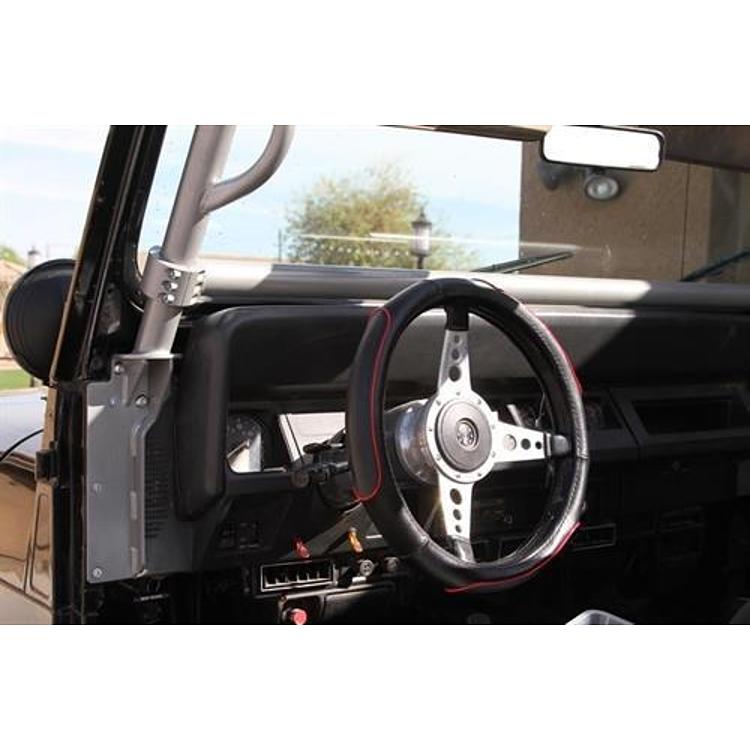

The dash brackets bolt in below the dome light switch and to the two bolts above it. Every connection to the factory bars is made with the included clamping collars, so the installation requires no drilling or welding.

A roll cage protects occupants only when every connection is fully tightened, so check each collar and bracket before driving.

What’s included

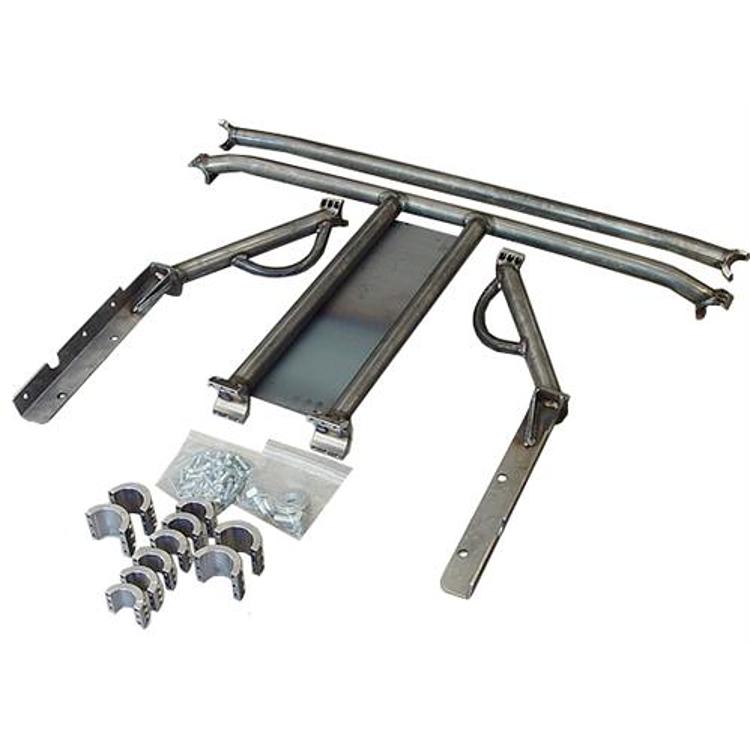

Top T-section, windshield side bars with handles, bar across the dash and all hardware.

SKU: RFPRH-1002 Category:

Specification

Shipping weight 65.90 lbs
Package dimensions 57.50 × 37.50 × 4.50 in
brands

Questions & Answers

Is the RH-1002 a complete roll cage?

It is the front section of the roll cage. The main Sports Cage covers everything from the factory bar forward to the dash and connects to the factory bars, so the rest of the cage is not part of this kit.

Does the Ultimate Sports Cage need drilling or welding?

No. It is a complete bolt-in cage section with no drilling and no welding, and the factory sport cage stays in place during installation. Connections are made with clamping collars.

Does the RH-1002 fit my Jeep?

Confirm fit first. It fits with hardtops or soft tops, so check your year, model and trim before ordering. Compare the dash bracket positions with your vehicle before installation.

What hardware comes with the RH-1002?

All hardware is included. That covers the clamping collar fasteners, six 5/16 x 1 grade 8 socket head cap screws, along with the top T-section, windshield side bars with handles and the bar across the dash.

Can I add other roll cage pieces later?

Yes, but any added section should be matched to this cage's collars and bracket points. Confirm the new parts connect to the existing bars and that load paths stay continuous. Mixing parts from different systems can leave weak joints, so plan additions as a complete setup.
