Overview

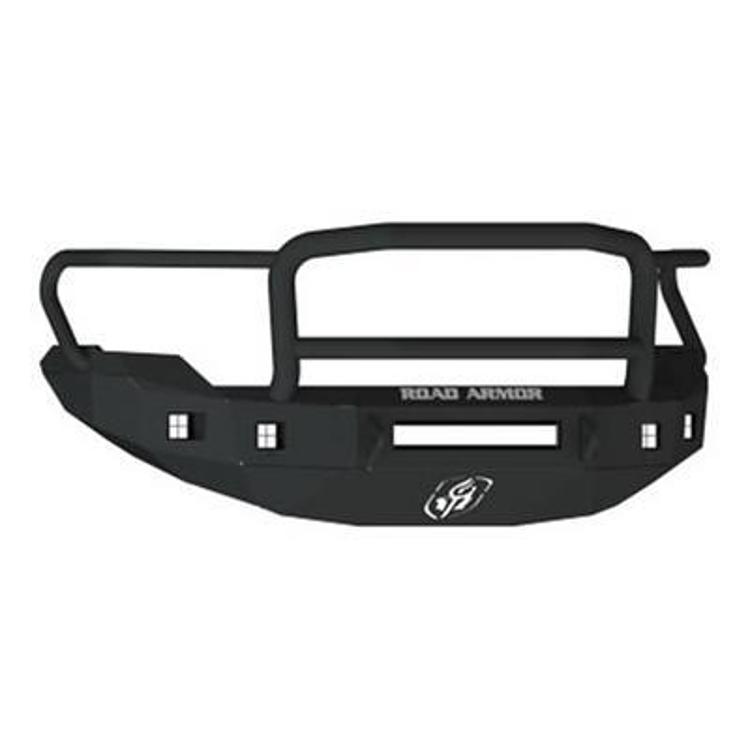

The Road Armor Stealth front non-winch Illuminator bumper with Lonestar guard, part number 613R5B-NW, is a satin black powder coated steel bumper for the 2009–2013 Ford F-150. It has no winch mount and is made for square lights.
Road Armor lists recessed light pods for Square Dually/D2 Series lights, a center light mount for a 20″ light bar, a fully welded top plate and fully welded front and back shackle mounts. Lights are not included.
Key features
- Lonestar Guard
- Center light mount for a 20″ light bar
- Recessed light pods for Square Dually/D2 Series lights
- Fully welded top plate
- Fully welded front and back shackle mounts
- Satin black powder coat, no winch mount
Lights and mounting plan
A non-winch front bumper with a center light mount and recessed pods gives the front of the truck a clean profile, but the light system needs planning before installation. Decide which lights go in the center mount and which go in the recessed pods, then check that the wiring, switch and fuse can handle the total load. Test each light on the bench before mounting the bumper.
Fully welded top plates and shackle mounts add rigidity, but they do not change how the lights are wired. Keep the wire routing clear of the steering components and moving suspension parts, and protect exposed wiring with loom. Satin black powder coat is durable, yet stone chips near the light pods should be touched up to prevent rust on the steel.
- Plan the light layout before mounting
- Test lights on the bench first
- Protect wiring with loom near moving parts
Specifications
| Brand | Road Armor |
|---|---|
| Part number | 613R5B-NW |
| UPC | 700007051401 |
| Product type | Front non-winch bumper, Stealth Illuminator |
| Guard style | Lonestar |
| Position | Front |
| Material | Steel |
| Finish | Powder coat, satin black |
| Width | Full |
| Winch mount | None |
| Light mounts | Center mount for a 20 inch light bar; square light pods |
| Outer shell | Faceted 3/16 |
| Guard tubing | .120-wall |
Vehicle fitment
It fits the 2009–2013 Ford F-150.
F-150 years before 2009 or after 2013 are not covered. Match the year and trim against your truck before ordering.
What’s included
- Stealth Illuminator front bumper with Lonestar Guard
- Center light mount
- Recessed square light pods
- Shackle mounts, fully welded
Not included: Lights, light bar and winch.
