Overview

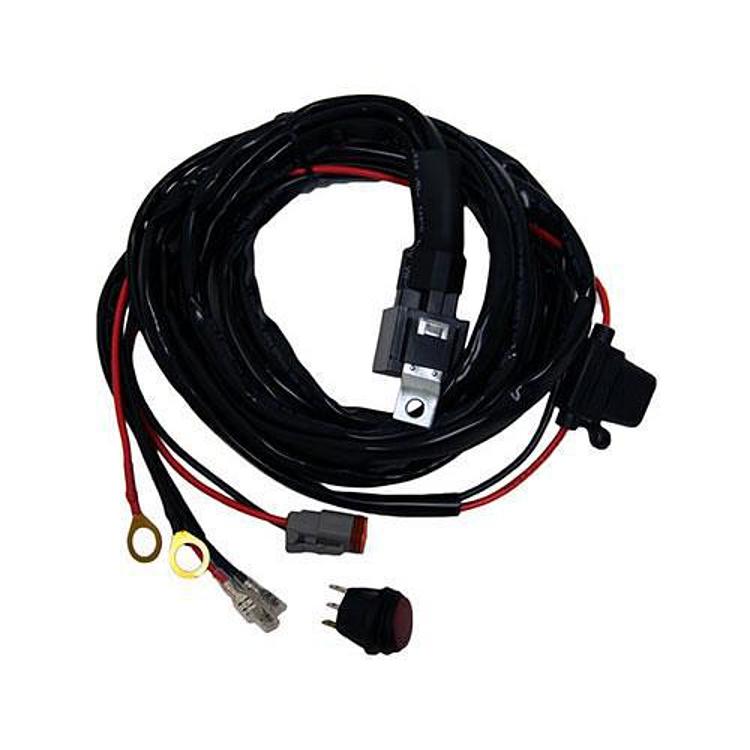

The Rigid Industries 40193 is an 11 foot wiring harness that connects one 10 to 30 inch LED light bar to a 12V electrical system. Battery terminals sit on one end, with a Deutsch connector on the other to plug into the light bar. The stated compatible bars are 10, 20, 30 and 40 inch E-Series and SR-Series models.
Key features
- 16 AWG wire for the power run
- Deutsch connector for the light bar end
- Inline fuse holder in the circuit
- 12 volt relay and waterproof switch
Choosing a matching setup
A light bar harness does two jobs: it carries current from the battery to the bar, and it lets the bar switch on and off safely. On a 12V system, run length and wire gauge decide how much voltage reaches the light, so route the run neatly and keep it away from sharp edges and hot components. Keep the fuse close to the battery so a fault anywhere along the run is protected.
Before buying, match the harness to the bar you plan to run. Bars in the 10 to 30 inch range draw different current, and the switch and relay should suit that load. If you later add a second bar or upgrade to a larger model, plan a separate circuit instead of stretching this one, because extra load on one harness can overheat the wire.
- Check bar series and size before ordering
- Route the 16 AWG run away from exhaust heat
- Re-check connector seating after rough trail use
Specifications
| Brand | Rigid Industries |
|---|---|
| UPC | 815711012972 |
| Length | 11 feet |
| Wire gauge | 16 AWG |
| Light connector | Deutsch |
| Fuse | Inline fuse holder |
| Relay | 12 volt |
| Switch | Waterproof |
| Compatible light bars | 10, 20, 30 and 40 inch E-Series and SR-Series |
| Fitment type | Universal fit |
Vehicle fitment
This harness has no vehicle listed and is universal fit. Its match depends on the light bar size, so choose a bar from the compatible list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Secure the 16 AWG run away from heat sources and moving parts, and keep the fuse holder near the battery end.
What’s included
Battery terminals, a Deutsch connector, an inline fuse holder, a 12 volt relay and a waterproof switch.
Not included: the light bar.
