Rigid Industries Ignite LED Spot Light Motorcycle Kit – Surface Mount (Black) – 20731

Rigid Industries

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Ignite spot motorcycle kit with High and Low settings
  • Surface mount with a GoPro style bracket for many mounting options
  • 1000 raw lumens per light, 6 to 28 VDC input
  • Pair of lights, wiring harness and sealed control switch included
  • IP68 compliant

Description

Overview

The Rigid Industries Ignite LED Spot Light Motorcycle Kit (part 20731, surface mount, black) is a pair of compact spot lights with a high and low setting, built for motorcycles. Each Ignite light packs 1000 raw lumens into a housing that measures 1.4 x 1.4 x 2 inches and weighs less than 4 ounces. Rigid says each light draws about 1 amp at full power.

The kit is meant for touring bikes, cruisers, dirt bikes and other bikes that need added forward light. Rigid offers the Ignite in spot and flood beam patterns, and this kit is the spot version. Because the lights mount with a GoPro style bracket, they can be placed in many locations on the bike.

Key features

  • Spot beam pattern for the Ignite motorcycle kit
  • High and low settings on the motorcycle kit
  • GoPro style mounting bracket that fits many GoPro mounts, sold separately
  • Low minimum voltage of 6 VDC, operating up to 28 VDC
  • IP68 compliant housing
  • Sealed control switch included for permanent mounting

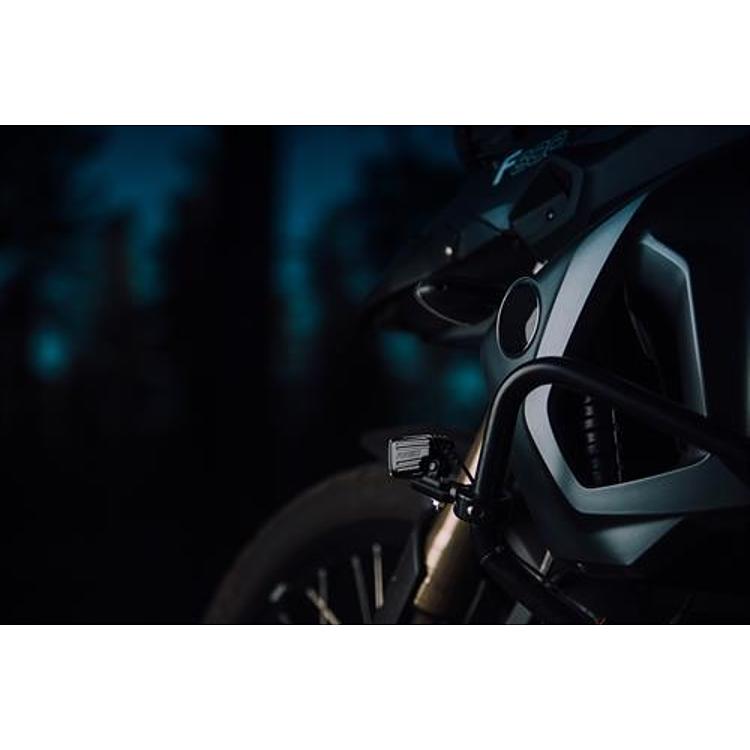

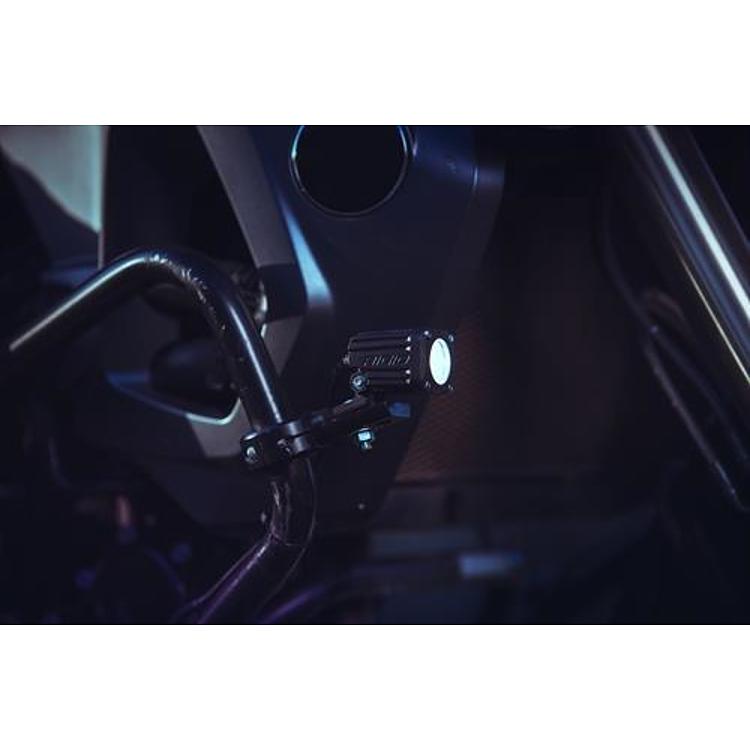

Motorcycle mounting and wiring

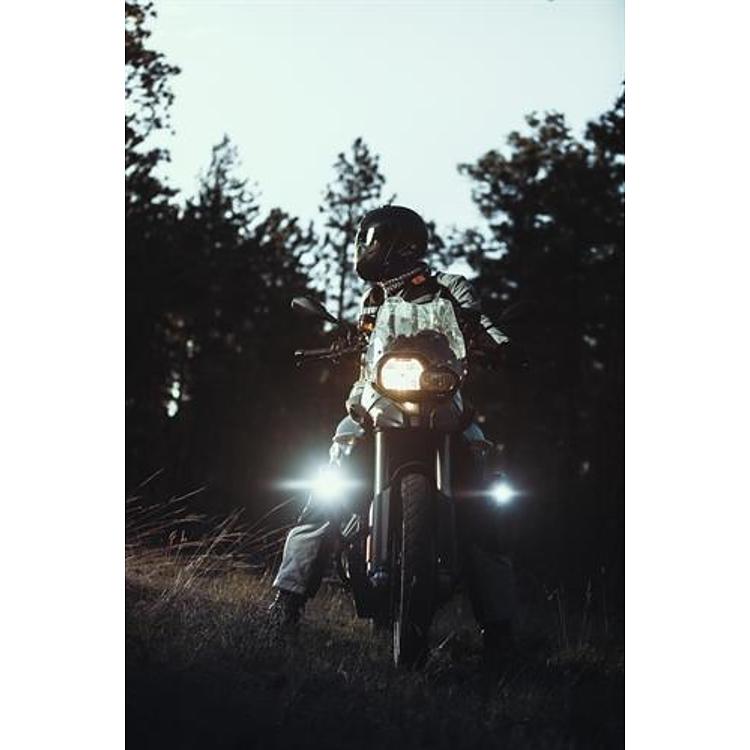

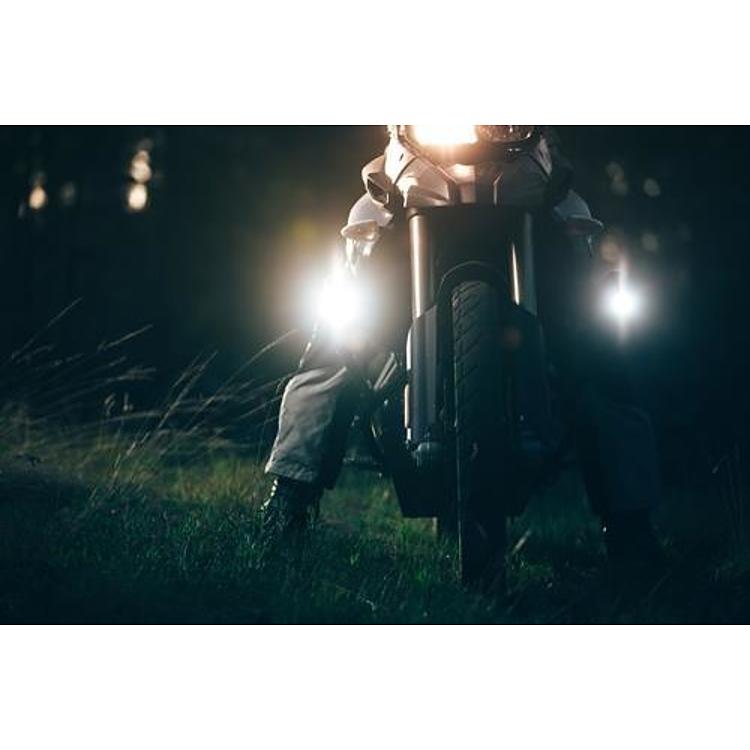

Auxiliary lights on a motorcycle face wind, rain, road grit and constant vibration, so the mounting spot matters. Choose a place where the light sits above the front wheel line for a clear forward view, and where the bracket has solid attachment. Keep the lights clear of the handlebar sweep, the front brake lines and any cable that could catch when the bars turn.

Wiring should be neat and protected. Run the harness along the frame, secure it with clips, and keep splices sealed against moisture. The sealed control switch lets the lights be run from one place on the bars, so the rider can turn them on and off without reaching. Check the connections periodically, since vibration can loosen terminals over time.

  • Mount above the front wheel line for a clear view
  • Keep lights clear of handlebar sweep and brake lines
  • Seal all splices against moisture

Specifications

Brand Rigid Industries
Part number 20731
UPC 849774015014
Light type LED, round lens, surface mount
Beam pattern Spot
Output 1000 raw lumens per light
Voltage 6-28 VDC
Current Less than 1 amp per light at full power
Size 1.4 x 1.4 x 2 inches
Weight Less than 4 ounces per light
Finish Black
Ratings IP68 compliant
Modes High and low

Vehicle fitment

This kit is designed for touring bikes, cruisers and dirt bikes. The GoPro style bracket allows placement in many locations on the bike. Confirm the bracket, mounting location and wiring route for your motorcycle’s year, model and trim before drilling.

Installation notes

The kit includes a wiring harness and a sealed control switch so the lights can be wired for permanent mounting. Use a fused connection and check local rules for auxiliary lights before riding on public roads.

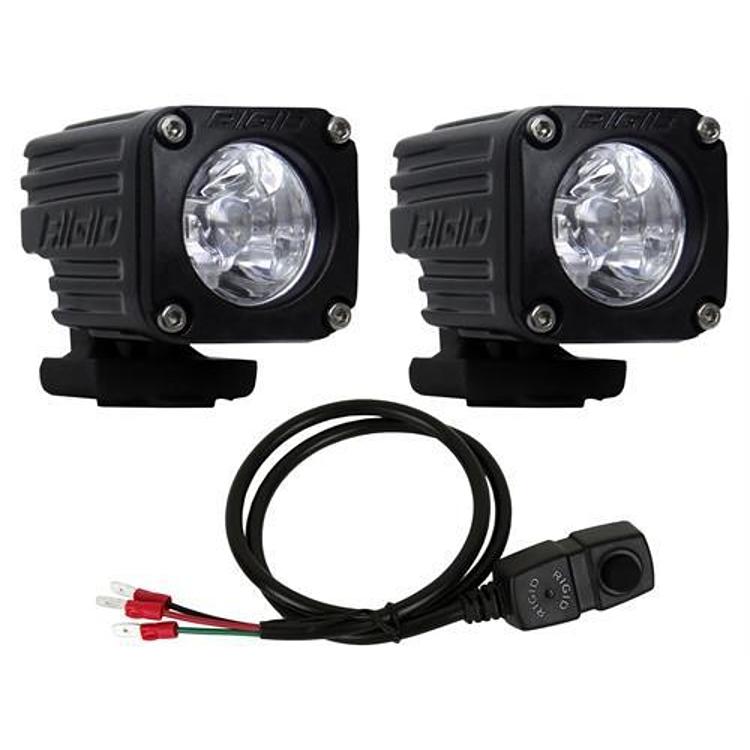

What’s included

A pair of Ignite spot lights, mounting brackets, related hardware, a wiring harness and a sealed control switch with high and low settings.

SKU: RIG20731 Category:

Specification

Shipping weight 1.00 lbs
Package dimensions 9.00 × 5.50 × 2.50 in
brands

Questions & Answers

Does the Ignite motorcycle kit include a switch?

Yes. The kit includes a sealed control switch with High and Low settings, along with a wiring harness, so the lights can be mounted and controlled as a permanent installation.

Is the Rigid Ignite motorcycle kit a spot or flood light?

This kit is the spot version, which Rigid describes as a concentrated forward beam. Rigid also offers the Ignite with flood optics.

How much power do the Ignite motorcycle lights draw?

Rigid says each light draws less than 1 amp at full power and runs on a low minimum voltage of 6 VDC up to 28 VDC, which is low enough for most motorcycle electrical systems to handle.

How do I keep motorcycle lights from draining the battery?

Wire the lights to switched power so they only run when the bike is on, or use the control switch as the on-off point. Check battery condition before long rides, and keep the connections sealed against moisture.
