Overview

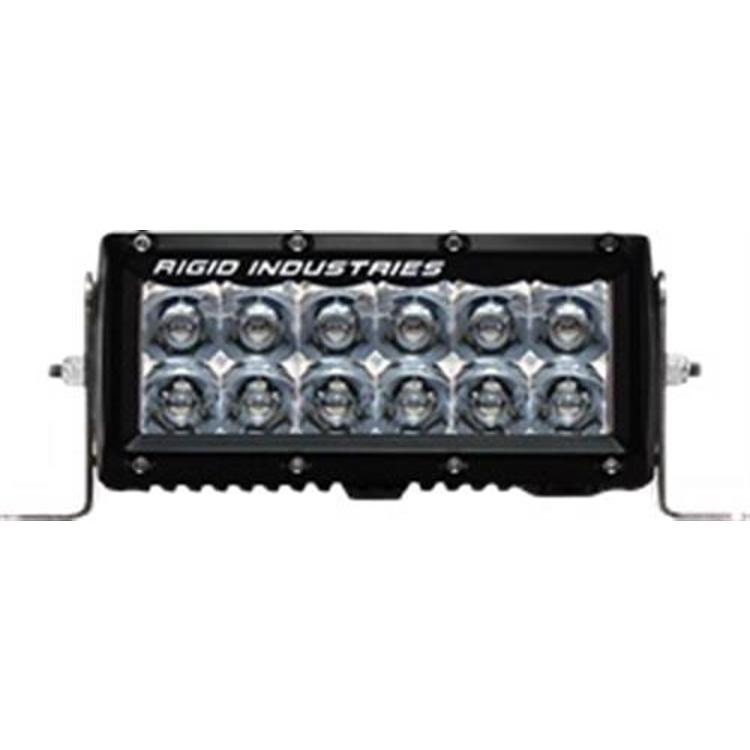

The Rigid Industries E-Series 6 Inch Spot LED Light Bar, part number 106222, is a single 6 inch LED light bar with a spot beam, a clear lens and bracket mounting. It is universal fit and is not tied to a specific vehicle.
The E-Series was the first projected LED light bar, introduced in 2006, and it is designed to project light at extreme distances while using very little power. The housing is extruded aluminum with a polycarbonate lens that is sealed against the elements.
Rigid Industries says E-Series light bars are available in a wide range of lengths and configurations; this part number is the 6 inch spot version.
Key features
- 6 inch LED light bar with a spot beam
- Clear lens
- Extruded aluminum housing
- Polycarbonate lens sealed against the elements
- Designed to project light at extreme distances with low power use
- Bracket mounting
Choosing a spot beam
A spot beam concentrates light into a narrow, far-reaching pattern, which suits trail and highway use where distance matters more than width. Pairing it with a wider light bar or a flood-style light can fill in the sides of the path. The E-Series design focuses on long throw with low power draw, so it is often mounted high on a bar or roof where it can see farther ahead.
Wiring is where most light bar installs go wrong. Use a fuse sized for the light, a relay or switch rated for the load, and wire routed away from heat, sharp edges and moving suspension parts. Seal every connection against water. Aim the beam low enough that it does not dazzle oncoming drivers, and re-check the bracket after the first drives.
- Confirm the bracket fits the mounting surface
- Plan the switch location before routing wire
- Check local rules for auxiliary lights
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 106222 |
| UPC | 849774003233 |
| Product type | LED light bar |
| Series | E-Series |
| Length | 6 inches |
| Beam | Spot |
| Bulb type | LED |
| Lens color | Clear |
| Housing | Extruded aluminum |
| Lens | Polycarbonate |
| Sold as | Single |
| Mounting type | Bracket |
| Size | 0 to 10 inches |
| Fitment | Universal |
Vehicle fitment
It is not vehicle-specific. It is universal fit with no year, make or model tied to it, so it works wherever its bracket mounting suits the application.
Rigid Industries says E-Series bars are used on light trucks and cars, race vehicles, farming equipment and rescue vehicles.
Make sure the bracket and 6 inch length suit your mounting location, and plan the wiring before installation. Before ordering, confirm the fit against your vehicle’s year, model and trim.
Installation notes
Wire the E-Series light bar through a correctly rated fuse and relay as the manufacturer directs, route wiring away from heat and moving parts, and aim the lights so they do not dazzle other drivers. Check local regulations before using auxiliary lighting on public roads, and re-check mounting hardware after the first miles of driving.
What’s included
One 6 inch spot LED light bar.
Not included: Wiring and a switch, which you will need to supply separately.
