Overview

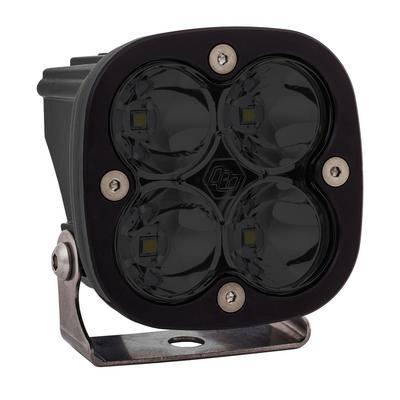

The Baja Designs Squadron Pro IR Driving LED Light Pod, part number 497093, is a 3-by-3-inch surface-mount light pod that puts out infrared light instead of visible light. Its 940-nanometer infrared LEDs let a driver light the trail without giving away the light to other people, and it is intended as a covert IR light for night use.
The Squadron Pro uses a billet machined aluminum bezel and a hard-coated polycarbonate lens. It meets MIL-STD-810G testing and carries IP69K waterproof and IK10 impact ratings. It has built-in overvoltage protection and mounts to the surface, so it does not need a cut-out in the body.
Baja Designs gives the LED life expectancy as 49,930 hours. The pod is part of the Squadron Pro series.
Key features
- 940 nm infrared LEDs for covert night lighting
- Compact 3-by-3-inch housing
- Surface mount with a black lens
- Billet machined aluminum bezel
- IP69K and IK10 ratings.
- Built-in overvoltage protection
Wiring an infrared pod safely
An infrared pod only earns its place when the vehicle carries equipment that can see its wavelength. Night-vision cameras and some thermal-capable devices pick up near-infrared light, so the setup should be tested with the camera before a trip. Without that gear, the light does nothing useful for the driver, which is worth knowing before buying one for general trail lighting.
Wiring is the next step. Run the power through a fused circuit with a switch the driver can reach, and keep the cable clear of the suspension, steering and any heat source. Surface mounting spares the body from cut-outs, but a bracket that flexes will fatigue its fasteners, so tighten and inspect them after the first rough sections. Owners who add a camera later often find the pod placement needs adjusting to frame the view.
- Test the camera view at night before mounting
- Inspect the lens after washing or trail mud
- Recheck bracket bolts after rough trails
Specifications
| Brand | Baja Designs |
|---|---|
| Part number | 497093 |
| Series | Squadron Pro |
| Mounting | Surface |
| Lens color | Black |
| Lens material | Hard-coated polycarbonate |
| Bezel | Billet machined aluminum |
| Light color | Infrared, 940 nm |
| Beam pattern | Driving |

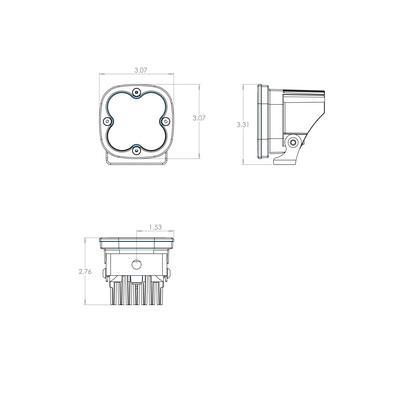

| Size | 3 by 3 inches |
| LED life expectancy | 49,930 hours |
| Waterproof rating | IP69K |
| Impact rating | IK10 |
Vehicle fitment
The Squadron Pro IR pod is a universal fit, not a light built for one vehicle. Because it mounts on a surface, the position is chosen by the owner. Its infrared output only helps with cameras or night-vision equipment that can see that wavelength.
Installation notes
Surface mounting avoids cutting the body, but the bracket and wiring still need a secure route. Use a fused circuit, and check local rules on infrared and auxiliary lights before using the pod on a road-going vehicle.
What’s included
The kit covers the single infrared pod. Check the package contents against your installation before starting, including the wiring and bracket you need.
