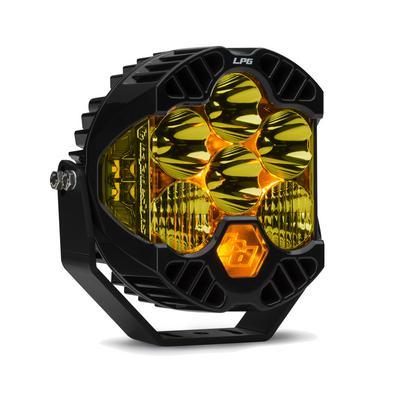

Baja Designs LP6 Pro Driving Combo LED Light (Amber) – 270013

Baja Designs

$434.36In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 17, 2026 11:20 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • LP6 Pro 6 inch driving combo light, amber
  • 10,300 total lumens with 8,600 forward and 1,700 peripheral
  • 90 watts, 6.5 amp draw, 49,930 hour LED life
  • Direct ducted cooling and integrated peripheral technology
  • IP69K and IK10 rated, exceeds MIL-STD810G

Description

Overview

The Baja Designs LP6 Pro Driving Combo LED Light (part 270013, amber) is a 6 inch driving light with 10,300 total lumens. It delivers 8,600 forward projecting lumens and 1,700 lumens of peripheral light, giving a 200 degree spread of usable light. The light is rated 90 watts with a 6.5 amp draw.

The LP6 uses Baja’s patented Integrated Peripheral Technology, which Baja says gives dedicated side lighting. Direct Ducted Cooling carries air through the front of the housing and over the rear heat sinks, which Baja describes as improving cooling capacity. The light carries built-in overvoltage protection and an amber daytime running light, so it can run as a day running light and switch to high power driving. Baja Designs rates the lens as hard coated polycarbonate and the bezel as billet machined aluminum. The amber daytime running light and the low and high power modes give the light a lot of flexibility.

Key features

  • Driving combo pattern with 42 degree wide driving optics and 6 degree spot optics
  • Integrated Peripheral Technology for 1,700 lumens of peripheral light
  • Direct Ducted Cooling for better heat management
  • Amber daytime running light
  • Low and high power modes
  • Hard coated polycarbonate front lens
  • Built-in overvoltage protection
  • IP69K waterproof, submersible to 9ft

Amber light and daytime use

An amber light is often chosen for daytime running and for conditions where a warm color helps reduce glare in dust, fog or snow. It can run as a daytime light and switch to high power when the driving conditions call for more output. Low and high modes give a way to manage the power draw when running on a single vehicle circuit.

The housing is built for weather and impact, but mounting and wiring still need attention. Use a fuse for the power feed, route the wiring away from heat and moving parts, and keep the connections sealed. Check the bezel and lens after rough trips and clean them with water, since mud and grit can reduce the light output over time.

Specifications

Brand Baja Designs
Part number 270013
Series LP6 Pro
Light color Amber
Beam pattern Driving combo (42 degree wide driving and 6 degree spot)
Output 10,300 total lumens; 8,600 forward; 1,700 peripheral
Power 90 watts; 6.5 amp draw
LED life 49,930 hours
Size 6 inch
Mounting Surface
Bezel Billet machined aluminum
Housing color Black
Ratings IP69K; IK10 compliant; exceeds MIL-STD810G
Sold as Single

Vehicle fitment

This driving light is universal and is not built for one vehicle. It can be mounted on trucks, Jeeps and other vehicles. Confirm the surface mount and wiring route before drilling.

Installation notes

The light uses a surface mount and a 6.5 amp draw. Fuse the power feed and check local rules before using driving lights on public roads.

What’s included

One LP6 Pro driving combo light in amber, with its billet machined aluminum bezel.

Questions & Answers

Is the Baja Designs LP6 Pro sold in a pair?

No. Baja Designs sells the LP6 Pro as a single light, so a pair takes two separate purchases. Each light is rated 90 watts with a 6.5 amp draw, so plan the wiring for that load.

How waterproof is the LP6 Pro?

Yes. It is rated IP69K and is waterproof, submersible to 9ft. It also carries IK10 compliance and exceeds MIL-STD810G testing.

What is the difference between the driving and spot optics?

The driving combo uses a 42 degree wide driving optic for near field light and a 6 degree spot for distance. The spot pattern reaches further down the trail or road.

What maintenance does an LP6 Pro need?

Clean the lens and bezel with water after muddy trips, and inspect the mount and wiring for damage. Keep connections sealed and recheck the bolts periodically, since vibration can loosen fasteners on rough terrain.
