Rancho RS9000XL Series Suspension Strut Assembly – RS999838

Rancho

Shop Ford F-150 Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rancho RS9000XL front strut assembly, part number RS999838
  • Fits 2014–2018 Ford F-150 trucks as a direct fit
  • Gas charged with 9-position adjustment knob
  • 2.75 in. (70mm) tri-tube body and 18mm Nitro-Carb rod
  • Labeled for RS66500B, RS66505B and RS66519B suspension systems

Description

Overview

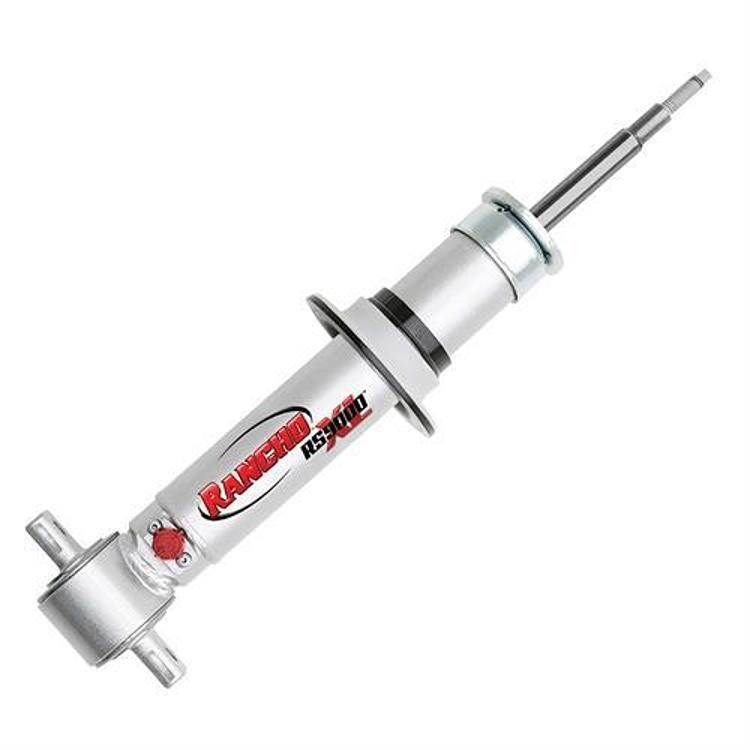

The Rancho RS9000XL front strut assembly, part number RS999838, is a gas-charged strut for 2014–2018 Ford F-150 trucks. It is made for the RS66500B, RS66505B and RS66519B suspension systems.

The RS9000XL is a nine-position adjustable ride control strut. Its adjustable damping counteracts the extra unsprung mass of large tire and wheel combinations. It suits on-road and off-road driving and towing, and it is engineered and manufactured in the U.S.

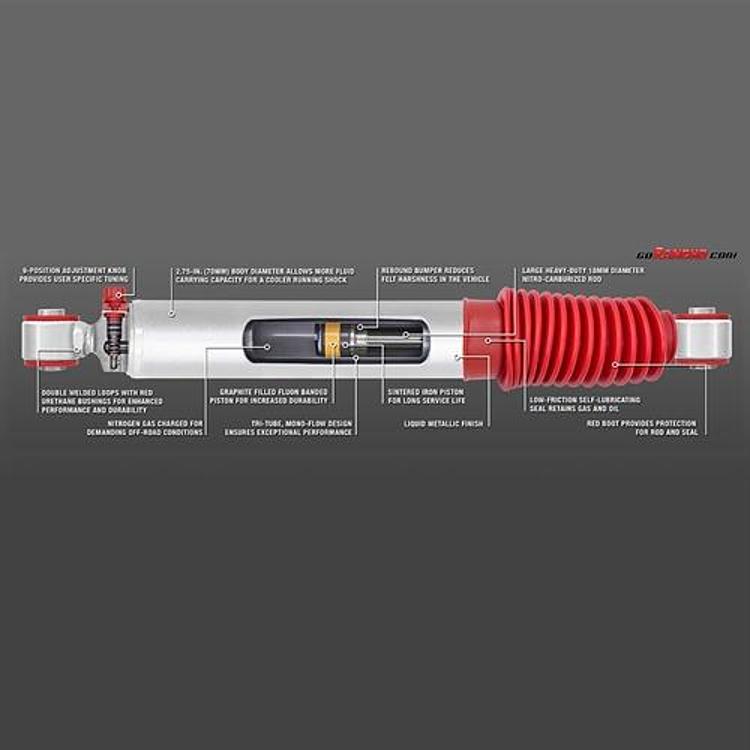

Build details include gas pressurization, a graphite-filled, Fluon banded piston, a 1 1/4 in. diameter sintered iron piston, a low-friction self-lubricating seal and a rebound bumper. Double-welded loops and a protective boot complete the unit.

Key features

  • Nine-position adjustment knob for tuning damping
  • Large 2.75 in. (70mm) tri-tube body
  • Heavy-duty 18mm Nitro-Carb rod
  • Gas pressurized with a graphite-filled, Fluon banded piston
  • Low-friction, self-lubricating seal and rebound bumper
  • Protective boot and double-welded loops

Choosing a strut for large tires

A front strut does two jobs at once: it carries part of the truck’s weight and it controls how quickly the suspension compresses and rebounds. On a heavier truck with large tires, that control matters more, because the wheel and tire assembly has more mass to slow down. Adjustable damping lets you match the strut to the terrain, with firmer settings for highway speed and softer settings for rough trails or towing. Changes in tire size, load and wheel weight all shift that balance, so it is worth revisiting the setting after any of these changes.

Gas-charged struts keep the damping fluid under pressure, which helps reduce foaming during repeated hard compressions. Heat builds up on longer off-road runs, so a strut that works well on pavement can feel firmer after a long descent. Check the mounting hardware, the boot and the strut body for leaks or damage after rough use, and replace struts in pairs when wear shows up on one side so the truck rides evenly.

  • Inspect the protective boot for tears and grit
  • Look for oil residue along the strut body
  • Check upper and lower mount bushings for play

Specifications

Brand Rancho
Part number RS999838
Series RS9000XL Series
Position Front
Fitment type Direct fit
Body 2.75 in. (70mm) tri-tube
Rod 18mm Nitro-Carb
Piston 1 1/4 in. diameter sintered iron piston
Piston band Graphite-filled Fluon banded
Hydraulic / gas charged Gas charged
Tuning 9-position adjustment knob
Finish Liquid metallic
Boot Protective boot
Warranty Limited Lifetime Warranty

Vehicle fitment

It is a direct fit for 2014–2018 Ford F-150 trucks in FX4, King Ranch, Lariat, Limited, Platinum, SSV, STX, XL and XLT trims.

Other F-150 generations are not covered by this strut. Verify your truck’s year, model and trim before ordering.

Installation notes

Because this strut is matched to specific suspension systems, confirm your setup matches the RS66500B, RS66505B or RS66519B system before installation. Gas-charged struts are under pressure, so wear eye protection and handle the unit with care during removal and disassembly. Have the front alignment checked after the job.

What’s included

Front strut assembly with protective boot and double-welded loops, for part number RS999838.

Not included: The RS66500B, RS66505B and RS66519B suspension systems are separate products and are not part of this strut.

SKU: RANRS999838 Category:

Specification

Shipping weight 13.85 lbs
Package dimensions 28.00 × 5.80 × 5.80 in
brands

Fitment

VehicleYearsTrims
Ford F-1502014–2018FX4, King Ranch, Lariat, Limited, Platinum, SSV, STX, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Rancho RS999838 fit a 2014 to 2018 Ford F-150?

Yes. It is a direct fit for 2014–2018 Ford F-150 trucks in FX4, King Ranch, Lariat, Limited, Platinum, SSV, STX, XL and XLT trims. Verify your truck's year, model and trim before ordering.

Which suspension systems is this strut made for?

It is labeled for the RS66500B, RS66505B and RS66519B suspension systems. Those systems are separate products, so check that your existing setup matches one of these part numbers before you install the strut.

What are the body size and rod size of the RS9000XL front strut?

The body is 2.75 in. (70mm) tri-tube and the rod is 18mm Nitro-Carb. The strut has a nine-position adjustment knob, is gas charged and has a liquid metallic finish with a protective boot.

How do I know when the front struts need replacing?

Look for leaking fluid on the strut body, a bouncy ride after bumps, uneven tire wear, or a nose that dives hard when braking. Any of these signs suggests the damping has worn. Inspect the mounts and boot at the same time, since a torn boot lets grit reach the rod seal.
