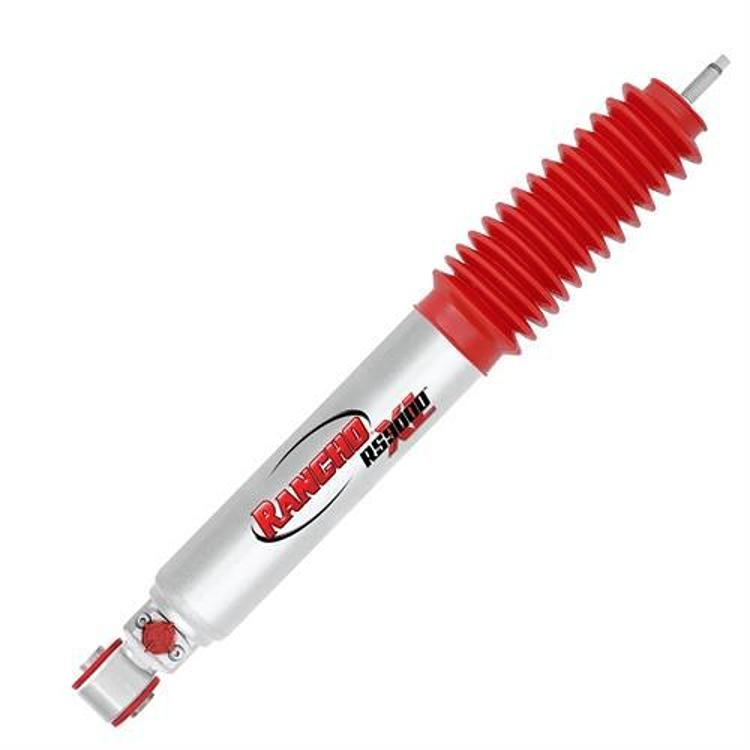

Rancho RS9000XL Series Shock Absorber – RS999145

Rancho

Shop Toyota Pickup Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Front RS9000XL Series shock absorber, part number RS999145, for Toyota trucks
  • Fitment per manufacturer list: 1986-1995 Toyota 4Runner and Pickup, 1993-1998 Toyota T100
  • 9-position myRide manual/remote tuning with an 18mm chrome rod
  • 2.75-in. (70mm) body diameter, nitrogen gas charged
  • Rated for 0 to 1 in. of lift; protective boot included

Description

Overview

The Rancho RS999145 is a front RS9000XL Series shock absorber for 1986 to 1995 Toyota 4Runner and Pickup trucks and 1993 to 1998 Toyota T100 models, as shown on the manufacturer fitment list.

Rancho built this shock around a 2.75-inch (70mm) body and an 18mm chrome rod, and added a myRide 9-position manual/remote tuning system so drivers can pick a damping setting for daily road use or rougher trail work. The body is nitrogen gas charged and finished in a liquid metallic coating. The rated lift range is zero to one inch, which suits stock or lightly lifted Toyota trucks rather than larger suspension builds.

Key features

  • Nine damping positions, set by hand or with the remote tuning option
  • Nitrogen gas charged body
  • 18mm chrome rod diameter, described by Rancho as a large Nitro Carb rod
  • 2.75-inch (70mm) body diameter
  • Polyurethane bushings
  • Protective boot included

Toyota trail and daily use

On a Toyota 4Runner or pickup, a front shock does much of the work of keeping the front tires planted over washboard, ruts and braking. Because the lift range here is zero to one inch, this type of shock suits trucks close to stock height. If the front end has been raised more, the shock geometry changes and a different setup usually works better.

The nine damping positions let you choose firmer control for loaded trips or softer comfort for daily commuting. Dust and grit reach the rod quickly on trail trips, so wipe the rod after dusty runs and check the boot for splits. Front shocks often wear alongside the front bushings and steering components, so inspect them together when the truck starts to wander.

  • Look for oil on the body or a dented rod
  • Check the front bushings for cracking
  • Re-check mounting bolts after the first few drives

Specifications

Brand Rancho
Part number RS999145
UPC 10039703091456
Shock series RS9000XL
Position Front
Body diameter 2.75 in. (70mm)
Rod diameter 18mm chrome
Tuning 9-position manual/remote (myRide)
Charge Nitrogen gas charged
Lift rating 0 to 1 in. lift
Finish Liquid metallic
Bushings Polyurethane.
Boot Protective boot included
Warranty Limited Lifetime Warranty

Vehicle fitment

It fits 1986 to 1995 Toyota 4Runner in DLX and SR5 trim, 1986 to 1995 Toyota Pickup in Base, Base Turbo, DLX, SR5 and SR5 Turbo trim, and 1993 to 1998 Toyota T100 in Base, DLX, DX and SR5 trim. Match the trim badge on your truck to those names.

Tacoma models and 4Runners from 1996 onward are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The lift rating runs from zero to one inch, so confirm the lift against a taller suspension before choosing this shock.

What’s included

One RS999145 front shock absorber with its protective boot.

Not included: Check the mounting hardware against your installation before starting.

SKU: RANRS999145 Category:

Specification

Shipping weight 4.70 lbs
Package dimensions 24.10 × 3.30 × 3.10 in
brands

Fitment

VehicleYearsTrims
Toyota 4Runner1986–1995DLX, SR5
Toyota Pickup1986–1995Base, Base Turbo, DLX, SR5, SR5 Turbo
Toyota T1001993–1998Base, DLX, DX, SR5

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Rancho RS999145 fit a 1990 Toyota 4Runner?

Yes. 1990 falls within the 1986 to 1995 4Runner range, for DLX and SR5 trims. Confirm your year, model and trim before ordering.

Is the RS999145 a front or rear shock?

It is a front shock. The position is front, and it belongs to the RS9000XL Series with a 2.75-inch body and an 18mm chrome rod.

How many damping positions does it have?

It has 9 positions through the myRide manual or remote tuning system, so you can set firmness by hand or with the remote option. Confirm the setting you want on a familiar road after fitting.

How do I tell if the front shocks on my Toyota are worn?

Common signs include excess bounce after a bump, nose dive under braking, cupped front tire wear and oil on the outside of the body. A quick bounce test at each front corner shows whether the shock settles after one or two rebounds.
