Overview

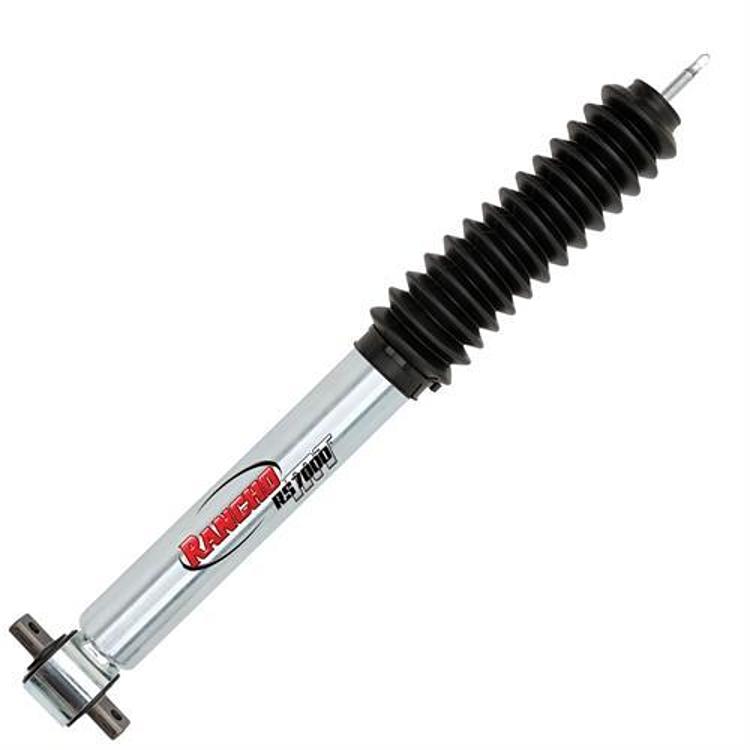

The Rancho RS7061 is a front gas charged monotube shock in the RS7000MT series for Jeep Wrangler TJ and LJ models. The listed TJ years run from 1997 through 2006, and the LJ years are 2004 through 2006 for Unlimited and Unlimited Rubicon trims.
The lift range is 5 to 6 in. It uses ten stage velocity-sensitive valving on a 1.97 in (50 mm) body with a 14mm chrome rod, and the damping is built to respond to rough off-road ground.
Key features
- Ten stage velocity-sensitive valving
- Gas charged monotube design
- 14mm chrome rod
- Brushed-zinc clear coated finish
- Made in America.
- Designed for a 5 to 6 in lift
Wrangler lift and alignment
A front shock on a Wrangler works hard on rocky trails, and the damping has to control axle movement without making the ride harsh on pavement. A monotube gas charged body helps resist fade on long grades and repeated articulation, which is common on trail use.
Lift height changes the shock’s working range and the angles of the control arms and driveline. Check that your lift falls in the 5 to 6 in range before ordering, and compare the mounting points with the old shock. Worn bushings and steering parts can make a new shock feel loose, so inspect them at the same time.
After any lift height change, have the front alignment and brake line length checked. Inspect the boot for tears after trail runs, and wash mud from the rod to keep the seal clean. Replace front shocks in pairs for even steering feel.
Specifications
| Brand | Rancho |
|---|---|
| Part number | RS7061 |
| UPC | 39703003070 |
| Shock series | RS7000MT Series |
| Position | Front |
| Fitment type | Direct fit |
| Lift range | 5 to 6 in |
| Hydraulic type | Gas charged |
| Valving | Ten stage, velocity-sensitive |
| Body diameter | 1.97 in (50 mm) |
| Rod | 14 mm chrome |
| Finish | Brushed-zinc clear coat |
| Made in | America |
Vehicle fitment
The fitment covers the 2004–2006 Jeep Wrangler (LJ) in Unlimited and Unlimited Rubicon trims, and the 1997–2006 Jeep Wrangler (TJ) in 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X trims.
The TJ list ends at 2006 and the LJ list covers 2004 to 2006 only, so the JK generation (2007 and later) is not shown as covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Confirm that your lift falls within the 5 to 6 in range before ordering. Have alignment checked on the Wrangler after any lift height change.
What’s included
A Rancho RS7061 front shock with its protective components.
