Overview

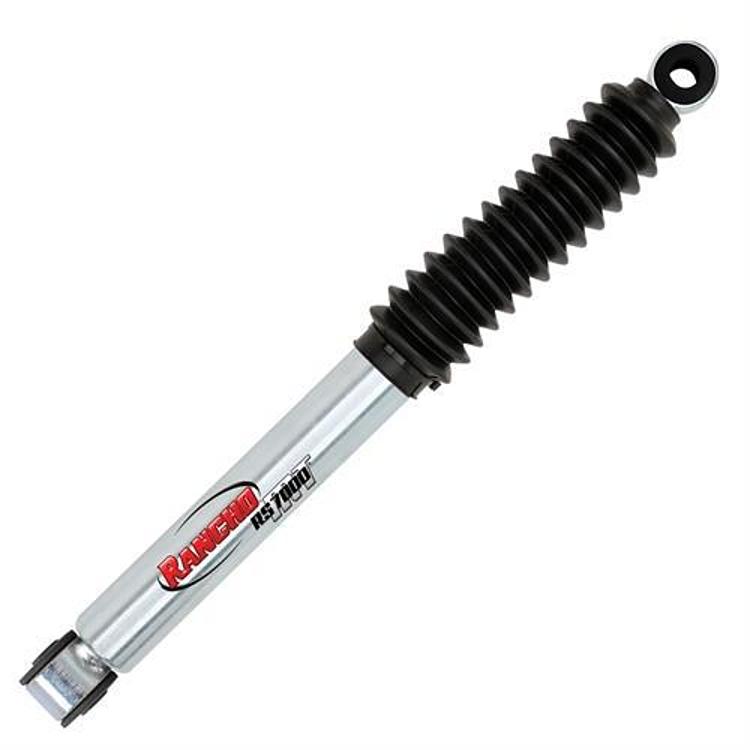

The Rancho RS7046 is a rear monotube, gas charged shock absorber from the RS7000MT series, listed by Rancho for the 2005–2016 Ford F-250 Super Duty and 2005–2016 Ford F-350 Super Duty. It is a direct fit with 0 in. lift or drop, so it is aimed at owners replacing the rear shock on those trucks in the trims named below.
Rancho’s RS7000MT line uses a high-pressure, gas charged monotube body meant to dissipate heat and limit fade during hard off-road driving. The RS7046 pairs that body with ten stage velocity-sensitive valving, which the brand says lets damping respond across a wide range of trail obstacles. A 1.97 inch (50mm) body and 14mm chrome rod set its dimensions.
Buyers comparing rear Super Duty shocks can check the specifications table for body size, rod diameter, bushings and included boot before choosing this part.
Key features
- Gas charged monotube design for heat dissipation
- Ten stage velocity-sensitive valving.
- 1.97 inch (50mm) body diameter.
- 14mm chrome rod.
- Black natural rubber bushings.
- Protective boot included.
- Rear position, direct fit, 0 in. lift or drop.
Rear Super Duty shock care
Rear shocks on a Super Duty truck support the load of the bed, trailer hitch loads and cargo, and they control rebound after the axle moves over ruts. A rear shock that has lost control can cause the truck to bounce or sway with a loaded bed. Gas charged monotube bodies are built to manage heat during long, hard use, which helps keep damping steady as the shock warms up.
Keep the protective boot in place and check it for tears before each season of heavy use, because grit that reaches the rod can damage the seal. Bushings are another wear point, and cracked or flattened bushings can make the rear end feel loose. When one rear shock is replaced, inspect the other at the same time.
- Inspect the boot for tears
- Check bushings for splits
- Keep the body clear of heat sources
- Replace rear shocks in pairs
Specifications
| Brand | Rancho |
|---|---|
| Part number | RS7046 |
| UPC | 39703003254 |
| Series | RS7000MT Series |
| Shock type | Monotube, gas charged |
| Position | Rear |
| Body diameter | 1.97 inch (50mm) |
| Piston rod | 14mm chrome |
| Valving | Ten stage, velocity-sensitive |
| Bushings | Black natural rubber |
| Included | Protective boot |
| Fitment type | Direct fit |
| Lift height | 0 in. lift/drop |
Vehicle fitment
It fits the following Ford Super Duty trucks and trims:
- 2005–2016 Ford F-250 Super Duty (King Ranch, Lariat, XL, XLT)
- 2005–2016 Ford F-350 Super Duty (King Ranch, Lariat, Platinum, XL, XLT)
Model years outside 2005–2016 and Ford F-450 or F-550 models are not in this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Gas charged shocks are pressurized, so keep the body away from heat and do not puncture or disassemble it. Check that the protective boot is in place and undamaged before the rear shock goes on.
What’s included
A protective boot is included with the RS7046 shock. Mounting hardware and other package contents should be checked against your installation before starting.
