Overview

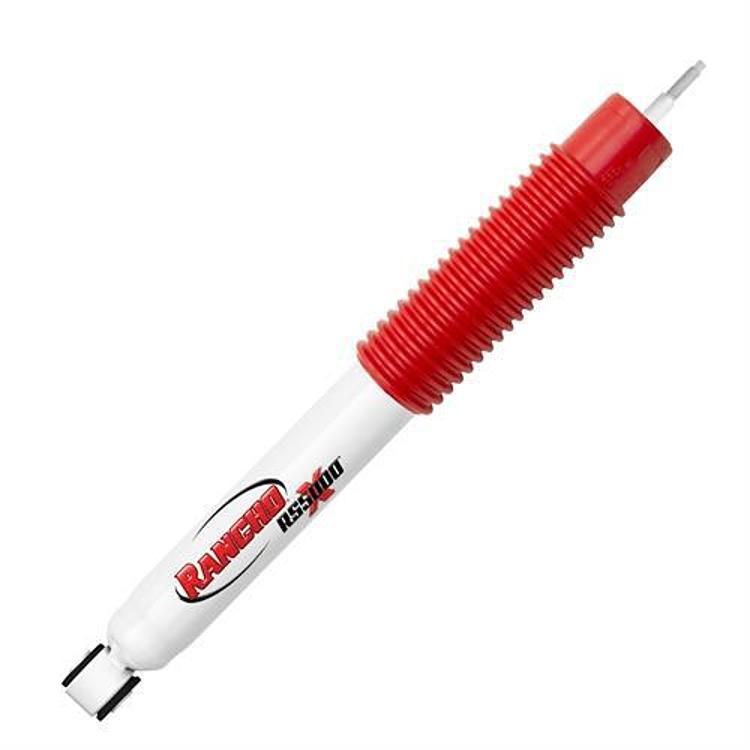

The Rancho RS55288 is an RS5000X Series shock absorber with a compressed length of 10.76, an extended length of 15.39 and a travel length of 2.35. These figures are given without units, so compare them with your vehicle’s measured shock dimensions before fitting.
Rancho says its RS5000X design uses a patented rebound valving system and an advanced compression phase, developed by its ride engineers to improve handling on and off-road. The length figures are the main way to distinguish the RS55288 from other RS5000X lengths.
Key features
- Patented rebound valving system
- Advanced compression phase tuned by Rancho ride engineers
- Proprietary process aimed at on- and off-road handling
- Travel length of 2.35
Ride height and travel
Ride height depends on the shock length as much as the springs. A shock that is longer or shorter than the original can raise or lower the vehicle, change camber and alter the range of motion available before the bump stops contact. Matching the compressed and extended lengths is the simplest way to keep the suspension geometry close to factory.
Travel is the difference between compressed and extended length, and it sets how much the wheel can move over obstacles. Shorter travel may bottom out sooner on rough terrain, while excess travel can strain mounts. If the vehicle has been lifted or fitted with different tires, measure again before deciding on a replacement. Inspect bushings and bump stops at the same time.
Specifications
| Brand | Rancho |
|---|---|
| Part number | RS55288 |
| UPC | 10039703007587 |
| Series | RS5000X |
| Compressed length | 10.76 (no unit given) |
| Extended length | 15.39 (no unit given) |
| Travel length | 2.35 (no unit given) |
Vehicle fitment
Compare the shock’s lengths with your current unit first, then verify the year, model and trim for your vehicle.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check that the 10.76 compressed and 15.39 extended lengths match the shock you are replacing, since a length mismatch changes ride height and the travel available once installed.
What’s included
One RS5000X Series shock absorber, part RS55288. Check the contents for hardware and bushings when the box arrives.
