Overview

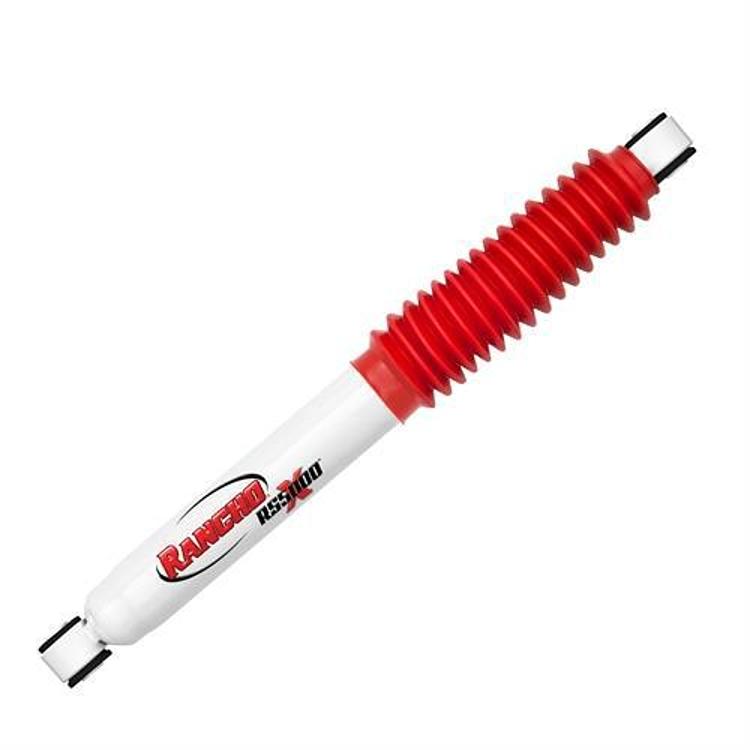

The Rancho RS55248 is a rear RS5000X Series gas-charged shock absorber for the 1997–2004 Dodge Dakota and 1998–2003 Dodge Durango. It is a direct fit rear shock with a lift height rating of 0 in. lift/drop. Check the trims below against your vehicle.
It has progressive engagement valving, a tuned compression control valve and a Limited Lifetime Warranty. Its valving is designed for handling, and the trims below set the fit.
Key features
- Progressive engagement valving
- Tuned compression control valve
- Gas pressurization of the shock body
- 16mm Nitro-Carburized piston rod
- Full-displaced 35mm bore
- 1 3/8-in. diameter sintered iron piston with glass-filled Fluon banding
- Rebound bumper and protective boot
- Double-welded loops
Rear shocks for Dodge trucks
Rear shocks on Dakota and Durango models control rebound after bumps and help keep the rear tires on the road over ruts and uneven pavement. Wear often shows up as a rear end that keeps moving after a dip, oil on the shock body, or uneven rear tire wear. A worn shock can also cause the rear to sag under load.
When fitting a rear shock, check the mounting eyes and bushings for cracks or wear, and clean the studs before installation. Confirm the year, model and trim against the vehicle before ordering. Because the rear suspension works with the springs, inspect the springs and bump stops while the shock is removed, since worn parts reduce how well a new shock performs.
- Check the mounting eyes for cracks
- Inspect bump stops and springs
- Clean studs before fitting
Specifications
| Brand | Rancho |
|---|---|
| Part number | RS55248 |
| UPC | 39703009485 |
| Series | RS5000X Series |
| Position | Rear |
| Shock type | Gas charged |
| Body | Enlarged 2 1/4-in. twin tube |
| Bore | Full-displaced 35mm |
| Piston rod | 16mm Nitro-Carburized |
| Piston | 1 3/8-in. diameter sintered iron, glass-filled, Fluon banded |
| Bushings | Black, natural rubber |
| Seal | Low-friction, self-lubricating |
| Lift height | 0 in. lift/drop |
| Warranty | Limited Lifetime Warranty |
Vehicle fitment
It fits the 1997–2004 Dodge Dakota in Base, SLT, SLT Plus, SXT, Sport and Sport Plus trims, and the 1998–2003 Dodge Durango in Base, R/T, SLT, SLT Plus, SXT and Sport trims.
Model years after the ranges shown are not on this list. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One RS5000X Series shock absorber, part RS55248, is included.
Not included: Bolt-on parts for these trucks are not included, so check the package contents against your installation before starting.
