Overview

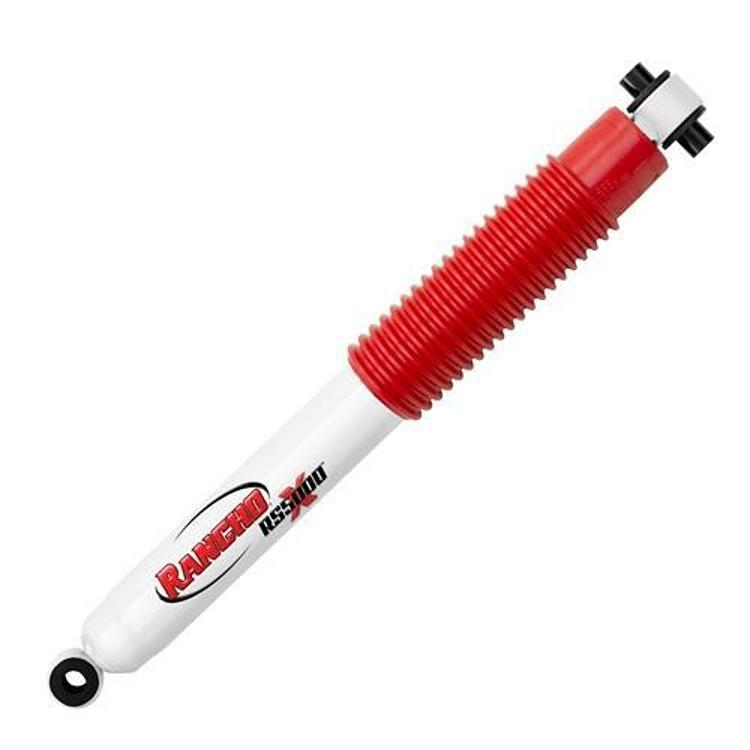

The Rancho RS55063 is a front RS5000X series shock absorber for the 2018 Jeep Wrangler (JL), including Rubicon, Sport, Sport S and Unlimited trims. It is rated for 0 in. lift/drop, so it suits a Wrangler JL at stock height.
The valving uses a patented design and an advanced compression function, developed to improve on- and off-road handling. The body, rod, piston and bushings are detailed below. The compressed length is 15.96, the extended length is 21.96 and the travel length is 6.00.
Shock absorbers control how the body moves over bumps, and the figures here show how far this shock compresses and extends, so a Wrangler JL owner can compare them with the shock on the truck.
Key features
- Progressive engagement valving and a tuned compression control valve
- Enlarged 2-1/4 inch twin tube body with gas pressurization
- 16mm nitro-carburized rod
- Full-displaced 35mm bore with a 1-3/8 inch diameter sintered iron piston
- Rebound bumper, protective boot and double-welded loops
- Black natural rubber bushings and a low-friction, self-lubricating seal
- Glass-filled, Fluon banded piston
Stock height and wheel size
A Wrangler JL at stock height puts less load on a shock than a lifted rig, but larger tires still change how the shock works. Heavier wheels and tires increase the force the damper must control, and a shock that is rated for stock height may ride firmer or wear sooner on a truck that has been built up.
On a Wrangler, front shocks often work alongside the sway bar links and control arm bushings. When a shock is replaced, check those parts for play, since a loose link can make a new shock feel vague and can shorten its service life.
- Compare tire size with the stock setup before ordering
- Inspect sway bar links during a shock replacement
- Use a torque wrench on the shock mounts
Specifications
| Brand | Rancho |
|---|---|
| Part number | RS55063 |
| UPC | 39703009386 |
| Series | RS5000X Series |
| Position | Front |
| Fitment type | Direct Fit |
| Charge | Gas Charged, gas pressurized body |
| Lift height | w/0 in. Lift/Drop |
| Compressed length | 15.96 (no unit given) |
| Extended length | 21.96 (no unit given) |
| Travel length | 6.00 (no unit given) |
| Body | 2-1/4 inch twin tube |
| Rod | 16mm nitro-carburized |
| Bore | 35mm, full-displaced |
| Piston | 1-3/8 inch diameter sintered iron, glass-filled, Fluon banded |
| Bushings | Black natural rubber |
| Seal | Low-friction, self-lubricating |
| Extras | Rebound bumper, protective boot, double-welded loops |
Vehicle fitment
It fits the 2018 Jeep Wrangler (JL) in Rubicon, Sport, Sport S, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport and Unlimited Sport S trims.
Earlier Wrangler generations, the Gladiator and other Jeep models are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Use the front position only. Its 0 in. lift/drop rating suits a Wrangler JL still at stock suspension height. Support the vehicle on stands before removing the old shock.
What’s included
Check how many shocks are included and whether brackets come with them before starting.
