Overview

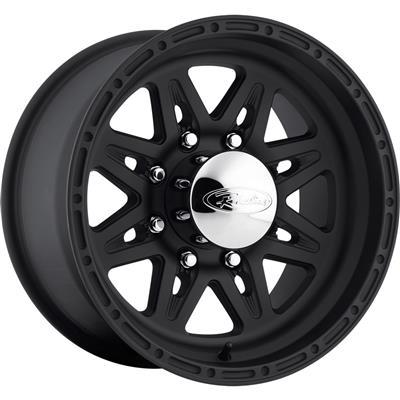

The Raceline Renegade 8 RLW892-60081 is a 16×10 satin black aluminum spoke wheel with an 8 on 170 bolt pattern. It is a universal fit design, so the bolt pattern, center bore and offset must suit your own hub and clearance.
Raceline ties its consumer line to its off-road racing background, and the 892 Renegade 8 carries that design approach into a wheel with a -25 offset and 4.5 backspacing.
Key features
- Spoke face in a satin black finish
- Aluminum construction
- 8 on 170 bolt pattern
- 16-inch diameter and 10-inch width
- Center bore of 131 and offset of -25
Before you mount
A 10-inch wide spoke wheel leaves a wider footprint for the tire, so tire width and sidewall height need matching before mounting. Measure the fender clearance with the planned tire, especially at full steering lock.
The spokes on this design collect grit in their gaps. Rinse after off-road runs and use a soft brush around the spoke base. Harsh solvents can dull the satin black finish, so stick with a pH-neutral wash.
Check the lug nut seat type against the wheel’s holes before each tire change. Lug torque should be rechecked after the first drives, and the lip should be inspected after rock contact or curb strikes. Keep a note of the tire size used so future fitment checks are quicker.
Specifications
| Brand | Raceline Wheels |
|---|---|
| Part number | RLW892-60081 |
| Series | 892 Renegade 8 |
| Wheel diameter | 16 inches |
| Wheel width | 10 inches |
| Offset | -25 |
| Backspacing | 4.5 |
| Center bore | 131 |
| Bolt pattern | 8 on 170 |
| Style | Spoke |
| Finish | Satin Black |
| Construction | Aluminum |
| Fitment | Universal Fit |
Vehicle fitment
No single vehicle is named for this wheel. It carries a universal fit designation, so compatibility depends on matching the bolt pattern, center bore and offset to your hub and fender clearance.
Confirm your vehicle’s year, model and trim before ordering. A center bore of 131 may call for hub-centric rings depending on your hub.
Installation notes
Check wheel-to-fender clearance at -25 offset with your planned tire size before final mounting, because a 10-inch rim changes how far the tire sits outward. Confirm the lug nut seat type matches the wheel’s lug holes.
What’s included
The package is one wheel only.
Not included: tires, valve stems and lug nuts fall outside this wheel’s scope.
