Overview

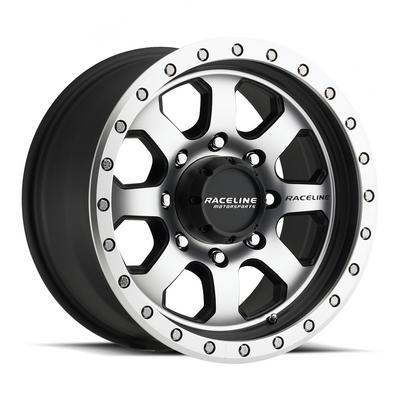

The Raceline Wheels Avenger 929 wheel in Black/Machined, part number RLW929M-79050-12, is a 17×9 aluminum spoke wheel for a 5 on 5 bolt pattern. It measures 17 Inches in diameter and 9 Inches wide, with an offset of -12, a center bore of 84 and a backspacing of 4.5.
Avenger is the model name within the 929 series. The finish is Black/Machined, and no vehicle is named for this wheel, so the bolt pattern and center bore are the first figures to check.
Key features
- Black/Machined finish on a spoke design
- 17 Inches diameter with 9 Inches width
- 5 on 5 bolt pattern
- Offset of -12, backspacing of 4.5 and center bore of 84
- Part of the 929 Avenger series
Hub-centric fit and spacing
Hub centering keeps the wheel’s weight on the hub rather than on the lug studs. A bore larger than the hub center can cause vibration, so a hub-centric ring is one way to close that gap. Rings should be sized to the hub bore and seated fully before the wheel goes on.
A negative offset pulls the mounting face inward relative to the wheel, so the wheel sits further outward on the hub. Check tire clearance to the fender, the upper control arm and any lift components at full steering lock. Recheck fasteners after the first few drives and watch tread wear for signs of rubbing.
Keep the bore and offset in mind when choosing replacement wheels, since mixed sets can change handling.
Specifications
| Brand | Raceline Wheels |
|---|---|
| Part number | RLW929M-79050-12 |
| Series | 929 Avenger |
| Diameter | 17 Inches |
| Width | 9 Inches |
| Bolt pattern | 5 on 5 |
| Offset | -12 |
| Center bore | 84 |
| Backspacing | 4.5 |
| Style | Spoke |
| Finish | Black/Machined |
| Construction | Aluminum |
| Fitment label | Universal Fit |
Vehicle fitment
Fitment is not tied to a specific vehicle for this wheel, and it carries a Universal Fit label. Confirm fit for your vehicle’s year, model and trim before ordering.
Compare the 5 on 5 pattern, the 84 center bore and the -12 offset with your hub and clearances. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Confirm the 5 on 5 pattern and the 84 center bore against the hub before mounting. A -12 offset moves the wheel outward, so check tire clearance to the fender and suspension at full lock. Match the lug seat style to your lug nuts before torquing.
What’s included
One wheel is described. Not included: tires, lug nuts and center caps.
