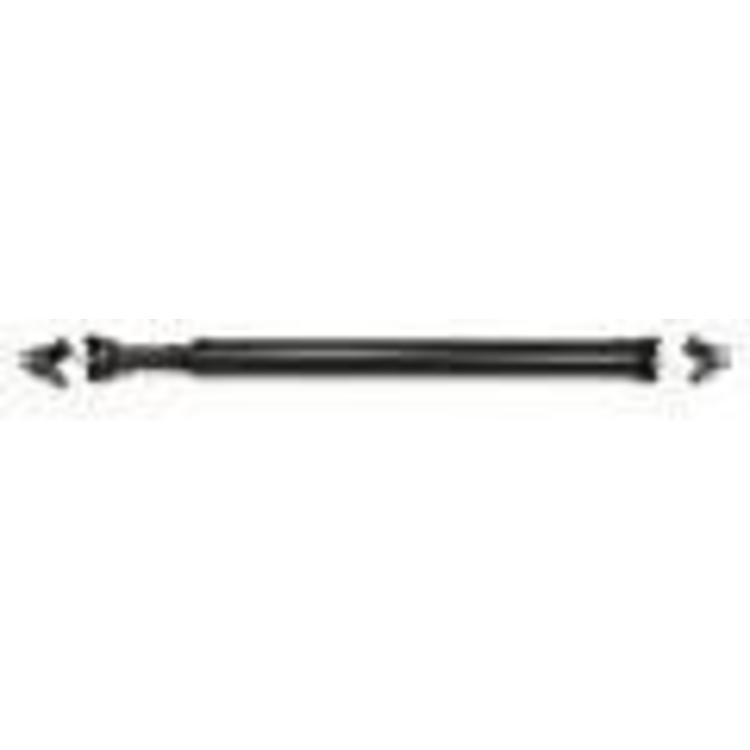

Pro Comp Non-CV Style Rear Drive Shaft – 55767B

Pro Comp Suspension

Shop Jeep Wrangler JK Drive Shafts on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear non-CV drive shaft for 2007-2018 Jeep Wrangler JK 4-door
  • U-joint style; no slip yoke eliminator required
  • 3.00 in x 0.095 in DOM steel tube
  • Part number 55767B, with mounting hardware

Description

Overview

The Pro Comp 55767B is a non-CV style rear drive shaft for the 2007-2018 Jeep Wrangler JK 4-door (Wrangler Unlimited). It is an extended length rear driveshaft that replaces the factory ball and cage style joint with u-joints and does not require a slip yoke eliminator.

Pro Comp says lifting a vehicle increases driveline angles, which can raise the chance of driveline vibration, and that its u-joint style drive shafts allow 4WD operation at speeds above 25 mph. The short listing recommends the shaft for vehicles with 0-6 in of lift, while the longer description refers to 2 inches or more of lift on 2007-2008 Jeep JK 4WD vehicles.

Key features

  • Non-CV style rear drive shaft
  • U-joint style: the factory ball and cage design joint is replaced with u-joints
  • Exclusive yokes, not flange adapters, which Pro Comp says allow a longer drive shaft
  • Built from 3.00 in x 0.095 in DOM (drawn-over-mandrel) steel tube
  • Does not require a slip yoke eliminator
  • Allows 4WD operation at speeds above 25 mph
  • Kit comes with the necessary mounting hardware

Driveline angles and lift

A rear drive shaft transfers power from the transfer case to the axle, and its joints must work through the full range of suspension travel. Lifting a Wrangler JK steepens those angles, which is why joint type and yoke design matter. Good angles keep vibration low and reduce wear on the u-joints and the axle pinion seal.

Choosing a shaft is partly about matching it to the lift and to the driveline around it. Check transfer case output height, pinion angle and the front shaft as a set, since changing one often changes the others. Driveshaft length, tube wall and yoke type should also suit the axle housing and the body clearance.

  • Measure pinion and transfer case angles
  • Check clearance at full droop and full compression
  • Inspect u-joint caps and seals at each oil change
  • Replace worn joints as a set with the shaft when practical

Specifications

Brand Pro Comp Suspension
Part number 55767B
UPC 614901121254
Product type Rear drive shaft, non-CV style
Position Rear
Length Extended
Joint style U-joints, 1314 style
Tube 3.00 in x 0.095 in DOM steel
Intended lift 0-6 in of lift (short listing)
Slip yoke eliminator Not required
Manufacturer part code EXP55767B
Mounting hardware Included

Vehicle fitment

Fits the 2007–2018 Jeep Wrangler (JK) in these trims: Rubicon, Sahara, Sport, Unlimited 70th Anniversary, Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S and Unlimited X.

It is for the 4-door body style, Wrangler Unlimited.

The stored list covers the Jeep Wrangler JK only. It does not cover the earlier YJ, TJ and LJ models or the 2018-2022 JL generation. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Driveline parts rotate at speed, so professional installation is the safer choice. Tighten each fastener to its torque value, check driveline angles and clearance through the full range of suspension travel, and re-check fasteners after the first miles of driving. Listen for vibration on the first test drive and stop to investigate if it occurs.

What’s included

  • Rear drive shaft
  • Necessary mounting hardware
SKU: EXP55767B Category:

Specification

Shipping weight 24.60 lbs
Package dimensions 42.00 × 8.00 × 8.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–2018Rubicon, Sahara, Sport, Unlimited 70th Anniversary, Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S, Unlimited X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What Jeep does the Pro Comp 55767B fit?

It fits the 2007–2018 Jeep Wrangler JK 4-door, which is the Unlimited body style. It is a rear drive shaft. It does not fit the YJ, TJ, LJ or JL generations.

Does the Pro Comp 55767B need a slip yoke eliminator?

No. It does not require a slip yoke eliminator. It is an extended length, non-CV rear drive shaft that uses u-joints and exclusive yokes.

What is the Pro Comp 55767B drive shaft made of?

The shaft is built from 3.00 in x 0.095 in DOM (drawn-over-mandrel) steel tube. Its u-joints replace the factory ball and cage style joint.

How much lift is the Pro Comp 55767B for?

The shaft is suited to vehicles with 0-6 in of lift. For 2007-2008 JK 4WD vehicles, it is suited to lifts of 2 inches or more. Confirm your lift height before ordering.

How do I know when a u-joint is worn?

Worn u-joints usually cause a clunk when shifting from drive to reverse, or a vibration that rises with speed. Check for play in each joint by hand with the driveline stationary, and look for dried grease or rust on the caps. Replace a joint that shows play or binding.
