Pro Comp Brake Hose Kit

Pro Comp Suspension

Shop Jeep CJ7 Brake Hoses on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 1982 to 1983 Jeep CJ5 and 1982 to 1986 Jeep CJ7
  • Stainless steel braided brake line kit for up to 6 inch of lift
  • Two front lines and one rear line, 18 inch extended
  • D.O.T. compliant

Description

Overview

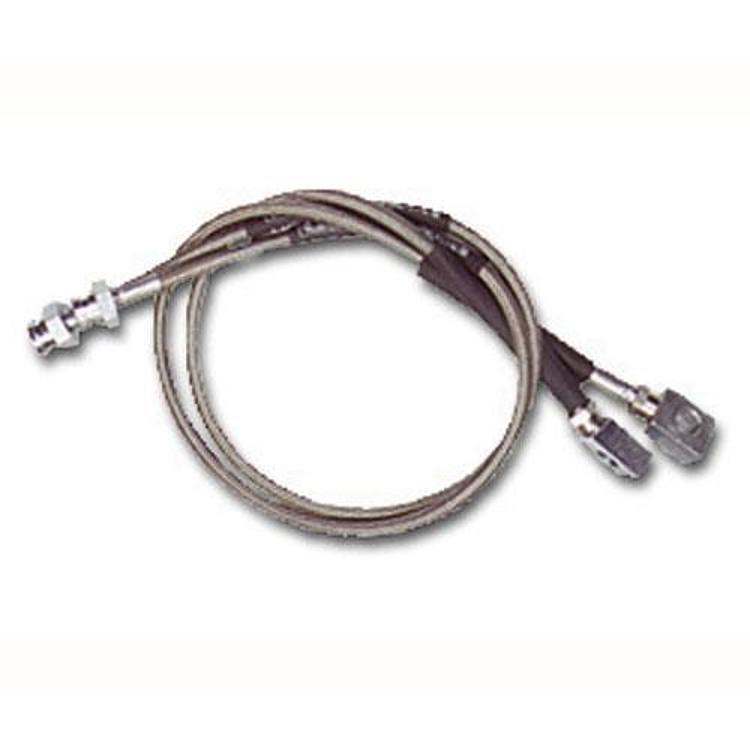

The Pro Comp 7405 is a stainless steel braided brake line kit for the 1982 to 1983 Jeep CJ5 and the 1982 to 1986 Jeep CJ7, intended for lifts of up to 6 inches. It has two front lines and one rear line, all extended in length for the taller ride height.

Both the front and rear lines are 18 inch extended lengths, and Pro Comp says all of its stainless hoses comply with D.O.T. specifications.

Key features

  • Braided stainless steel brake lines
  • Works with up to 6 inch of lift
  • Two front lines and one rear line
  • Front and rear lines each 18 inch extended
  • Direct fit
  • D.O.T. compliant

Things to check

Brake lines on a CJ are often the original parts, and they can be brittle after decades of heat and road grime. When the suspension is raised, the lines stretch further, which can crack fittings or pull hoses loose. Longer braided lines reduce that strain, but the rest of the system still needs checking.

Before installing, confirm the routing against the frame, springs and steering linkage at full travel, since a taller Jeep changes those angles. Use new fittings and inspect the master cylinder, flexible joints and wheel cylinders at the same time. Do not reuse old copper washers or crush-damaged lines. Keep brake fluid fresh, since moisture lowers its boiling point over time.

After the first drive, check every connection for leaks and confirm the pedal is firm.

  • Bleed all four corners after installation
  • Check clearance at full steering lock
  • Replace any line showing cracks or chafing

Specifications

Brand Pro Comp Suspension
Part number 7405
UPC 41490118043
Product type Stainless steel braided brake line kit
Hose material Stainless steel braid
Front lines 2, 18 inch extended
Rear lines 1, 18 inch extended
Lift height Up to 6 inch
Fitment type Direct fit

Vehicle fitment

It fits the 1982 to 1983 Jeep CJ5 and the 1982 to 1986 Jeep CJ7, in the Base, Laredo, Limited and Renegade versions.

The 1977 to 1981 CJ5 and CJ7 are not on this list and need a different kit. Confirm your vehicle’s year, model and trim before ordering.

What’s included

Three stainless braided brake lines: two front and one rear.

SKU: EXP7405 Category:

Specification

Shipping weight 1.06 lbs
Package dimensions 20.00 × 6.00 × 2.00 in
brands

Fitment

VehicleYearsTrims
Jeep CJ51982–1983Base, Laredo, Limited, Renegade
Jeep CJ71982–1986Base, Laredo, Limited, Renegade

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Which Jeeps does the Pro Comp 7405 brake line kit fit?

It fits the 1982 to 1983 Jeep CJ5 and the 1982 to 1986 Jeep CJ7. Earlier CJ models are not covered by this kit.

What is in the Pro Comp 7405 kit?

The kit consists of two front lines and one rear line in stainless steel braid. The front lines are 18 inch extended and the rear line is 18 inch extended.

How much lift does the 7405 support?

It is designed for lifts of up to 6 inches. The extended 18 inch lines keep the brake hoses from stretching at taller ride height.

Can the 7405 be used with a lift higher than 6 inches?

The kit is designed for lifts of up to 6 inches. For a taller setup, check whether longer lines are available and confirm the routing before installing any brake line.
