Overview

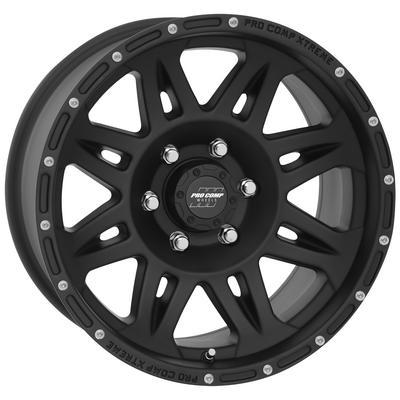

The Pro Comp PXA7005-7983 is a 17×9 flat black aluminum wheel in the 05 Series Torq line, with a split-spoke design. It has a 6 on 5.5 bolt pattern, a center bore of 108, an offset of -6 and a backspacing of 4.75.
The Torq is cast with low-pressure technology and finished for trucks and sport utility vehicles. Compared with the 17×8 flat black version, the 9-inch width and -6 offset push the face further out.
The 6 on 5.5 pattern and 108 center bore must match the hub, and the -6 offset sets where the 9-inch face sits. Compared with the 17×8 flat black Torq, this 9-inch version gives a wider face at the same diameter, so check the fender and suspension clearance first.

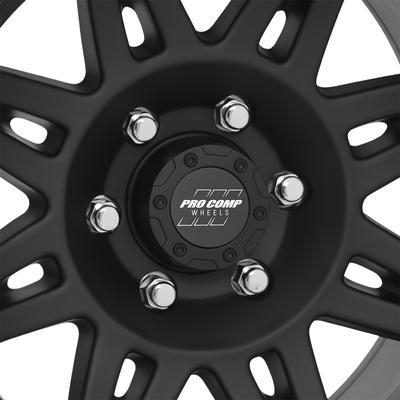

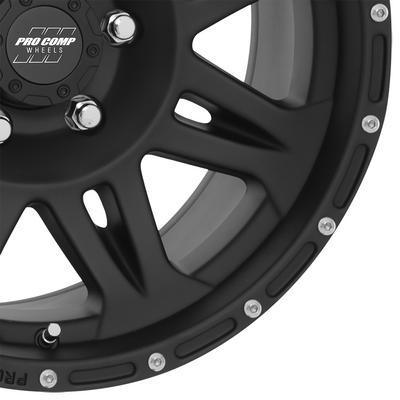

The split-spoke face, flat black finish and cast aluminum construction define this wheel.
Key features
- Flat black finish
- Split-spoke aluminum design
- 6 on 5.5 bolt pattern
- Center bore 108
- Offset -6
Choosing wheel width
Wheel width changes how a tire sits under the fender and how the suspension loads the hub. A wider rim gives the tire more footprint on the road and can sharpen steering response, but it also moves the tire outward. On a lifted or flexed truck, that outward shift can meet the fender lip or a control arm sooner than expected.
Tire choice goes hand in hand with rim width. The tire needs to suit the rim’s width range, and its load rating has to cover the truck’s weight. Off-road, lower tire pressures and sidewall flex put extra strain on the bead, so pick a tire built for the way you drive. Before a trip, look at the wheel face for bent edges or cracks around the spokes, and check lug torque.
- Check fender clearance at full steering lock
- Confirm the tire load rating for the truck
- Re-torque lug nuts after the first drive
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA7005-7983 |
| Diameter | 17 inches |
| Width | 9 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 108 |
| Offset | -6 |
| Backspacing | 4.75 |
| Style | Split spoke |
| Finish | Flat black |
| Construction | Aluminum |
| Series | 05 Series Torq |
Vehicle fitment
This wheel is sold as universal fit. The 6 on 5.5 pattern, 108 center bore and -6 offset must all match your truck before buying.
Tire size and load rating must suit a 17×9 wheel. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One wheel. No center cap is named.
