Overview

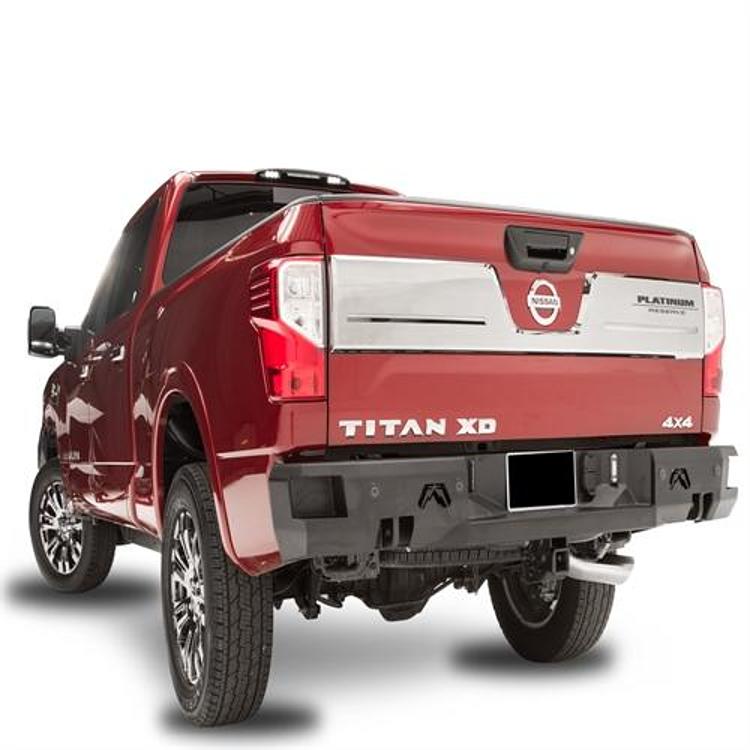

The Premium rear bumper sensor, part number NT16-W3751-1, is a black rear replacement bumper for the Nissan Titan XD. It keeps the rear parking sensors working and integrates the existing receiver hitch.
Construction is 3/16-inch U.S. steel with D-rings cut from 3/4-inch steel, finished in a 2 stage black powder coat. The bumper weighs 115 lb and gives the truck lower steps and recovery points.
Key features
- Retains the rear parking sensors
- 3/16-inch steel construction
- D-rings cut from 3/4-inch steel, accepting shackles up to 7/8-inch
- Lower steps and recovery points
- Fab Fours 2 stage black powder coat
- Retains the OEM receiver hitch and wiring location
Lifting and mounting a heavy bumper
A rear bumper at this weight is awkward to lift alone, and the mounting holes need to line up before the bolts can be started. Position the bumper with a jack or a second person, start all fasteners by hand, and then tighten them evenly so the bumper sits square. Keep fingers clear of pinch points between the bumper and the frame.
Rear sensors work best when the bumper is seated square and the wiring has no tension. Route the sensor harness away from the hitch and exhaust, and secure it with clips so it does not rub. Once the bumper is on, test the sensors on flat ground and confirm the back-up lights and plate light still work.
- Use a jack with a wood block to support the bumper
- Recheck the bolts after the first week of driving
- Test the rear sensors after every bumper removal
Specifications
| Brand | Fab Fours |
|---|---|
| Part number | NT16-W3751-1 |
| UPC | 5810113452 |
| Product type | Rear replacement sensor bumper |
| Line | Premium |
| Finish | 2 stage black powder coat |
| Steel thickness | 3/16 in |
| D-ring steel | 3/4 in, accepts up to a 7/8 in shackle |
| Weight | 115 lb |
| Position | Rear |
| Fit type | Direct fit |
| Origin | Made in the USA from U.S. steel |
Vehicle fitment
It fits the 2016–2018 Nissan Titan XD, including 2016 to 2017 model years.
The standard half-ton Nissan Titan and Titan XD models outside these years are not on the list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
At 115 lb, plan on a second person or a jack for lifting the bumper into place. The rear parking sensors are retained.
What’s included
One Premium rear sensor bumper.
Not included: Shackles.
