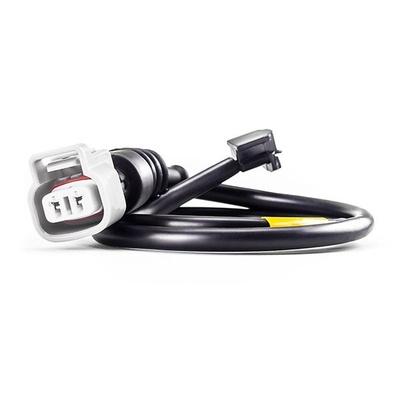

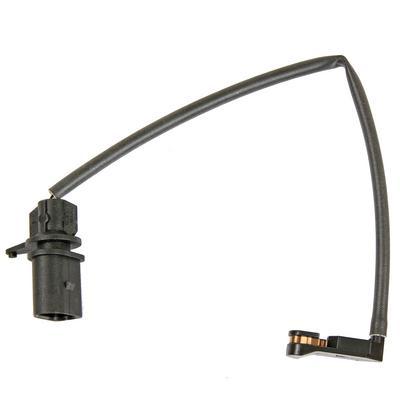

Power Stop Electronic Front Brake Pad Wear Sensor – SW-1673

Power Stop

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Electronic front brake pad wear sensor
  • Fits 2018-2019 Audi Q5 front brakes
  • Withstands heat up to 500 degrees
  • Snap-in installation

Description

Overview

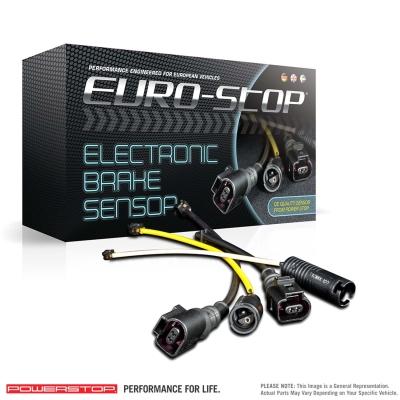

The Power Stop SW-1673 is an electronic front brake pad wear sensor for the 2018-2019 Audi Q5. It belongs to Power Stop’s Euro-Stop line, where electronic sensors come either boxed alone or packaged with pads.

Power Stop designs the sensor to stand up to 500 degrees and to keep a reliable electrode connection. Professional installers advise replacing the sensor together with the pads.

Key features

  • Front position
  • Super conductive electrodes
  • Withstands heat up to 500 degrees
  • Snap-in installation
  • Replace with the pads

Front sensor and pad changes

Electronic wear sensors work with the pads they are installed with. As the pad lining thins, the sensor tip wears away and the warning light comes on. Fitting a new sensor with new pads keeps the warning reliable, rather than reusing a sensor that has already been exposed to heat.

Front sensors on a compact SUV like the Q5 see heavy use under braking, so the wire should be routed away from the rotor and hub. Check the connector for dirt or moisture before fitting. Check the pad backing shims and pad fit at the same time, since a loose pad can wear the sensor tip unevenly.

  • Replace the sensor with each pad set
  • Route the wire clear of the rotor
  • Check the connector for moisture

Specifications

Brand Power Stop
Part number SW-1673
Part type Electronic brake pad wear sensor
Position Front
Heat resistance Up to 500 degrees
Fit type Direct fit

Vehicle fitment

It fits the 2018-2019 Audi Q5 in Premium, Premium Plus and Prestige trims.

The SQ5 and the 2020 and later Q5 are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Fitment

VehicleYearsTrims
Audi Q52018–2019Premium, Premium Plus, Prestige

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Which Audi uses the Power Stop SW-1673?

The 2018-2019 Audi Q5, in Premium, Premium Plus and Prestige trims. Check the Fitment tab to confirm your vehicle before ordering.

Is it a front or rear sensor?

It is an electronic front brake pad wear sensor. Rear Q5 sensors use a separate part number such as the SW-1708.

Should I replace it with the pads?

Power Stop recommends replacing it with each brake job, since sensors can fail with high thermal duty cycling, and the pads and sensor are sold together or apart.

Why does the brake warning light come on after a pad change?

A warning light after a pad change usually points to wiring, connector seating, or a sensor that was not fully installed. Confirm the connector is clicked into place and the wire is not pinched before assuming the pad is worn.
