Overview

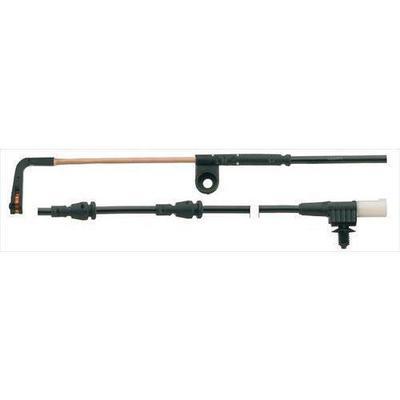

The Power Stop SW-1525 is a rear brake pad wear sensor for the 2005-2009 Land Rover LR3, 2010-2016 Land Rover LR4 and 2006-2013 Land Rover Range Rover Sport.
The sensor uses super conductive electrodes and Power Stop rates it for heat up to 500 degrees. Because sensors can fail after heavy heat cycling, installers recommend fitting a new one whenever pads are replaced.
Key features
- Rear position
- Super conductive electrodes
- Withstands heat up to 500 degrees
- Snap-in installation
- Replace with each brake job
Rear sensor care on Land Rovers
Rear pad wear sensors work by touching the disc when the friction material is nearly worn through, which closes a circuit and lights the warning. The sensor is a consumable item tied to the pad, so it is commonly changed whenever the rear pads are replaced. Heat from frequent stops can wear the sensor tip over time.
Work carefully around the rear hub, because the sensor lead is often clipped near the caliper bracket and brake hose. Keep the wire away from moving suspension parts and the parking brake cable. Clean the connector before clipping it in place. Once everything is refitted, check that the warning light goes out after a short drive.
- Match the sensor to the rear position
- Check the connector for corrosion before fitting
Specifications
| Brand | Power Stop |
|---|---|
| Part number | SW-1525 |
| Part type | Electronic brake pad wear sensor |
| Position | Rear |
| Heat resistance | Up to 500 degrees |
| Fit type | Direct fit |
Vehicle fitment
It fits the 2005-2009 Land Rover LR3, the 2010-2016 Land Rover LR4 and the 2006-2013 Land Rover Range Rover Sport, all at the rear position.
The front sensor for the LR3 and LR4 is a different part number, SW-1524. Confirm your vehicle’s year, model and trim before ordering.
