Overview

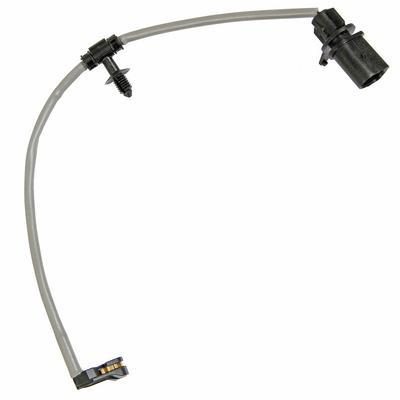

The Power Stop SW-1708 is an electronic rear brake pad wear sensor for several Audi models: the 2018-2023 Q5 and SQ5, the 2021-2023 Q5 Sportback and SQ5 Sportback, and the e-tron, e-tron S and e-tron Sportback from 2019 to 2023.
Power Stop supplies the sensor with high-temperature capability and good electrode conductivity. Installers recommend replacing it with each pad set.
Key features
- Rear position
- Super conductive electrodes
- Withstands heat up to 500 degrees
- Snap-in installation
- Recommended with each brake job
Electronic sensors on Audi brakes
Audi electronic wear sensors sit in the pad and connect to the vehicle’s warning circuit. When the pad thins to the sensor’s level, the circuit closes and the warning appears on the dash. Because the sensor is consumed in that process, a new sensor with new pads is the usual service approach.
Rear sensors on the Q5, SQ5 and e-tron models should be checked whenever the pads are replaced, since the rear brakes on these vehicles do different work than the fronts. Route the wire clear of the hub and keep the connector sealed. Confirm the warning light clears after the pads and sensor are fitted.
- Replace the sensor with new pads
- Route the wire away from the hub
- Confirm the warning light clears
Specifications
| Brand | Power Stop |
|---|---|
| Part number | SW-1708 |
| Part type | Electronic brake pad wear sensor |
| Position | Rear |
| Heat resistance | Up to 500 degrees |
| Fit type | Direct fit |
Vehicle fitment
It fits the 2018-2023 Audi Q5 and SQ5, the 2021-2023 Q5 Sportback and SQ5 Sportback, the 2019 and 2021-2023 Audi e-tron, the 2022 e-tron S and e-tron S Sportback, and the 2020-2023 e-tron Sportback.
The front-axle sensor for the 2018-2019 Q5 is a different part, SW-1673. Confirm your vehicle’s year, model and trim before ordering.
