Poison Spyder BFH II Rear Bumper with 2 Inch Receiver and D-Ring Tabs (Bare) – 17-17-040-D

Poison Spyder Customs

Shop Jeep Wrangler JK Rear Bumpers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits the 2007–2016 Jeep Wrangler JK, 2-door and 4-door
  • Bare 3/16 inch plate steel with 1 inch thick shackle tabs
  • Installation requires cutting frame rails and the rear crossmember

Description

Overview

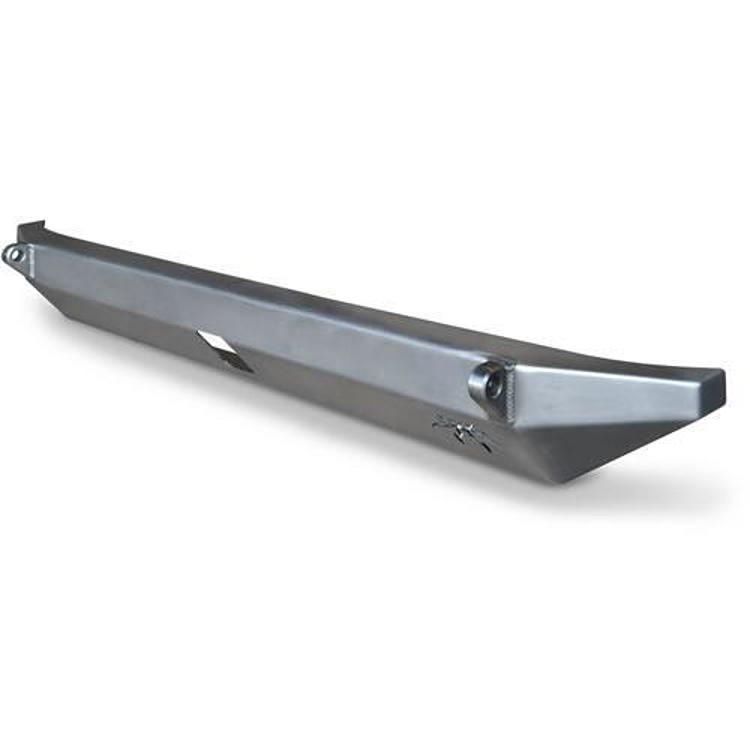

The Poison Spyder BFH II rear bumper 17-17-040-D is a bare-steel rear bumper for the 2007–2016 Jeep Wrangler JK, 2-door and 4-door, built for hard-core rock crawling. The name stands for “Built For the Hammers”, and Poison Spyder designed it for maximum ground clearance and departure angle.

The bumper is CNC laser-cut from 3/16 inch plate steel, brake-formed, and no wider than the JK’s rear body tub, with angled facets for sliding over rocks. This version includes recovery shackle tabs CNC machined from 1 inch thick plate steel for 3/4 inch shackles. It has no provisions for a spare tire carrier.

Key features

  • Faceted 3/16 inch plate steel rear bumper in bare steel
  • No wider than the JK rear body tub
  • High clearance recovery shackle tabs, CNC machined from 1 inch thick plate steel
  • Tabs take 3/4 inch recovery shackles
  • Slot for a hitch receiver (requires part number 17-17-030)
  • Laser-cut steel template provided to guide frame cuts
  • No provisions for a spare tire carrier

Planning the rear cut

A rear bumper that requires frame cutting is a bigger job than a bolt-on, so plan the work before picking up tools. Mark the cut lines with the template, double-check measurements on both sides, and confirm the frame rails are square. Removing the stock bumper and mounts first gives a clearer view of the rails and crossmember.

Where the crossmember is cut, the installer chooses how to close the opening. Plating across it or replacing the crossmember are the two approaches, and each needs its own materials and skills. Paint or powder coat the bumper after alignment is final, so the finish is not scratched during install.

  • Dry-fit the bumper before cutting anything permanent
  • Mark template lines on both rails
  • Coat the bumper after final alignment

Specifications

Brand Poison Spyder Customs
Part number 17-17-040-D
UPC 614901751048
Product type Rear bumper, BFH II
Material 3/16 inch plate steel; shackle tabs from 1 inch thick plate
Finish Bare steel
Shackle size 3/4 inch recovery shackles (not included)
Receiver hitch No; slot for receiver, requires 17-17-030
Tire carrier No
D-ring mount Included
Fit type Direct fit
Body styles 2-door and 4-door

Vehicle fitment

It fits the 2007–2016 Jeep Wrangler (JK), 2-door and 4-door.

It is designed for the non-receiver BFH II rear crossmember, not the one with the integrated hitch receiver, part 17-17-030. Confirm fit for your vehicle’s year, model and trim before ordering.

Installation notes

Installation requires cutting the stock frame rails and rear crossmember, so read the installation instructions first. A laser-cut steel template is provided to guide the cuts. The open crossmember cut can be plated across, which is up to the installer and uses materials not included, or the crossmember can be removed and replaced with the JK BFH II Rear Crossmember. The bumper arrives as bare steel and needs paint or powder coat before final installation.

What’s included

One BFH II rear bumper with CNC machined recovery shackle tabs and a laser-cut steel template.

Not included: Recovery shackles, plating material for the crossmember, and paint or powder coat.

SKU: PSC17-17-040-D Category:

Specification

Shipping weight 46.24 lbs
Package dimensions 41.00 × 14.00 × 9.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201670th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S, Unlimited 70th Anniversary, Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S, Unlimited X, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Poison Spyder BFH II 17-17-040-D require cutting?

Yes. Installation requires trimming the rear frame rails and stock bumper mounts, and cutting into the rear crossmember. A laser-cut template is provided.

Does the BFH II 17-17-040-D have a hitch receiver?

No. This version is designed for the non-receiver BFH II crossmember and will not work with the crossmember with the integrated hitch receiver, part 17-17-030.

Is the BFH II bumper painted or powder coated?

No. It is bare steel and needs painting or powder coating prior to final installation. Poison Spyder does not offer a powder coat option for this item.

Can I mount a spare tire on the BFH II bumper?

The bumper has no provisions for a spare tire carrier. Depending on the spare tire size, a tailgate-mounted carrier from the OE may be compatible.

Does a tailgate-mounted spare change the load on the rear bumper?

A tailgate-mounted tire adds weight to the tailgate hinges and latch rather than the bumper itself. Check those parts, confirm the tire size works with the carrier, and secure the spare before driving rough trails.
