Overview
The Poison Spyder Customs EVAP Skid Plate, part number 17-56-012, is a satin black 3/16 inch steel skid that guards the evaporative (EVAP) canister on 2007–2011 Jeep Wrangler (JK) 2-door and 4-door models.

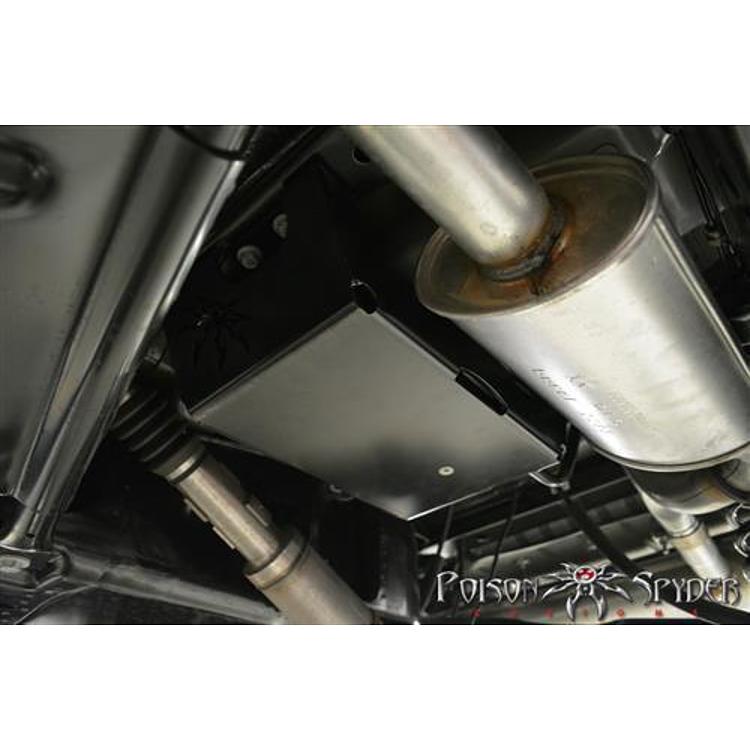

The EVAP canister sits under the floorboard as part of the emissions and engine management system. Jeep placed it in a vulnerable spot where rocks and trail obstacles can damage or tear it off. This skid covers the canister on the bottom, front, sides and rear, and its front face is angled like a ramp to help the Jeep slide up over obstacles that reach that far into the undercarriage. Covering every side of the canister, rather than only the underside, is the main design point of this skid.
Key features
- CNC laser cut and brake-formed from 3/16 inch steel plate
- Encloses the EVAP canister on the bottom, front, sides and rear
- Ramp-shaped front face that helps the vehicle ride up over obstacles
- Lifts the canister for an extra 3/4 inch of ground clearance, including the skid’s own thickness
- Laser-cut Spyder symbol on the skid face
- Comes powder coated satin black, ready to install
- Installs without cutting or drilling
Before you install
Plan the install around the EVAP canister’s hose and wiring routing. Before lowering the skid into position, check the lines that run near the canister and make sure none of them will be pinched or stretched once the canister is raised inside the skid. Take a few photos of the stock setup so the reassembly is easy to check.
Work on a level surface with the vehicle supported securely. Keep the fasteners sorted by location, because the hardware sizes around the floorboard can look similar. Tighten everything to a snug fit first, then go back and finish the bolts once the skid sits square.
After the first few trail runs, look over the skid’s mounting points and the canister connections. Rock strikes can loosen fittings even when the skid itself is undamaged, so a quick check helps catch problems early.
Specifications
| Brand | Poison Spyder Customs |
|---|---|
| Part number | 17-56-012 |
| UPC | 614901727142 |
| Material | 3/16 inch steel plate |
| Finish | Satin black powder coat |
| Type | EVAP canister skid |
| Body style | 2-door and 4-door |
| Fit type | Direct fit |
| Installation type | No cutting or drilling required |
Vehicle fitment
It is a direct fit for 2007–2011 Jeep Wrangler (JK) 2-door and 4-door models. Confirm fit for your vehicle’s year, model and trim before ordering.
Confirm fit for your vehicle’s year, model and trim before ordering, especially for the 1997–2006 Jeep Wrangler (TJ), the 2004–2006 Wrangler (LJ) and the Wrangler JL.
Installation notes

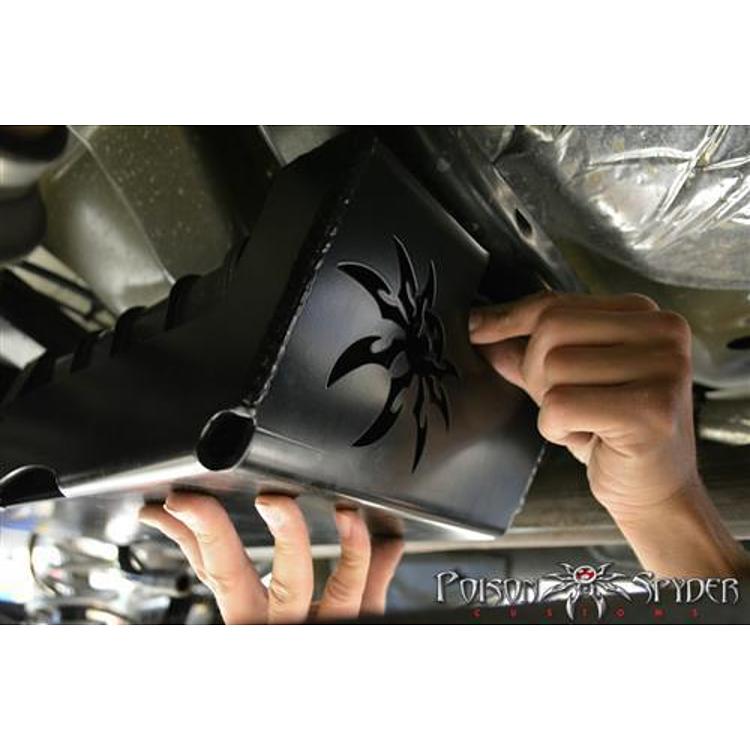

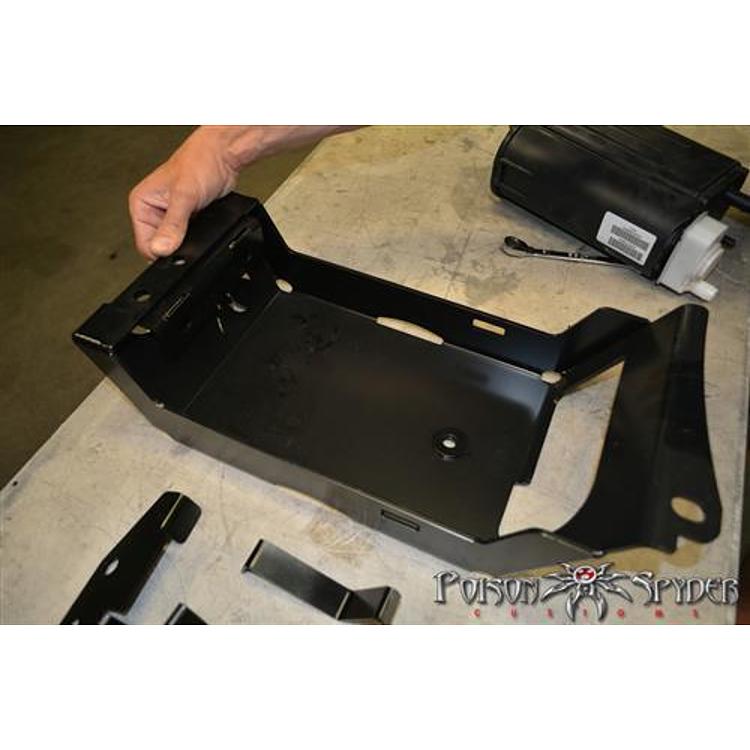

Installation starts by removing the stock EVAP canister mounting bracket. The canister is then secured into the skid with the components and hardware supplied in the kit. Mounting the canister inside the skid is also what raises it for the extra ground clearance.
What’s included

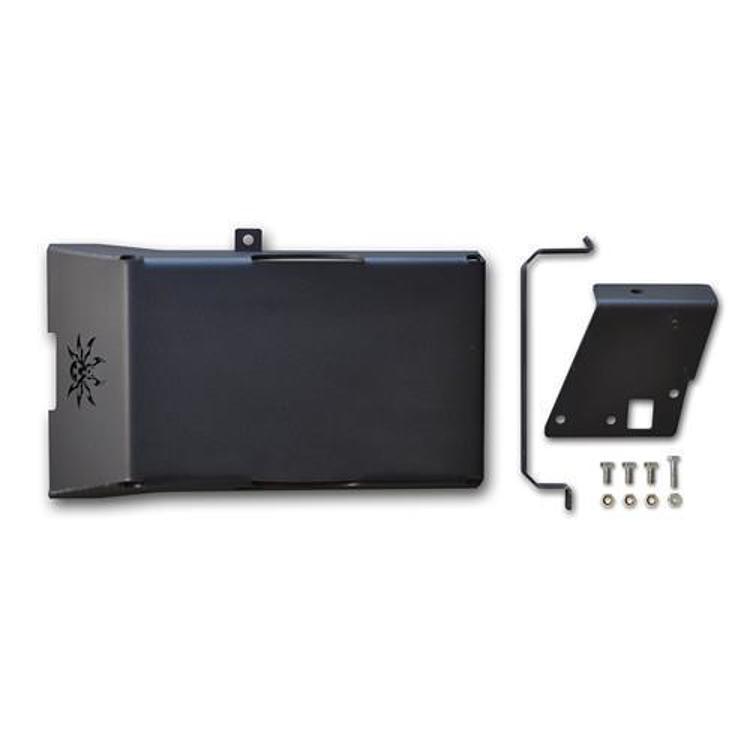

The kit includes the satin black powder coated skid, the components and hardware for securing the canister, and install instructions.
