  • Fits the 2004–2006 Jeep Wrangler LJ and 1997–2006 Wrangler TJ
  • Fold-down carrier, bare steel, holds up to a 40 inch tire
  • Includes a 3-way spare tire strap and mounting tabs

Description

Overview

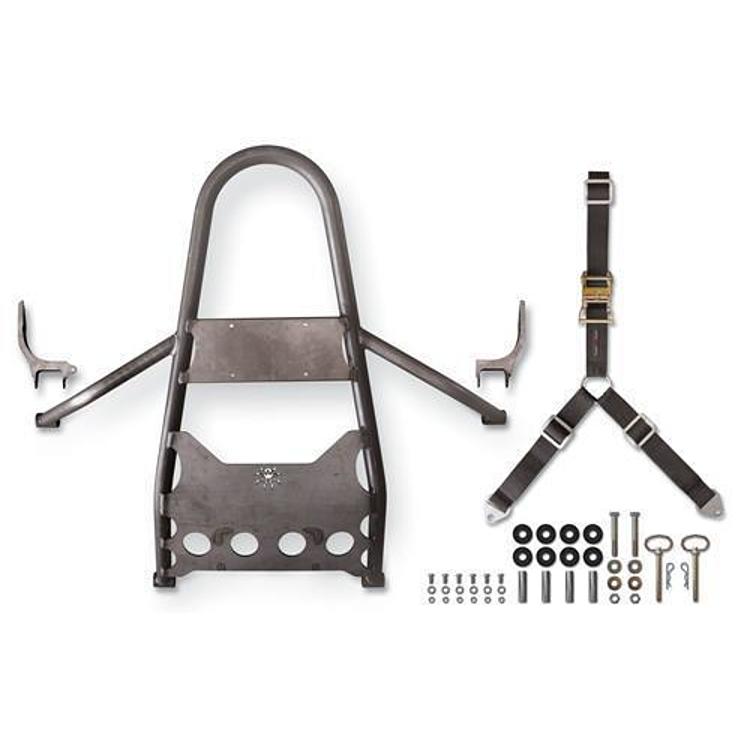

The Poison Spyder DIY Rear Stinger 14-13-010 is a bare-steel fold-down spare tire carrier for the 2004–2006 Jeep Wrangler LJ and the 1997–2006 Jeep Wrangler TJ. It is the Rear Stinger without the Lower Mount Plate, for use with an existing bumper or for adapting to other 4x4s.

Poison Spyder fabricates the main components from NC-bent DOM tubing and CNC laser-cut plate steel, using 3/16 inch steel plate and 1-3/4 inch x.120 wall DOM tubing. Pulling the two upper pins swings the carrier down, so a large tire can be rolled in and held with the included 3-way spare tire strap.

The carrier is built for light weight, high clearance, ease of use and a measure of rear-flop protection, aimed at drivers who spend most of their time on the rocks. The DIY version suits an existing bumper or an adapted install on other 4x4s.

Key features

  • Fold-down spare tire carrier that swings down when the two upper pins are pulled
  • 3/16 inch steel plate and 1-3/4 inch x.120 wall DOM tubing
  • Includes a 3-way spare tire strap
  • Holds up to a 40 inch tire
  • Mounting tabs provided for attaching to your own bumper or mounting plate
  • Bare steel finish

Mounting and loading tips

A fold-down carrier changes how the rear of the Jeep behaves on the trail, so the mounting points deserve close attention. Check that the bumper or mounting plate is solid, that the tabs are square to the mount and that the carrier pivots freely before every trip. Loose pins or binding tabs can cause the tire to shift.

The spare should be inflated and secured with the strap so it does not rattle or swing into the body. Rear-flop protection depends on the rest of the setup, so keep the carrier, bumper and rear body in good condition. Inspect welds and bolts for cracks each season, especially after hard landings.

If the Jeep carries a larger spare or accessories, weigh how the extra load changes the rear suspension and the way the carrier sits. Recheck the mounting hardware after the first few trail runs.

  • Test the pins before each trip
  • Keep the strap snug at all times

Specifications

Brand Poison Spyder Customs
Part number 14-13-010
UPC 614901725674
Product type DIY rear Stinger tire carrier
Material 3/16 inch steel plate; 1-3/4 inch x.120 wall DOM tubing
Finish Bare steel
Maximum tire size 40 inch
Tire carrier Yes
D-ring mount Included
Receiver hitch No
Fit type Direct fit

Vehicle fitment

It fits the 2004–2006 Jeep Wrangler (LJ) and the 1997–2006 Jeep Wrangler (TJ). The upper attachment arms are at the correct width and height for a TJ without a body lift.

Confirm fit for your vehicle’s year, model and trim before ordering, particularly for YJ, JK and JL Wranglers.

Installation notes

This is the DIY version, supplied without the Lower Mount Plate. Mounting tabs are provided so the carrier can be attached to your bumper or mounting plate of choice.

What’s included

One DIY Rear Stinger tire carrier with mounting tabs and a 3-way spare tire strap.

Not included: The Lower Mount Plate, which this DIY part number leaves out.

SKU: PSC14-13-010 Category:

Specification

Shipping weight 110.00 lbs
Package dimensions 48.00 × 48.00 × 28.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ)2004–2006Unlimited, Unlimited Rubicon
Jeep Wrangler (TJ)1997–200665th Anniversary Edition, Rubicon, SE, Sahara, Sport, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What tire size does the Poison Spyder 14-13-010 hold?

It holds up to a 40 inch tire. The included 3-way spare tire strap secures the tire, and pulling the two upper pins swings the carrier down.

What is the difference between the DIY Rear Stinger and the full kit?

The DIY version 14-13-010 comes without the Lower Mount Plate. Poison Spyder supplies mounting tabs so you can attach it to an existing bumper or mounting plate.

Does the 14-13-010 fit a TJ with a body lift?

The upper arms are set for a TJ without a body lift, so a lifted TJ needs a check of the mounting height before installation.

How should I secure the spare on a rear carrier?

Check the strap tension before every trip and after rough driving, since a tire can shift and loosen. Keep the spare inflated and inspect the carrier welds and bolts for cracks each season.
