Poison Spyder D-Ring Shackle Tab – 45-42-010

Poison Spyder Customs

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • D-ring shackle tab in 1 inch thick CNC machined steel
  • Accepts a 3/4 inch D-ring shackle
  • Chamfered edges for weld penetration
  • Requires welding; sold by the piece

Description

Overview

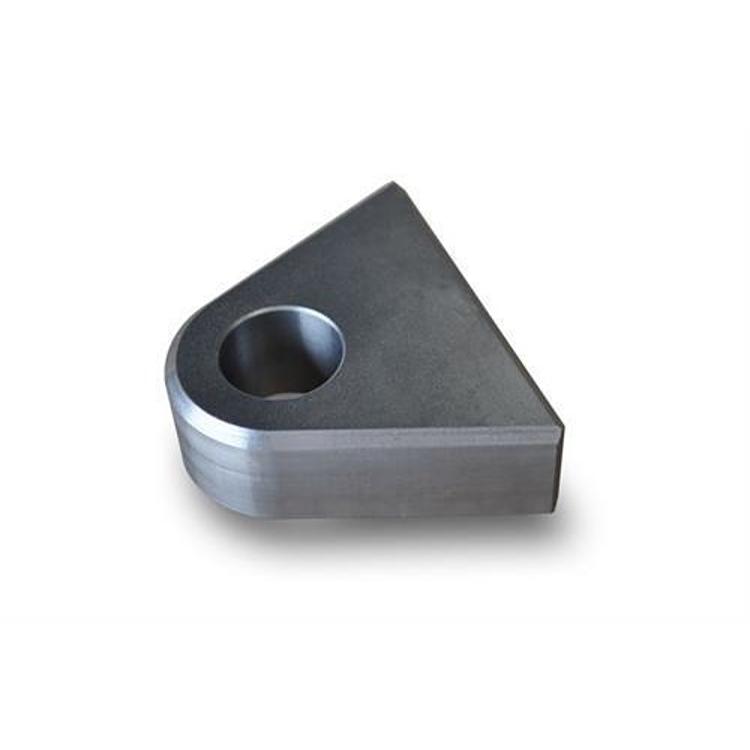

The Poison Spyder D-Ring Shackle Tab (part number 45-42-010) is a CNC machined recovery attachment point made from 1 inch thick bare steel plate. It is designed to be welded to a structural member of a vehicle, which gives fabricators a strong point for a D-ring shackle. The tab is sized to accept a 3/4 inch D-ring shackle.

The chamfered edges are there to aid weld penetration and give the tab a finished look. It is a universal application, so the vehicle depends on where it is welded. Each tab is sold by the piece.

Key features

  • 1 inch thick CNC machined plate steel
  • Chamfered edges for maximum weld penetration
  • Accepts a 3/4 inch D-ring shackle
  • Universal application to any structural member
  • Bare steel

Welding a recovery mount safely

A recovery tab is only as strong as its weld, so the weld quality matters as much as the tab itself. Clean the mounting surface to bare metal, fit the tab square to the structural member, and weld all the way around the edges. Work on a member that can carry recovery loads, and avoid thin panels or sheet metal that can tear under a hard pull.

Heat from welding can distort the surrounding metal, so let the work cool before testing the fit of a shackle. Inspect the weld for cracks, undercut and porosity after the job is complete. A mount welded in a poor location is hard to move later, so plan the position against the vehicle’s frame and recovery needs first.

  • Weld the structural member, not thin panels
  • Clean the mounting surface to bare metal
  • Let the weld cool before loading
  • Inspect for cracks and undercut afterward

Specifications

Brand Poison Spyder Customs
Part number 45-42-010
UPC 614901728811
Type D-ring shackle tab
Material 1 inch thick plate steel
Finish Bare steel
Shackle size 3/4 inch D-ring
Installation type Welding required

Vehicle fitment

The tab is a universal application for welding to a structural member, so the mounting location determines the fit. Choose the mounting point before welding.

Installation notes

Welding is required to attach the tab, so the work should be done by someone qualified to weld the chosen structural member. Plan the mounting location before welding, since the tab is fixed in place once it is welded.

What’s included

One D-ring shackle tab in bare steel, sold by the piece.

Not included: the D-ring shackle, which the tab is sized to accept.

SKU: PSC45-42-010 Category:

Specification

Shipping weight 5.00 lbs
Package dimensions 6.00 × 6.00 × 4.00 in
brands

Questions & Answers

What size D-ring shackle does the tab accept?

The tab is sized to accept a 3/4 inch D-ring shackle. It is CNC machined from 1 inch thick plate steel and has chamfered edges for weld penetration.

Does the shackle tab need welding?

Yes. Welding is required to mount the tab to a structural member of the vehicle, and the chamfered edges help the weld penetrate fully.

Is this tab made for one vehicle?

No. It is a universal application, so the vehicle depends on where the tab is welded. Choose the mounting point carefully before welding.

How do I inspect a welded recovery tab over time?

Look for cracks at the weld edges, bending around the hole and corrosion. Check the shackle pin and clevis for wear. Re-inspect the tab after any hard recovery pull.

How should the shackle match the tab?

Use a shackle sized to fit the 3/4 inch opening and rated for the expected load. Confirm the pin seats fully in the tab. Replace worn shackles rather than forcing them into place.
