Oracle Lighting Universal Illuminated LED “R” Letter Badge (Matte Black) – 3141-R-001

Oracle Lighting

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Universal illuminated LED “R” letter badge in matte black
  • Soft edge glow and under 0.1 amp per letter
  • Roughly 3.75 inches wide, 1.4 inches tall, 0.5 inch thick
  • VHB adhesive mounting with a 12V source

Description

Overview

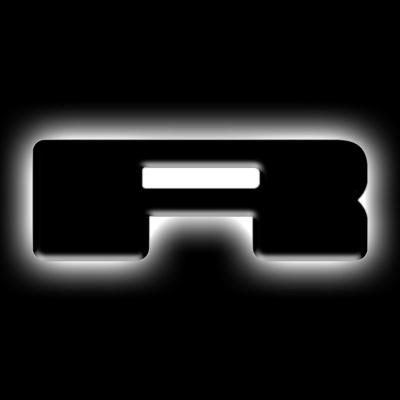

The Oracle Lighting Universal Illuminated LED “R” Letter Badge (matte black, part 3141-R-001) is one letter in a line of illuminated letters for custom vehicle badges. Oracle designed the individual letter to give an edge-lit glow that makes the badge stand out at night, and the letter housing keeps a sleek, customized look when the light is off.

The letter is roughly 3.75 inches wide, 1.4 inches tall and 0.5 inch thick, and draws less than 0.1 amp. It is mounted with VHB double-stick adhesive. Oracle recommends its VHB Primer (part 2082-504) for a strong bond, and the wire runs to a 12V source such as the parking lights, an ignition fuse or a separate toggle switch.

Because the R sits in a row with other letters, spacing matters. Dry fit the letter in place first and confirm the wire reaches its 12V source. The letter measures 3.75 inches wide, 1.4 inches tall and 0.5 inch thick, so it sits low on the surface it is mounted to.

Key features

  • Edge-lit glow when on
  • Sleek letter housing when off
  • Less than 0.1 amp per letter

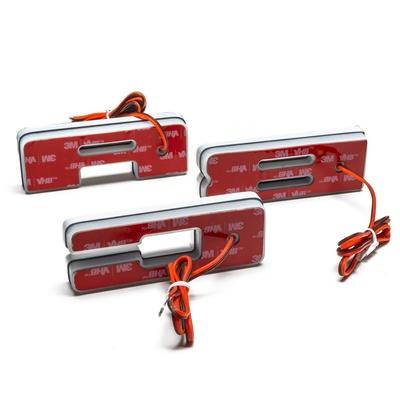

  • VHB double-stick adhesive
  • Wires to a 12V source
  • Matte black finish

Planning a letter layout

Badge letters look best when they are spaced evenly and sit at the same height. Before peeling any adhesive backing, lay the letters out on the surface with painter’s tape and step back to view the spacing from the angle you will normally see it. Small adjustments at this stage prevent crooked placement after the adhesive bonds.

Mounting surfaces need to be clean, dry and free of wax or road film. A light cleaning with a solvent that leaves no residue, followed by the primer step, gives the adhesive a better chance of holding through heat, washing and vibration. Keep the wire route in mind as you plan, because the path from the letter to its power source should avoid moving parts, sharp edges and areas that get wet.

  • Dry fit every letter before mounting
  • Keep the wire clear of moving parts and edges
  • Confirm the 12V source is switched as intended

Specifications

Brand Oracle Lighting
Part number 3141-R-001
Letter R
Finish Matte black
Size Approximately 3.75 in wide, 1.4 in tall, 0.5 in thick
Current Less than 0.1 amp per letter
Voltage 12V
Mounting VHB double-stick adhesive
Primer VHB Primer, Oracle part 2082-504

Vehicle fitment

The R letter is a universal accessory, not a model-specific part, and it fits cars. Confirm the placement and the wire route for your vehicle before attaching the adhesive.

Installation notes

Prepare the mounting surface with Oracle’s VHB primer. Each vehicle’s wire route is different, and a hole may be needed to bring the wire through, so decide that before pressing the letter in place.

What’s included

One illuminated LED letter R in matte black, with its wire and VHB double-stick adhesive.

Questions & Answers

Is the letter R sold by itself?

Yes. Part 3141-R-001 is a single letter R, so a complete badge needs one letter for each character you want to show.

Does the R letter work from the parking lights?

Yes. The letter wires to a 12V source such as the parking lights, an ignition fuse or a separate toggle switch.

How thick is the letter?

The letter is about 0.5 inch thick, roughly 3.75 inches wide and 1.4 inches tall. It mounts with VHB double-stick adhesive and wires to a 12V source.

Can the letter be switched on and off separately?

Yes, if it is wired to a separate toggle switch. Wiring it to the parking lights ties it to those lights instead, so decide on the switching setup before you mount the letter.
