Overview

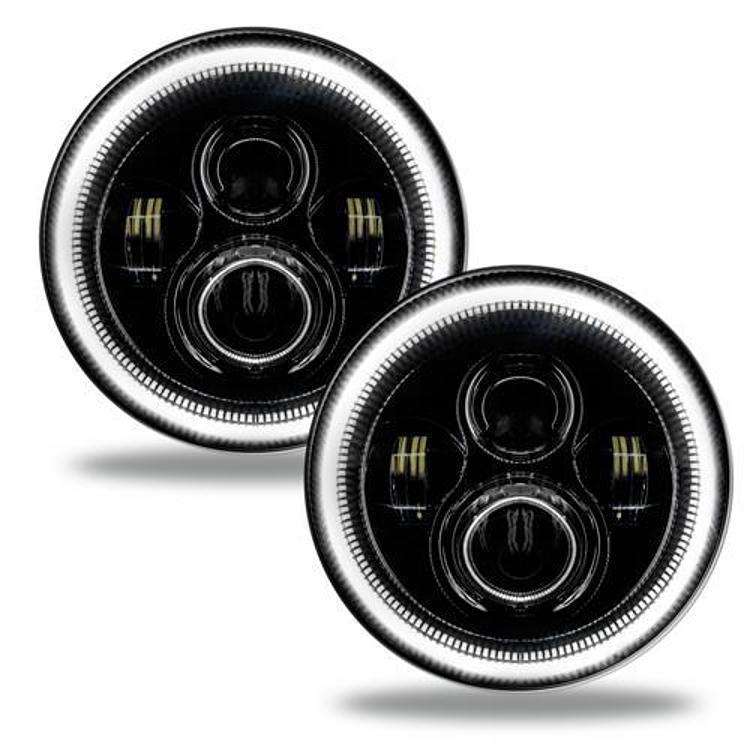

The Oracle Lighting 7 inch High Powered LED Headlight with white halo, part number 5769-001, is a 7 inch round replacement headlight for 7 inch sealed beam openings. It has a black bezel and 6000K cool white light, and it is built for off-road use, buggies and classic vehicles.
The headlight uses high-output CREE LEDs and heavy duty solid state electronics. Its wide beam pattern has a sharp cut-off line, and the die-cast housing has a corrosion resistant coating. It is D.O.T. and SAE certified, and optional Oracle halo rings can be pre-installed. The input is 12-24V DC, with a 2.50 Amps draw at 12V DC.
Key features
- White halo with optional Oracle halo rings pre-installed
- Premium high-output CREE LEDs
- Wide beam pattern with a sharp cut-off line
- Die-cast housing with corrosion resistant coating
- Heavy duty solid state electronics
- Hard-coated polycarbonate lens
- Plug and play installation with H4 and H13 connectors
Matching a sealed beam replacement
Sealed beam conversions depend on the depth and shape of the opening as much as the lamp diameter. Measure the bezel fit, the mounting points and the clearance behind the lens before ordering, since the housing and the body panels set how much room the connectors and driver need. A deep or cramped opening can make the rear connector hard to reach later.
The H4 and H13 connectors need to match the wiring on your vehicle, and the H13 connector may need a warning canceller depending on the vehicle’s system. Check the plug type before cutting or pulling any old wiring. Keep the power feed fused close to the battery and use a relay if the load on the factory switch is a concern.
- Measure the opening depth before ordering
- Check the plug type against the factory connector
- Keep the lens clean and inspect the seal regularly
Specifications
| Brand | Oracle Lighting |
|---|---|
| Part number | 5769-001 |
| UPC | 576900120143 |
| Size | 7 inch round |
| Bezel color | Black |
| Halo color | White |
| Low beam | 30W normal, 36W max; 2200 lumens, 3600 raw lumens |
| High beam | 40W normal, 48W max; 3600 lumens, 4800 raw lumens |
| Color temperature | 6000K cool white |
| Input voltage | 12-24V DC |
| Current draw | 2.50 Amps at 12V DC, 1.30 Amps at 24V DC |
| Warranty | 2 year warranty |
| Certifications | D.O.T. and SAE |
Vehicle fitment
It is a universal fit for 7 inch round sealed beam openings and is not built for one vehicle, so compare the opening and mounting points on your own vehicle first.
No year, make, model or chassis is named for this part. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Plug in the H4 and H13 connectors, then check that the H13 plugs with built-in warning cancelers match your vehicle. Use a fuse and relay sized to the 2.50 Amps draw at 12V DC, and confirm the lighting rules that apply where you drive.
What’s included
The product is supplied as one headlight assembly with a white halo and H4 and H13 connectors.
Not included: Relay, fuse and wiring harness; check what your installation needs before starting.
