Overview

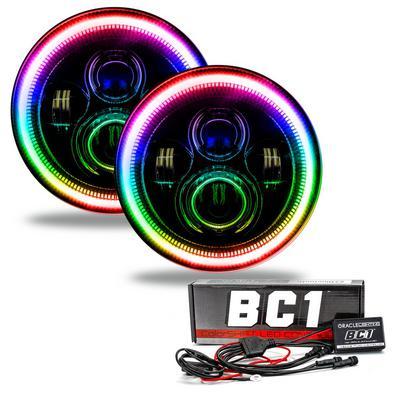

The Oracle Lighting 5769-335 is a 7-inch high powered LED headlight replacement with ColorSHIFT halo options, made for vehicles that use 7-inch sealed beam lamps. It fits the 2007–2018 Jeep Wrangler JK, the 2018–2026 Jeep Wrangler JL and the 2020–2026 Jeep Gladiator JT.
The housing is rugged and suited to Jeep Wrangler owners, off-road vehicles, buggies and classic cars or trucks. Installation is simple with the included connectors, and the set arrives in full color retail packaging.
Key features
- 7-inch LED replacement headlight for sealed beam applications
- Plug and Play H4 and H13 connectors included for installation
- Built rugged for Jeep Wrangler and off-road driving
- Optional colored halos for added customization
- Full color retail-ready packaging
- 2-year free replacement warranty from Oracle Lighting
Before you swap headlights
A sealed beam style replacement is a straightforward swap, but the beam still needs to land where the old one did. Once the new lamps are in, check that the housings are seated and the retaining hardware is snug, then set the aim on level ground with the tires at normal pressure.
Lights with colored halos add a visual layer, and the halo should be treated as an extra circuit that shares the headlight wiring. Keep that wiring routed away from heat and moving parts, and leave slack at the connector so suspension movement does not pull on it.
- Confirm the lamp format matches your housing before starting
- Seat each lamp fully and check the retaining clips
- Aim on level ground after the first few drives
- Keep halo wiring separate from the headlight plugs
Specifications
| Brand | Oracle Lighting |
|---|---|
| Part number | 5769-335 |
| Headlight size | 7-inch |
| Lamp type | LED, sealed beam replacement |
| Included connectors | H4 and H13 Plug and Play |
| Halo option | ColorSHIFT (BC1) |
| Warranty | 2-year free replacement |

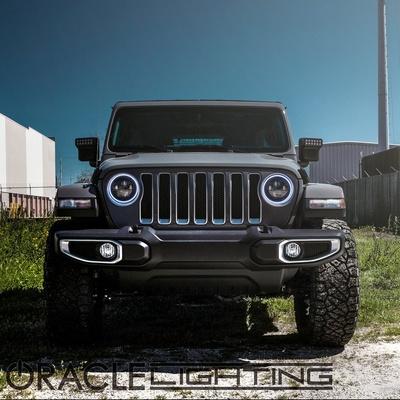

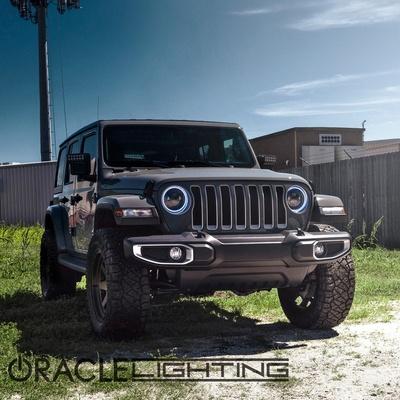

Vehicle fitment
It fits the 2007–2018 Jeep Wrangler (JK), the 2018–2026 Jeep Wrangler (JL) and the 2020–2026 Jeep Gladiator (JT), with two-door and four-door Unlimited trims covered. Older Wrangler generations such as the YJ, TJ and LJ are not covered.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The included H4 and H13 Plug and Play connectors are used for installation. Disconnect the battery before working on the headlight wiring.
What’s included
A set of 7-inch LED headlights with H4 and H13 Plug and Play connectors, in retail-ready packaging.
Not included: Colored halos are an optional upgrade and are not included in the set.
