Oracle Lighting 7″ High Powered LED Headlights (ColorSHIFT WIFI) – 5769-331

Oracle Lighting

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Oracle Lighting 7 inch High Powered LED headlight with ColorSHIFT WIFI halo, part number 5769-331
  • Universal fit for 7 inch round sealed beam openings, with no specific vehicle
  • Low beam 2200 lumens and high beam 3600 lumens, 6000K output
  • DOT and SAE certified, supplied as a pair

Description

Overview

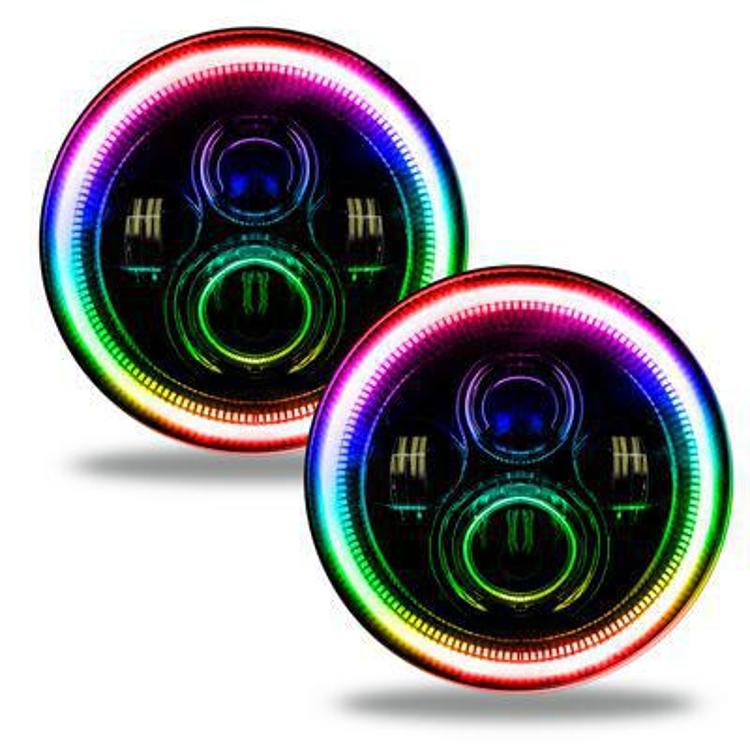

The Oracle Lighting 7 inch High Powered LED Headlight with ColorSHIFT WIFI halo, part number 5769-331, is a 7 inch round LED headlight assembly with a black bezel. It replaces 7 inch sealed beam lamps and puts out 6000K cool white light.

The headlight combines high-output CREE LEDs with heavy duty solid state electronics. Its wide beam pattern has a sharp cut-off line, and the die-cast housing has a corrosion resistant coating. The halo rings are optional and pre-installed, and the kit is DOT and SAE certified. The lamp is built for off-road use, buggies and classic vehicles.

Key features

  • ColorSHIFT WIFI halo with optional halo rings pre-installed
  • Premium high-output CREE LEDs
  • Wide beam pattern with a sharp cut-off line
  • Die-cast housing with corrosion resistant coating
  • Heavy duty solid state electronics
  • Hard-coated polycarbonate lens
  • Plug and play connectors for H4 and H13 installation
  • H13 plugs with built-in warning cancelers included

Halo rings and sealed beam fit

Halo rings add a separate lighting circuit to the headlight, so the wiring needs more planning than a plain lamp. Route the halo supply on its own switched feed where possible, and keep the connectors dry. If the halo option is not fitted, the lamp still works on its own, so the halo wiring can be left unconnected.

Sealed beam openings differ between vehicles, so check the lamp for depth, clearance and mounting points before final assembly. A wide beam with a sharp cut-off changes how the light falls on the road, so aim the lamps on level ground after installing. Clean the lens regularly to keep output even, and inspect the seal after off-road use.

  • Use a fuse and relay sized to the draw
  • Check halo wiring before final assembly
  • Aim each lamp on level ground
  • Inspect the seal after rough terrain

Specifications

Brand Oracle Lighting
Part number 5769-331
UPC 576933120158
Size 7 inch round
Bezel color Black
Low beam 30W normal, 36W max; 2200 lumens, 3600 raw lumens
High beam 40W normal, 48W max; 3600 lumens, 4800 raw lumens
Color temperature 6000K cool white
Input voltage 12-24V DC
Halo input 12V DC, if included
Current draw 2.50 Amps at 12V DC, 1.30 Amps at 24V DC
Warranty 2 year replacement warranty
Certifications D.O.T. and SAE
Quantity Supplied as a pair

Vehicle fitment

The headlight fits 7 inch round sealed beam openings and is not built for one vehicle. Check the headlight opening, mounting points and clearance on your own vehicle before installation.

No year, make, model or chassis is named for this part. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Size the fuse and relay for the 2.50 Amps at 12V DC draw of this headlight, and check the road-use rules where you drive before running the lights on public roads.

What’s included

The kit includes a pair of headlights with H13 plugs that have built-in warning cancelers.

Not included: A relay, fuse and wiring harness are not included.

SKU: ORC5769-331 Category:

Specification

Shipping weight 7.00 lbs
Package dimensions 24.00 × 10.00 × 6.00 in
brands

Questions & Answers

Is the Oracle Lighting 5769-331 a universal fit headlight?

Yes. It fits 7 inch round sealed beam openings and is not built for one vehicle. Measure your existing headlight opening and mounting points before installing, and confirm your vehicle's year, model and trim before ordering.

What is the lumen output of the 5769-331?

The low beam is 2200 lumens and the high beam is 3600 lumens, with raw lumen figures of 3600 and 4800. The output is 6000K cool white on 12-24V DC input.

Are H13 warning cancelers included?

Yes. The kit includes H13 plugs with built-in warning cancelers at no extra cost. The headlights also use H4 and H13 plug and play connectors.

Does the halo come pre-installed?

Optional halo rings can come pre-installed. The halo input is 12V DC if included, so confirm the halo option on your unit before wiring.

Do halo rings draw extra current?

Yes. Halo rings add their own load on the halo input. Size the wiring for the combined draw of the lamp and the halo, and keep the halo on a separate switched feed where possible so the main beam is not affected.
