Overview

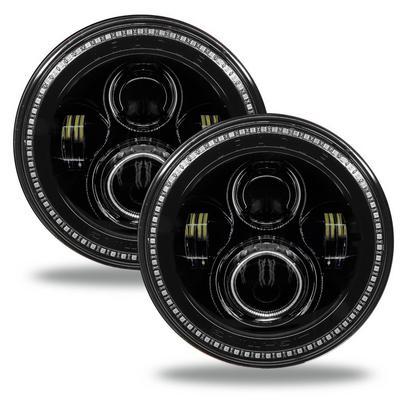

The Oracle Lighting 5769J-332 is a 7-inch high-performance LED headlight kit with Dynamic ColorSHIFT halos, made for the Jeep Wrangler JL and Gladiator JT. The complete plug-and-play package is designed to be added without fabrication or cutting factory wiring, and it includes vertical and horizontal headlight adjustment.

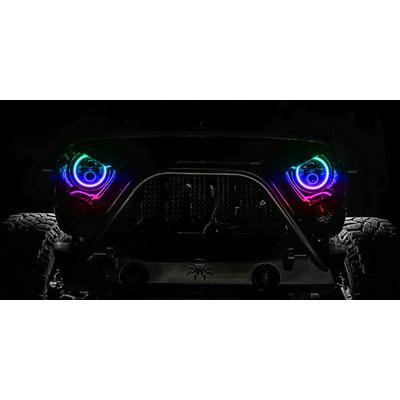

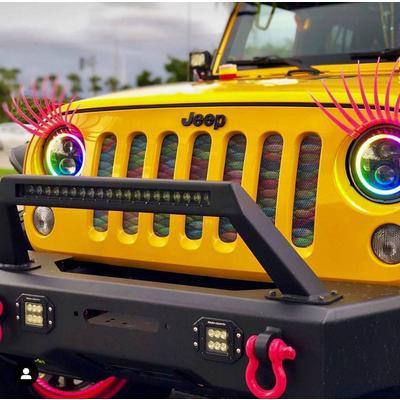

The Dynamic halos use individually addressable LEDs, so the app can run multiple moving color patterns as well as static colors. The kit fits specific JL and Gladiator trims, covered in the fitment section below.
Key features
- Complete plug-and-play package with no fabrication or cutting of factory wiring described

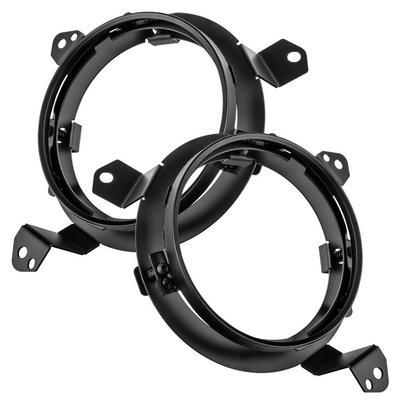

- Vertical and horizontal headlight adjustment

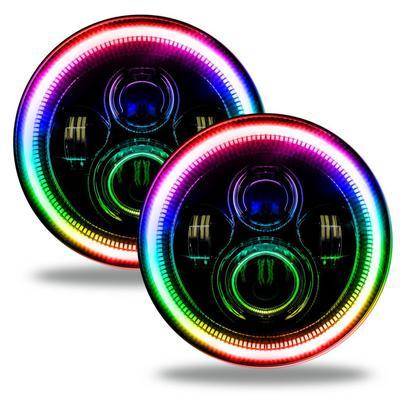

- Individually addressable Dynamic ColorSHIFT halo LEDs
- Over 200 moving and static patterns controlled through the app
- Constant current LED driver added to the main circuit board for brightness and reliability
- Conditioned power to the LEDs to help prevent degradation
- Halo LEDs operate on a 12V to 24V input range
- Philips Luxeon ZES LED chips with 130LM/W efficacy and lower thermal output
Halo control and wiring

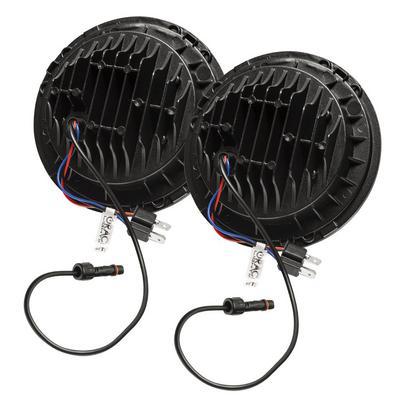

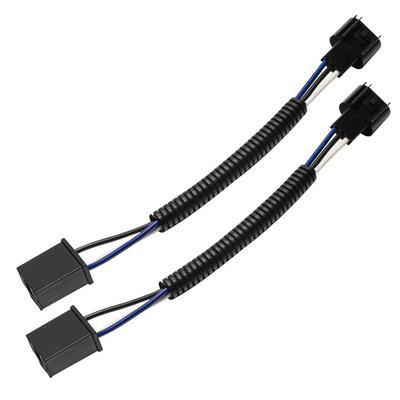

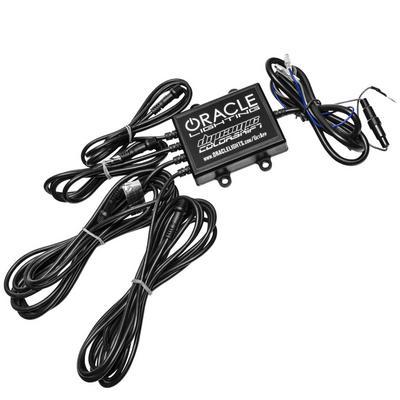

Halo lighting is driven by the controller and the wire harness, so the vehicle’s electrical system needs to be stable before a halo kit is installed. Clean battery terminals and a secure ground make a noticeable difference to LED brightness and pattern consistency. Route the halo wiring away from moving parts and hot exhaust components, and secure it with clips so it does not rub.
Color patterns take a little practice. Start with a static color to confirm each halo lights evenly, then try moving patterns once the setup is stable. If a halo flickers, check the connections at the lamp before assuming the kit has failed. On a trail rig, vibration is the usual cause of loose plugs.
- Check ground connections before and after installation
- Route halo wires with clips away from heat
- Re-seat plugs after rough off-road runs
- Test each halo with a static color first
Specifications
| Brand | Oracle Lighting |
|---|---|
| Part number | 5769J-332 |

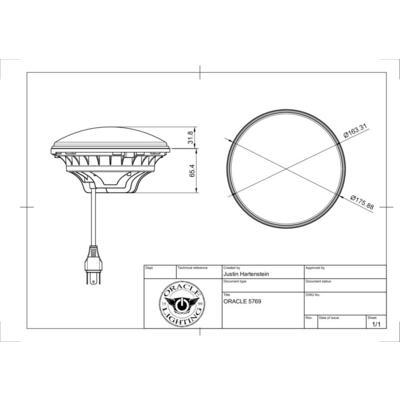

| Headlight size | 7-inch |
| Lamp type | Solid-state LED |
| Halo type | Dynamic ColorSHIFT, individually addressable |
| Halo control | Through the app, over 200 patterns plus static colors |
| Halo input voltage | 12V to 24V |
| LED chip | Philips Luxeon ZES |
| Efficacy | 130LM/W |
| Adjustment | Vertical and horizontal |
Vehicle fitment

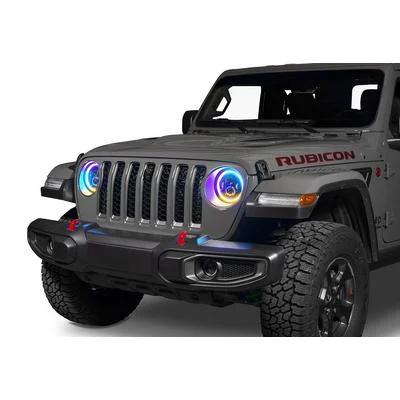

The fitment covers the 2020–2021 Jeep Gladiator Overland and the four-door Unlimited trims of the 2018–2021 Jeep Wrangler JL: Rubicon, Sahara, Sport and Sport S. Other JL and Gladiator trims are not covered by this kit.
Two-door Wrangler JL trims and other Gladiator trims are not in this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Halo colors and patterns are set through the app rather than by changing the wiring. Unplug the battery before you start on the lamp wiring.
What’s included
The complete plug-and-play headlight package with Dynamic ColorSHIFT halos.
Not included: Check the package contents against your installation before starting, and confirm any app hardware you need before ordering.
