Overview

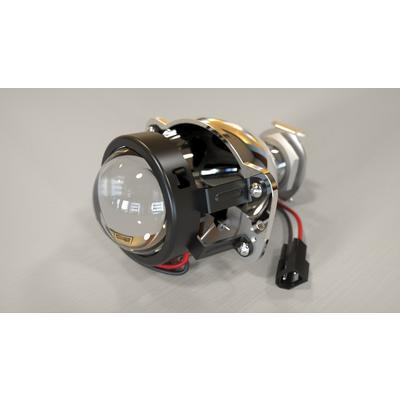

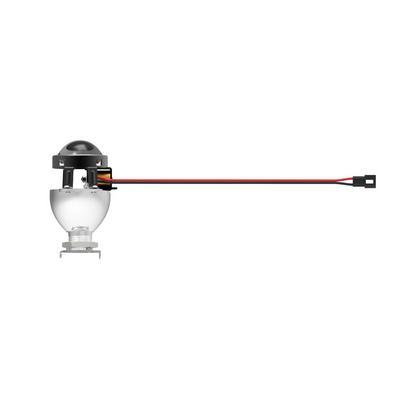

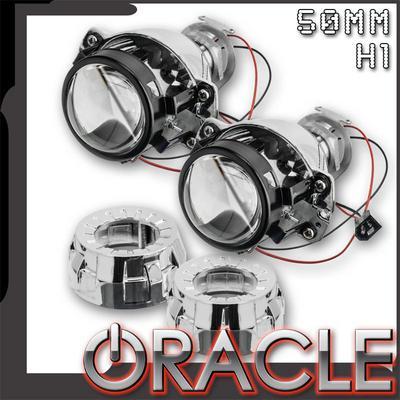

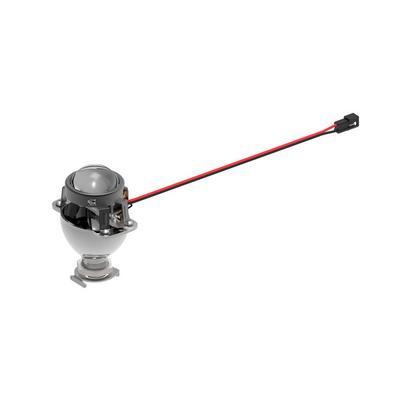

The Oracle Lighting 8530-504 is a 50mm H1 7.1 retrofit projector. It fits into the existing hole at the back of a reflector bucket with little to no modification. It is designed for a sharp cutoff line with minimal glare. It is universal fit.
Key features
- Retrofit design for an existing reflector bucket hole
- 50mm H1 7.1 projector
- Sharp cutoff line
- Little to no bucket modification needed
Cutoff and beam pattern
A projector’s sharp cutoff depends on the bucket it sits in as much as on the projector itself. Clean the reflector and check that the bucket is sound before fitting, since cracks or sagging can shift the beam pattern. After installation, aim the light on level ground and check the cutoff line against a wall, because even small misalignments change where the beam falls.
Projectors run hot near the rear of the housing, so keep the wiring and seal intact and leave room for air to circulate. Moisture that gets past a worn seal can fog the lens or corrode the connector, so inspect the seal each season. Replace a dim or unevenly lit projector rather than trying to repair the lens.
- Inspect the bucket for cracks before fitting
- Aim on level ground against a wall
- Check the rear seal for moisture each season

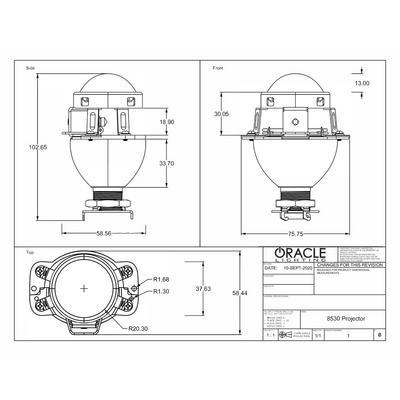

Specifications
| Brand | Oracle Lighting |
|---|---|
| Part number | 8530-504 |
| Projector type | 50mm H1 7.1 retrofit |
| Mounting | Pre-existing hole in the back of the reflector bucket |
Vehicle fitment
Fit depends on whether your reflector bucket has the existing hole the projector sits in, not on the vehicle.
No vehicle list is attached to this projector.
Installation notes
Because the projector relies on an existing rear hole, confirm the reflector bucket has that hole before starting the job.
What’s included
Contents: the 50mm H1 7.1 retrofit projector. Check the package contents against your installation before starting.
