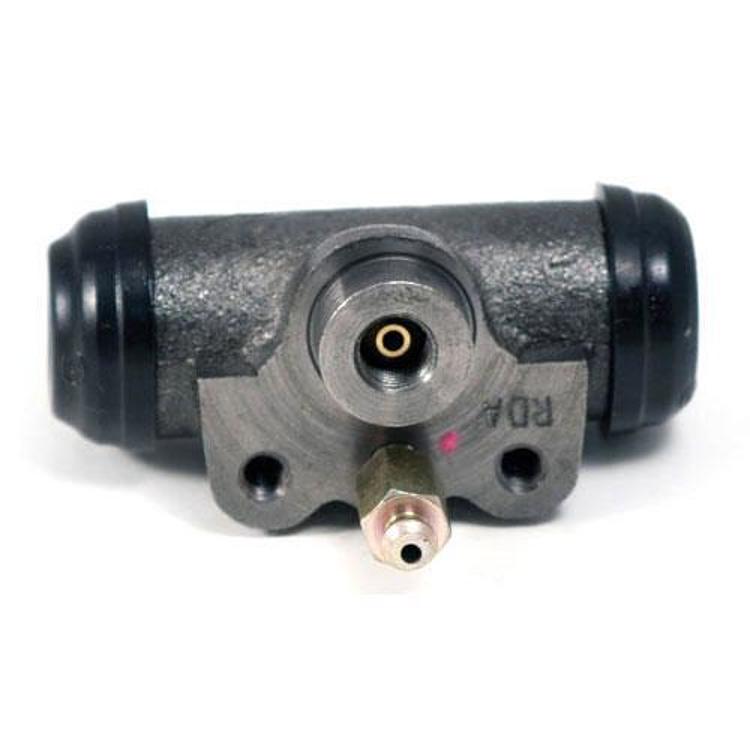

Omix-ADA Rear Wheel Cylinder – 16723.03

Omix-Ada

$27.99Usually ships within 2 to 3 days
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 6:30 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear wheel cylinder for 9 inch brakes, driver or passenger side
  • Fits 1959–1960 and 1966 CJ3, CJ5, CJ6 and early Willys CJ models
  • Direct OE replacement

Description

Overview

The Omix-ADA 16723.03 is a rear wheel cylinder for 9 inch brakes, usable on the driver or passenger side. It fits the 1959–1960 and 1966 CJ3, CJ5 and CJ6 and the Willys CJ-3, CJ-5 and CJ-6.

It is built as a direct OE replacement to the original specifications.

Key features

  • Rear wheel cylinder
  • For 9 inch brakes
  • Driver or passenger side
  • Direct OE replacement

Before you buy

Drum brake wheel cylinders push the shoes outward against the drum each time the pedal is pressed, so a leaking or sticking cylinder shows up as a soft pedal, a pull to one side, or fluid around the backing plate. On older CJ models the rear drums often carry years of grit and heat, which is why many owners inspect the drum, shoes and adjuster at the same time. Check the boot and bore for pitting, and look for brake fluid on the inside of the shoes.

When choosing a cylinder, measure the drum before anything else, since the brake size decides the bore and fit. Brake fluid should be fresh and matched to the system, and bleeding the lines after replacement removes trapped air. Many people replace the brake shoes and the hardware kit at the same time, because worn shoes wear the new cylinder piston faster. Keep the cylinder dry and re-check the bleeder valve after the first few drives.

Specifications

Brand Omix-Ada
Part number 16723.03
UPC 804314042936
Product type Drum brake wheel cylinder
Position Rear
Brake size 9 inch
Side Driver or passenger
Fit type Direct fit
Warranty Limited five years

Vehicle fitment

It fits the 1959–1960 and 1966 CJ3, CJ5 and CJ6, the 1950–1958 Willys CJ-3, the 1955–1958 Willys CJ-5 and the 1956–1958 Willys CJ-6.

Other years between 1961 and 1965 are not on the list. Confirm your vehicle’s year, model and trim before ordering.

SKU: OAI16723.03 Category:

Specification

Shipping weight 0.72 lbs
Package dimensions 15.00 × 9.00 × 4.00 in
brands

Fitment

VehicleYearsTrims
Jeep CJ31959–1960, 1966Base
Jeep CJ51959–1960, 1966Base
Jeep CJ61959–1960, 1966Base
Jeep Willys CJ-31950–1958All
Jeep Willys CJ-51955–1958All
Jeep Willys CJ-61956–1958All

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What brakes does the Omix-ADA 16723.03 fit?

It fits 9 inch rear brakes, so check your drum size before choosing this wheel cylinder. Other CJ brakes used a different drum size, so the measurement matters.

Which side is the 16723.03 for?

Either the driver or passenger side. It is a rear wheel cylinder that works on either rear wheel, so the side you choose must match the wheel being serviced. Confirm the side before ordering.

Which years does the 16723.03 cover?

Omix-ADA lists 1959–1960 and 1966 for the CJ3, CJ5 and CJ6, and the early Willys CJ-3, CJ-5 and CJ-6 for the years in its list.

Is the 16723.03 a front cylinder?

No. It is a rear wheel cylinder, so the front brakes need one of Omix-ADA's front wheel cylinder part numbers.

How can I tell if the rear wheel cylinder needs replacing?

Look for fluid on the inside of the brake shoes, a spongy pedal, or a drum that will not stay adjusted. Any of these signs means the cylinder should be inspected, and most owners replace it along with the shoes when it leaks.

Should I replace both rear cylinders at once?

Replacing both is a sensible step when one has failed, because the other has seen the same age and fluid. Rebuilding one side only can leave uneven braking, so inspect both before reassembling the axle.
